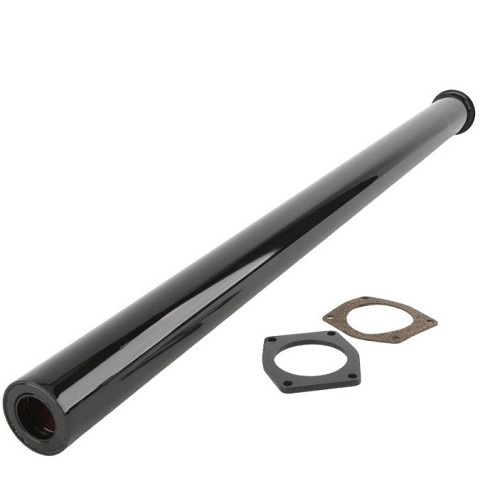

510020 US Automatic Patriot Actuator Stainless Steel Cover Tube Assembly
The US Automatic 510020 is the stainless steel outer cover tube used on select Patriot linear actuator arms. This tube forms the protective sleeve around the internal drive components, especially the acme screw assembly. In outdoor gate installations, the actuator is exposed to rain, irrigation, dust, insects, dirt, and vibration. A damaged or missing cover tube can allow contamination into the drive area, which can lead to binding, corrosion, noisy operation, or premature actuator wear. Technicians typically look at this part when an actuator has been struck, dented, dragged against the gate, exposed to corrosion, or serviced after internal contamination. Because the cover tube has to fit the actuator body correctly and maintain proper clearance, it should be replaced with the correct Patriot part rather than a generic sleeve.
Compatible With
This compatibility list is based on known US Automatic Patriot service-part usage and should be verified against the original operator label, actuator parts diagram, and existing part number before ordering.
- US Automatic Patriot swing gate linear actuator arms
- Patriot heavy-duty swing gate openers using the original US Automatic actuator assembly
- Patriot single swing gate installations where the actuator parts diagram calls for this service part
- Patriot dual swing gate systems when each actuator uses the same matching service component
- Select older Patriot actuator assemblies when confirmed by the original part number and parts diagram
Also Known As / Related Part Numbers
- 510020
- US-510020
- USA 510020
- Patriot stainless steel cover tube
- Patriot actuator cover tube
- Patriot actuator outer tube
- stainless cover tube assembly
- 510010 related acme screw assembly
- 510100 related gear box inner gasket
- 510101 related rear cover gasket
Features & Specifications
| Manufacturer | US Automatic |
|---|
| Product Type | Patriot actuator stainless steel cover tube |
|---|
| Part Number | 510020 |
|---|
| Application | Outer protective sleeve for Patriot actuator acme screw assembly |
|---|
| Compatible Operator Type | US Automatic Patriot swing gate linear actuator |
|---|
| Material / Finish | Stainless steel |
|---|
| Included Components | Cover tube assembly only unless listing states otherwise |
|---|
| Notes | Protects internal acme screw and actuator drive parts |
|---|
Technician Note
A dented cover tube can create actuator drag even if the motor and screw are still good. If the gate moves unevenly after impact damage, inspect tube straightness, screw condition, and bracket alignment before replacing electrical parts.
Before Ordering Checklist
- Confirm the actuator is a US Automatic Patriot swing actuator.
- Check whether the tube is bent, dented, cracked, or corroded.
- Inspect the acme screw for contamination or scoring before installing the new tube.
- Replace damaged gaskets if the old tube allowed water or dirt into the actuator.
- Verify bracket alignment and gate movement so the new cover is not damaged again.
Professional Advisory
Internal actuator service can affect gate travel, limit adjustment, and safe stopping behavior. Disconnect power before service and have a qualified gate technician handle repairs if the actuator binds, the gate moves unexpectedly, or electrical damage is present.
Product Questions & Answers
What does the 510020 cover tube protect?
It protects the internal acme screw assembly and actuator drive components from dirt, moisture, debris, and physical exposure.
Is this part made from stainless steel?
Yes. It is commonly listed as the stainless steel cover tube assembly for Patriot linear actuators.
Will this fix an actuator that does not move?
Only if the old cover tube was causing binding or contamination. Motor, screw, limit, wiring, and control-board problems should also be checked.
Is 510020 used on Ranger actuators?
This listing is written for US Automatic Patriot linear actuator applications. Ranger and Ranger HD parts should be checked separately.
Should the gaskets be replaced with the cover tube?
If the gaskets are worn, torn, flattened, or leaking, replacing the related gaskets is recommended during actuator service.
