620011 US Automatic Manual Release Clip for Gate Operators

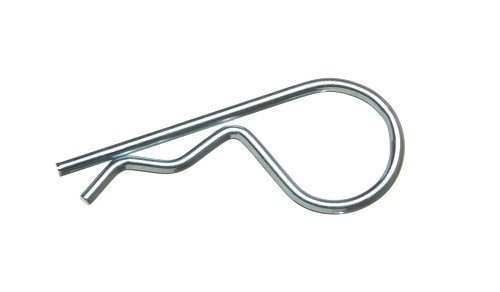

The US Automatic 620011 manual release clip is a small retaining clip used to hold manual-release pin hardware in place on US Automatic gate operator actuator assemblies. It is one of those parts that can be lost during service, dropped during emergency manual release, or weakened after years of outdoor exposure. Without a properly fitted retaining clip, the release pin may not stay secure through gate vibration and normal movement. Although this clip is commonly described for all US Automatic operators, the actual use depends on the specific manual release pin and bracket hardware on the installation. It is most often purchased as a service item for Patriot, Ranger HD, Ranger 500, and related US Automatic swing systems when the original retaining clip is missing or damaged.
Compatible With
- Commonly listed for US Automatic gate operators using compatible manual release pin hardware
- Select Patriot swing gate operator release-pin assemblies
- Select Ranger HD swing gate operator release-pin assemblies
- Select Ranger 500 swing gate operator release-pin assemblies
- Service replacement for lost, bent, or corroded manual release retaining clips
- Use only where the original pin and release hardware accept this clip style
Features and Specifications
| Manufacturer | US Automatic |
|---|
| Product Type | Manual release retaining clip |
|---|
| Part Number | 620011 |
|---|
| Application | Retains manual release pin hardware |
|---|
| Compatible Operator Type | Select US Automatic gate operators with matching release pin hardware |
|---|
| Material / Finish | Metal clip; finish may vary |
|---|
| Included Components | One release clip |
|---|
| Notes | Often replaced when missing or weakened |
|---|
Also Known As / Related Part Numbers
- 620011
- US-620011
- USA-620011
- Manual release clip
- Quick release clip
- Release pin retaining clip
- Patriot release clip
- Ranger HD release clip
- Ranger 500 release clip
- Related service item: 620010 lockable manual release pin
- Related service item: 610534 Ranger 500 manual release pin
Technician Note
Replace worn hardware with the correct US Automatic part number rather than substituting a similar-looking washer, pin, spring, or bracket. Small differences in thickness, material, or geometry can affect actuator alignment and gate travel.
Before Ordering Checklist
- Confirm the US Automatic part number on the original part, manual, or parts diagram
- Verify the operator family and generation before ordering
- Compare washer thickness, bushing style, pin style, spring length, or bracket package to the original part
- Inspect related pivot hardware, clips, brackets, bushings, and actuator mounting points for wear
- For dual-gate systems, check whether one or both actuator sides need the same service part
Professional Advisory
Gate hardware should be serviced with the gate secured and power removed where appropriate. If the gate is binding, moving unpredictably, or missing required monitored safety devices, have the system inspected by a qualified gate technician.
Important Ordering Warnings
A retaining clip should hold the release pin securely without forcing or modifying the pin. If the pin, bracket, or hole is worn, inspect the complete release assembly.
Product Questions and Answers
What is US Automatic 620011 used for?
US Automatic 620011 is used for retains manual release pin hardware on select us automatic gate operators with matching release pin hardware. It should be matched to the operator parts diagram before replacement.
Is 620011 interchangeable with similar US Automatic parts?
Not automatically. Similar US Automatic parts can differ by generation, thickness, voltage, operator family, or mounting style. Use the original part number and operator model to confirm fitment.
What should I check before ordering 620011?
Check the operator model, actuator or cabinet style, original part number, hardware thickness or dimensions, and any related bracket, bushing, pin, or clip that may also be worn.
Can this part fix a gate that is binding or not moving correctly?
It can help if the original part is worn or missing, but binding can also come from gate hinges, brackets, actuator alignment, limit settings, wiring, or other mechanical problems.
Should a technician install this US Automatic part?
Small hardware items are often straightforward for experienced installers, but a qualified gate technician is recommended if the gate is heavy, binding, unsafe, electrically damaged, or missing required safety devices.
