HySecurity MX000691, MOTOR BRUSH & SPRING KIT SCOTT

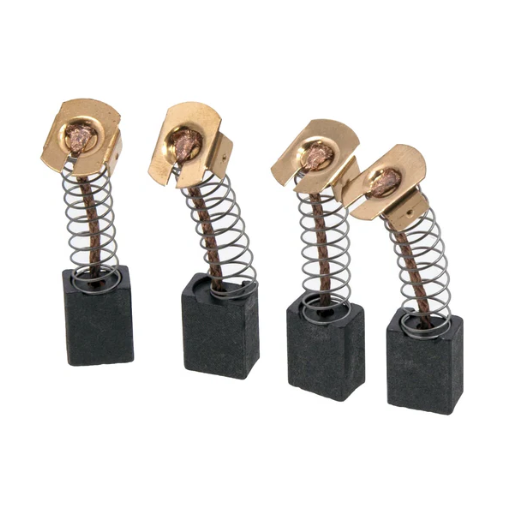

HySecurity MX000691 is a motor brush and spring kit commonly described as a set of four carbon brushes and four springs for select 2HP DC motors used in HySecurity gate operators. Motor brushes maintain electrical contact with the commutator inside a brushed DC motor. When brushes wear down, the operator may lose torque, arc excessively, run intermittently, trip protection, or fail to start consistently. This kit is a maintenance and repair part for compatible brushed DC motors; it is not used on every HySecurity motor. Verify the motor horsepower, motor type, and parts diagram before ordering. If a motor has commutator damage, bearing noise, overheating, or winding faults, brushes alone may not restore reliable operation.
Compatible With
- Select HySecurity 2HP DC motors where MX000691 is specified
- HySecurity commercial or industrial DC gate operator motor service where the motor uses replaceable brush sets
- Preventive maintenance for compatible brushed DC motors
- Applications requiring four brushes and springs as a matched service set
Features and Specifications
| Manufacturer | HySecurity / Nice |
|---|
| Part Number | MX000691 |
|---|
| Product Type | Motor brush and spring kit |
|---|
| Motor Type | Brushed DC motor |
|---|
| Motor Reference | 2HP DC motor applications where specified |
|---|
| Included Components | Four brushes and four springs commonly referenced |
|---|
| Notes | Not for brushless, AC, or different horsepower motors unless verified |
|---|
Also Known As / Related Part Numbers
- MX000691
- Motor brush and spring kit Scott
- Brushes and springs kit
- 2HP DC motor brush kit
- Carbon brush kit
Technician Note
Inspect brush length, spring tension, commutator condition, brush holders, and motor leads. Heavy arcing or uneven brush wear can indicate a motor problem beyond normal brush replacement.
Before Ordering Checklist
- Confirm the motor is a compatible 2HP brushed DC motor
- Inspect the commutator before installing new brushes
- Replace brushes as a matched set
- Check brush holder condition and spring pressure
- Test motor current draw after service
Professional Advisory
Motor service should be performed with all power disconnected. Do not service DC motor components while the operator is energized.
Important Ordering Warning
MX000691 is not a universal HySecurity motor repair kit. Match it to the exact motor and operator parts diagram.
Product Questions and Answers
What is HySecurity MX000691 used for?
HySecurity MX000691 is used as a replacement motor brush and spring kit in select HySecurity 2HP DC motor applications. Match it to the original part number and the operator parts diagram before ordering.
How do I confirm MX000691 is the correct part?
Compare the part number on the existing component, the operator model, the control system generation, and the physical or electrical specifications shown in the parts diagram.
How many brushes are commonly included?
Current references commonly describe MX000691 as including four carbon brushes and four springs.
Will new brushes fix every motor problem?
No. If the commutator, bearings, windings, or wiring are damaged, the motor may need additional repair or replacement.
Should a technician install MX000691?
A qualified gate technician is recommended whenever the repair involves electrical wiring, stored energy, moving gate hardware, hydraulic components, or safety-related operation.
