HySecurity MX001105-P, PIVOT PIN & HARDWARE, MOTOR MO

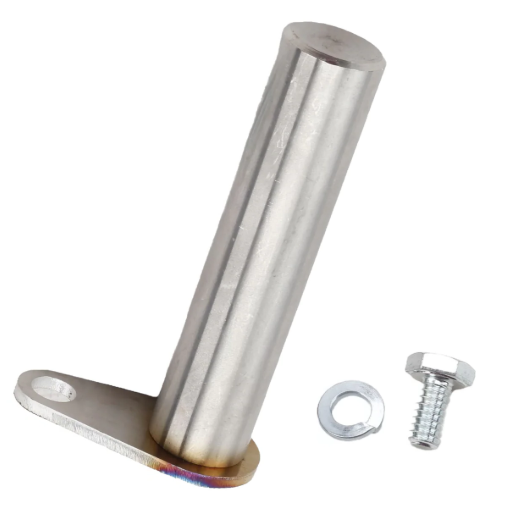

HySecurity MX001105-P is a pivot pin and hardware kit for select HySecurity drive arm assemblies. The pivot pin supports the movement point in the drive arm hardware and helps maintain the correct mechanical relationship between the operator drive assembly and the gate drive components.
This type of hardware is small compared with motors, controllers, and hydraulic assemblies, but it has a direct effect on alignment and wear. A worn, loose, missing, or wrong pivot pin can allow excess movement, create noise, accelerate wear in the drive arm, and make the operator feel uneven under load.
Use this part only where the parts diagram confirms the MX001105 or MX001105-P drive arm pivot kit. Similar pins can differ in diameter, length, shoulder, finish, and retaining hardware, and those differences can affect drive arm movement.
Common replacement reasons may include loose drive arm movement, missing pivot hardware, excessive play at the drive arm, uneven movement, mechanical noise at the pivot point, or damaged retaining hardware. Always diagnose the complete operator before replacing parts, because a failed mating component, incorrect wiring, hydraulic load, or damaged hardware can cause similar symptoms.
Compatible With
- Select HySecurity operator drive arm assemblies where the parts diagram calls for MX001105-P or MX001105.
- Commonly associated with HySecurity SlideDriver drive arm pivot service when the installed drive arm layout matches the diagram.
- Use for one drive arm only when the kit quantity and parts diagram support that application.
- Not a substitute for drive wheels, drive rails, motor couplers, pump packs, crankshaft assemblies, bearings, or complete drive arms.
- Verify fitment by operator model, drive arm generation, hardware dimensions, and parts diagram before ordering.
Features & Specifications
| Feature | Specification |
|---|
| Manufacturer | HySecurity / Nice HySecurity |
| Product Type | Pivot pin and hardware kit |
| Part Number | MX001105-P |
| Related Base Number | MX001105 |
| Application | Select HySecurity drive arm assemblies |
| Common Use | Drive arm pivot service |
| Included Components | Pivot pin and related hardware as supplied in kit |
| Notes | Verify drive arm layout and parts diagram |
Also Known As / Related Part Numbers
- MX001105-P
- MX001105
- HY-MX001105-P
- HYS-MX001105-P
- Nice HySecurity MX001105-P
- Drive arm pivot kit
- Pivot pin kit for drive arm
- Pivot pin and hardware, motor mount
- Pivot pin and hardware, motor MO
- SlideDriver drive arm pivot hardware - verify diagram
Technician Note
Inspect the mating holes, bushings, retainers, drive arm condition, and surrounding hardware before replacing the pivot pin. If the drive arm or mount is elongated from wear, new hardware alone may not correct the play.
Before Ordering
- Confirm the parts diagram lists MX001105-P or MX001105 for the drive arm pivot location.
- Verify the operator model and drive arm configuration.
- Check whether the repair needs one kit or multiple kits.
- Inspect the drive arm, mating brackets, retainers, and pivot holes for wear.
- Confirm the problem is not caused by drive wheel wear, rail issues, hydraulic movement, or gate drag.
Professional Advisory
Mechanical drive components on heavy gate operators should be serviced with the operator disabled and the gate secured from movement. If the gate is binding, dragging, or unsafe, have a qualified gate technician inspect the entire drive system before returning it to service.
Questions & Answers
What does the MX001105-P kit repair?
It repairs or replaces the pivot pin and related hardware at a compatible HySecurity drive arm pivot location where the MX001105 family is listed.
Is this used on every SlideDriver?
No. It should be used only on SlideDriver or other HySecurity drive arm assemblies where the parts diagram confirms this kit.
Can I replace the pin with hardware-store parts?
That is not recommended. Pivot pin diameter, length, retaining method, strength, and fit all matter in the drive arm assembly.
What else should be inspected with the pivot pin?
Inspect the drive arm, mating brackets, pivot holes, retainers, bushings if used, drive rail, wheel condition, and gate movement.
Will this fix gate dragging or poor traction?
Only if worn or missing pivot hardware is the cause. Poor traction can also come from wheel wear, rail problems, gate drag, hydraulic issues, or alignment problems.
