HySecurity MX3307-02, Relay Module, Hy8Relay, Smart Touch

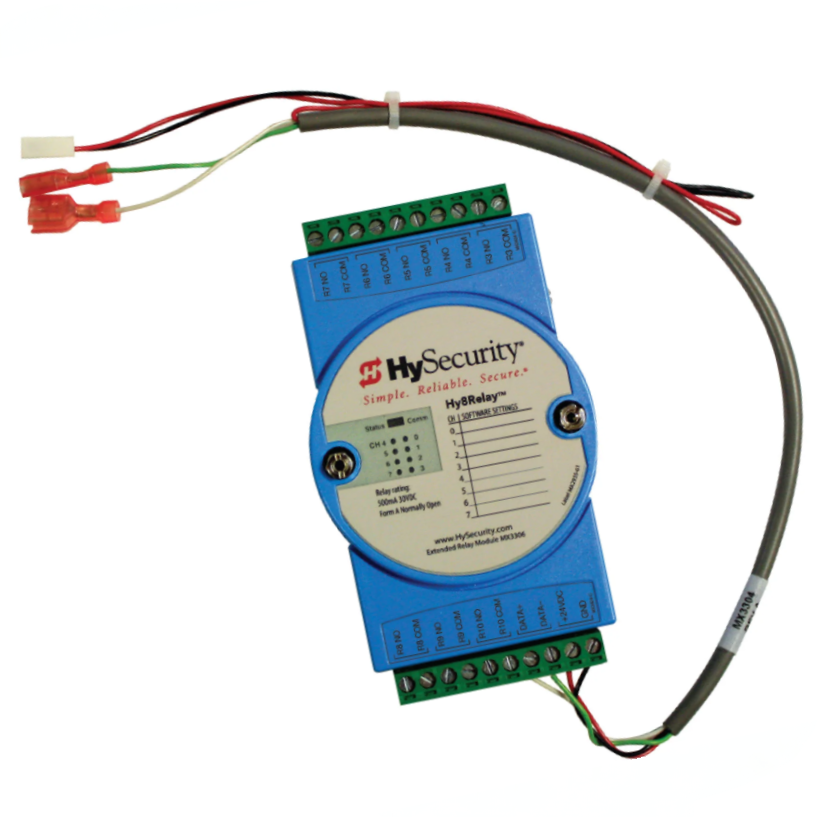

HySecurity MX3307-02 is a hy8relay-smart-dc-extended-relay-module-15-pack.html">Hy8Relay-SmartDC_p_11092.html">hy8relay-smart-dc-extended-relay-module-15-pack.html">Hy8Relay extended relay module used to add eight additional programmable relay outputs to compatible HySecurity Smart Touch operators. It is used when the site needs more output functions for signals, lights, annunciators, access-control interfaces, gate status reporting, or other low-voltage control integrations than the main controller can provide by itself. The hy8relay-smart-dc-extended-relay-module-15-pack.html">Hy8Relay-SmartDC_p_11092.html">hy8relay-smart-dc-extended-relay-module-15-pack.html">Hy8Relay kit includes the module and harness, and installation references show wiring to the Dual Gate and RS-485 connections with label mapping for Smart DC versus Smart Touch. This part should be selected by controller family because the -01 and -02 versions are listed separately. Programming and output assignment must be completed through the operator controller menu or compatible HySecurity service process after the module is installed.
Compatible With
- HySecurity Smart Touch operators requiring additional programmable relay outputs
- HySecurity operators using the hy8relay-smart-dc-extended-relay-module-15-pack.html">Hy8Relay-SmartDC_p_11092.html">hy8relay-smart-dc-extended-relay-module-15-pack.html">Hy8Relay accessory when the controller generation supports it
- Applications needing dry-contact relay outputs for traffic lights, alarms, access-control feedback, status monitoring, or site control integration
- Installations where RS-485 and Dual Gate terminal wiring matches the hy8relay-smart-dc-extended-relay-module-15-pack.html">Hy8Relay-SmartDC_p_11092.html">hy8relay-smart-dc-extended-relay-module-15-pack.html">Hy8Relay installation instructions
Features and Specifications
| Manufacturer | HySecurity / Nice |
|---|
| Part Number | MX3307-02 |
|---|
| Product Type | hy8relay-smart-dc-extended-relay-module-15-pack.html">Hy8Relay-SmartDC_p_11092.html">hy8relay-smart-dc-extended-relay-module-15-pack.html">Hy8Relay extended relay module |
|---|
| Controller Family | Smart Touch |
|---|
| Relay Outputs | 8 additional programmable relay outputs |
|---|
| Included Components | hy8relay-smart-dc-extended-relay-module-15-pack.html">Hy8Relay-SmartDC_p_11092.html">hy8relay-smart-dc-extended-relay-module-15-pack.html">Hy8Relay module with wire harness; mounting accessories may vary |
|---|
| Communication / Wiring | RS-485 / Dual Gate connection area per installation instructions |
|---|
| Notes | Programming is required after installation |
|---|
Also Known As / Related Part Numbers
- MX3307-02
- hy8relay-smart-dc-extended-relay-module-15-pack.html">Hy8Relay-SmartDC_p_11092.html">hy8relay-smart-dc-extended-relay-module-15-pack.html">Hy8Relay
- Hy8 Relay
- hy8relay-smart-dc-extended-relay-module-15-pack.html">Hy8Relay-SmartDC_p_11092.html">hy8relay-smart-dc-extended-relay-module-15-pack.html">Hy8Relay module for Smart Touch
- Extended relay module Smart Touch
- D0587 installation reference
Technician Note
The module adds outputs only after it is wired and configured correctly. Label mapping differs by controller family, so do not assume the Smart DC and Smart Touch versions are interchangeable.
Before Ordering Checklist
- Confirm the operator controller family is Smart Touch
- Verify the site actually needs additional relay outputs
- Confirm wiring access to RS-485 and Dual Gate terminals
- Plan relay assignments before programming
- Test each controlled accessory after installation
Professional Advisory
Low-voltage control wiring should still be completed by a qualified technician, especially when outputs are tied into traffic lights, external alarms, or access-control equipment.
Important Ordering Warning
Do not substitute MX3307-01 without verifying the controller type and HySecurity installation instructions.
Product Questions and Answers
What is HySecurity MX3307-02 used for?
HySecurity MX3307-02 is used as a replacement extended relay module in HySecurity Smart Touch control systems needing additional programmable relay outputs. Match it to the original part number and the operator parts diagram before ordering.
How do I confirm MX3307-02 is the correct part?
Compare the part number on the existing component, the operator model, the control system generation, and the physical or electrical specifications shown in the parts diagram.
How many outputs does this hy8relay-smart-dc-extended-relay-module-15-pack.html">Hy8Relay-SmartDC_p_11092.html">hy8relay-smart-dc-extended-relay-module-15-pack.html">Hy8Relay add?
The hy8relay-smart-dc-extended-relay-module-15-pack.html">Hy8Relay-SmartDC_p_11092.html">hy8relay-smart-dc-extended-relay-module-15-pack.html">Hy8Relay provides eight additional programmable relay outputs when installed and configured on a compatible HySecurity operator.
Is programming required after installation?
Yes. The relay outputs must be assigned and tested in the operator control system after the module is installed.
Should a technician install MX3307-02?
A qualified gate technician is recommended whenever the repair involves electrical wiring, stored energy, moving gate hardware, hydraulic components, or safety-related operation.
