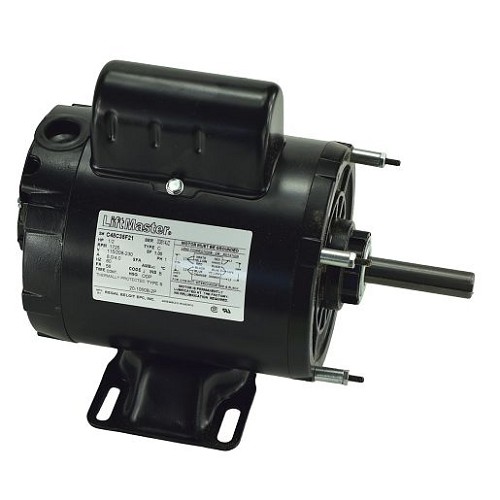

LiftMaster 5021M K20-1050B-2P 230V 1PH 60Hz Standard 1/2 HP Replacement Motor Kit
The LiftMaster K20-1050B-2P is a commercial replacement motor kit for select LiftMaster standard-duty door operators. On these operators, the motor is not just a generic horsepower item; it is matched to the operator series, circuit type, input voltage, phase, frequency, frame/mounting arrangement, and enclosure style. This kit is intended to restore the drive power of the operator when the existing motor has failed and the rest of the door system, brake, clutch, limits, and control components have been checked.
This listing is focused on 5021M 230V, 1PH, 60Hz standard 1/2 HP mechanical-circuit applications. The same base motor part number may appear across several LiftMaster model prefixes, including T, J, H, HJ, and SD style commercial operators, but the suffix and application details still matter. Use the operator nameplate and illustrated parts list to confirm the exact part number before ordering, especially when the opener has been converted, rebuilt, exposed to moisture, or previously serviced with a non-original motor.
For the 5021M row, the important distinction is the 230V single-phase operator application. This listing should not be merged with the 5011M row in customer-facing copy unless the site is intentionally presenting a combined 115/230V motor listing.
Compatible With / Common Applications
This part is used in select LiftMaster commercial operator assemblies where the model number, horsepower, voltage, phase, frequency, enclosure style, and parts diagram match. Compatibility should be confirmed from the operator nameplate and the illustrated parts breakdown before ordering.
- T3311M and T3321M standard-duty mechanical circuit models using K20-1050B-2P
- T5011M and T5021M standard-duty mechanical circuit models using K20-1050B-2P
- J3311M and J3321M standard-duty mechanical circuit models using K20-1050B-2P
- J5011M and J5021M standard-duty mechanical circuit models using K20-1050B-2P
- H3311M and H3321M standard-duty mechanical circuit models using K20-1050B-2P
- H5011M and H5021M standard-duty mechanical circuit models using K20-1050B-2P
- HJ3311M and HJ3321M standard-duty mechanical circuit models using K20-1050B-2P
- HJ5011M and HJ5021M standard-duty mechanical circuit models using K20-1050B-2P
- SD3311M and SD3321M standard-duty mechanical circuit models using K20-1050B-2P
- SD5011M and SD5021M standard-duty mechanical circuit models using K20-1050B-2P
- Select LiftMaster Logic 3.0 and Logic 4.0 standard-duty operators where the parts diagram lists K20-1050B-2P
Features & Specifications
| Feature / Specification | Details |
|---|
| Manufacturer | LiftMaster |
| Product Type | Commercial operator replacement motor kit |
| Part Number | K20-1050B-2P |
| Application | 5021M 230V, 1PH, 60Hz standard 1/2 HP mechanical-circuit applications |
| Compatible Operator Type | Select LiftMaster commercial door operators using the matching motor chart and parts diagram |
| Horsepower | 1/2 HP |
| Voltage | 115/230V rated, used here for 230V 5021M applications |
| Phase | single phase |
| Frequency | 60Hz |
| Enclosure / Motor Style | standard base-mount / standard-duty motor |
| Important Match Point | Match by operator model number, voltage, phase, circuit type, enclosure style, and motor part number |
Also Known As / Related Part Numbers
Technician Note
The K20-1050B-2P motor should be selected from the operator parts diagram, not by appearance alone. A motor with the same horsepower can still be wrong if the voltage, phase, frequency, circuit generation, enclosure, shaft, or mounting style is different.
Before Ordering Checklist
- Confirm the complete operator model number from the nameplate, not only the cover label.
- Confirm the original motor tag shows K20-1050B-2P or a listed related number.
- Confirm the electrical service is 115/230V rated, used here for 230V 5021M applications, single phase, 60Hz.
- Confirm whether the operator uses a standard motor or a NEMA 4/12 TEFC style motor.
- Inspect the door balance, sprockets, chain, clutch, brake, and limit system before replacing a motor.
- Use a qualified technician for line-voltage diagnosis, motor replacement, and unsafe door movement.
Professional Advisory
Commercial operator motors involve line voltage, moving door hardware, limit systems, brakes, and control wiring. Do not bypass safety devices or operate a door that is binding, unbalanced, or missing required protection. Motor replacement and electrical diagnosis should be handled by a qualified commercial door technician.
Product Questions & Answers
Is K20-1050B-2P the correct motor for model 5021M?
It may be correct when the operator nameplate and parts diagram show K20-1050B-2P or the matching 5021M motor specification. Match the horsepower, voltage, phase, frequency, and enclosure style before ordering.
Can this 115/230V rated, used here for 230V 5021M applications motor be used on a different voltage operator?
No. A commercial operator motor must match the operator voltage and phase. Do not substitute a 115/230V rated, used here for 230V 5021M applications, single phase motor for a different electrical configuration.
What operator families commonly use this motor kit?
This motor kit is commonly associated with select LiftMaster T, J, H, HJ, SD, GT, GSD, and/or GH families listed by the matching motor chart commercial operator applications when the parts diagram calls for this part number.
What related numbers should I compare before ordering?
Compare the installed motor tag and parts diagram against K20-1050B-2P, 20-1050B-2P, K20-1050B2, 20-1050B-2, 201050B2, K20-1033B-2P. Small suffix differences can point to a different enclosure, voltage, phase, horsepower, or control generation.
Is this the same motor family as the 5011M listing?
Yes, the same K20-1050B-2P motor family appears on both 5011M and 5021M model paths, but the product row should still identify the correct operator voltage reference so customers do not order by the wrong model label.
