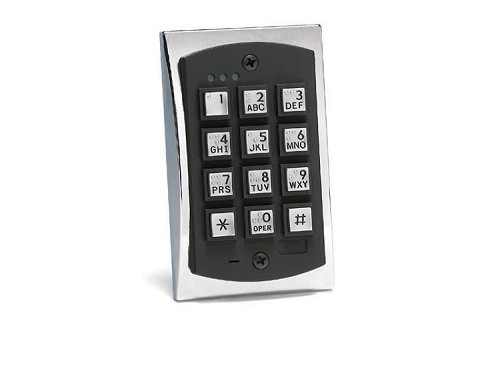

Linear 2000e, 0-294021 Series e Style Flush-mount Backlit Access Control Keypad

The e style keypad uses hardened backlit keys to ensure long-term durability and high-quality performance. e style keypads are designed for both indoor and outdoor flush mount applications. The electronics for each e keypad are conformal coated in the manufacturing process in order to provide this level of application flexibility.

Features

• 500 users
• Single gang flush mount design
• Backlit hardened keys
• Polycarbonate trim
• Key press feedback via sounder and yellow LED
• Built-in assignable sounder
• Bi-color Red/Green LED indicates relay status
• Indoor/outdoor use
• Keypad programmable
• Five-year warranty
• Functionality mode: 2000 Series
• UL 294 Listed

Specifications

• Operating voltage: 10-30 VDC; 12-24 VAC auto-adjusting
• Dimensions: 2.75? W X 4.50? H x 0.60? D
• Temperature tolerance: -20F to 130F

Order number: 0-294021
