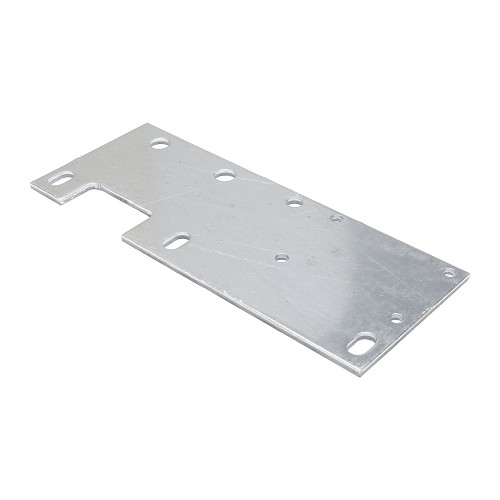

Brake mounting plate for HSLG, MB, and JMB slide gate operators. Brake Mounting Plate for Linear/OSCO gate operator systems. Materials: Steel (unspecified grade). Mounting: Bolted into operator chassis per HSLG installation guide.
A: The 2100-541 is the brake mounting plate that secures and aligns the brake assembly within the HSLG, MB, and JMB slide gate operator chassis.
A: It is confirmed compatible with the Linear HSLG, MB, and JMB series slide gate operators.
A: No official materials specification has been published by Linear. The plate is likely fabricated from steel consistent with other Linear operator structural components.
A: Replace this plate if it is visibly bent, cracked, or if the brake assembly cannot be properly aligned or secured within the operator.
A: Consult the Linear HSLG installation guide parts diagram to confirm correct positioning, then reinstall the brake rod and brake assembly components before restoring power.
