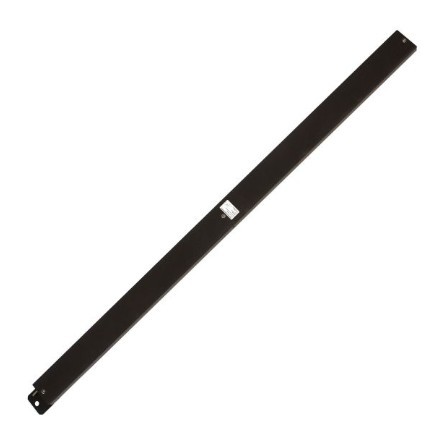

Linear 2110-648, Arm Gate Assy Vs-/GSWG 78.5
The Linear 2110-648 is a 78.5 inch gate arm assembly used on select Linear/OSCO VS and GSWG gate operator applications. This is a mechanical linkage part, not an electronic control board or radio accessory. It helps transfer motion between the operator drive mechanism and the gate or arm assembly, so straightness, pivot alignment, length, and mounting geometry are critical for smooth operation.
Gate arm assemblies are commonly replaced after impact damage, bending, worn pivot points, loose hardware, or repeated binding that causes the gate to travel unevenly. A bent or incorrect arm can create extra stress on the operator, shorten drivetrain life, and cause limit or obstruction issues. Match the 78.5 inch length, VS-/GSWG application, and original part number before ordering.
Compatible With
- Select Linear / OSCO VS operator applications that call for 2110-648
- Select Linear / OSCO GSWG gate operator applications that use the 78.5 inch arm gate assembly
- Commercial and industrial gate arm service where the parts diagram identifies 2110-648
- Replacement for worn, bent, or damaged VS-/GSWG mechanical arm assemblies
- Not a universal arm for all swing, slide, barrier, or HSLG operators
Features & Specifications
| Manufacturer | Linear / OSCO |
|---|
| Product Type | Gate Arm Assembly |
|---|
| Part Number | 2110-648 |
|---|
| Application | VS and GSWG gate arm linkage service |
|---|
| Compatible Operator Type | Mechanical gate operator arm linkage |
|---|
| Operator Family | VS-/GSWG, when confirmed by parts diagram |
|---|
| Length | 78.5 inch nominal |
|---|
| Function | Gate arm movement and linkage support |
|---|
| Notes | Verify the operator family and original part number before ordering. |
|---|
Also Known As / Related Part Numbers
- 2110-648
- 2110648
- LIN-2110-648
- LN-2110648
- Arm Gate Assy VS-/GSWG 78.5
- Gate Arm Assembly 78 inch complete
- Gate Arm Assembly 78.5 inch complete
Technician Note
Measure and inspect the original assembly before ordering. A small difference in length, pivot location, or mounting style can change gate travel and cause binding.
Before Ordering
- Confirm the parts diagram calls for 2110-648.
- Verify the operator family is VS or GSWG.
- Match the 78.5 inch nominal arm length and mounting arrangement.
- Inspect gate hinges, pivot hardware, brackets, and stops for wear or impact damage.
- Do not force a new arm onto a gate that is sagging, dragging, or out of alignment.
Professional Advisory
Heavy gate linkage parts should be installed with the gate secured and power disconnected. If the gate cannot move freely by hand or the operator has suffered impact damage, a qualified gate technician should inspect the full system before replacement.
Important Ordering Warnings
- VS/GSWG arm assemblies should not be treated as universal gate arms.
- Length and pivot geometry are fitment-critical.
Product Questions & Answers
What is the length of the Linear 2110-648 arm assembly?
The part is commonly described as a 78.5 inch gate arm assembly.
Which operator families use 2110-648?
It is commonly associated with Linear/OSCO VS and GSWG operator applications when the parts diagram calls for this arm assembly.
Can this be used to fix a bent gate arm?
Yes, it is commonly ordered for bent or damaged arm assemblies, but the gate and brackets should also be inspected for alignment issues.
Is this the same as a barrier gate arm?
No. This is a VS-/GSWG gate arm assembly and should not be confused with aluminum barrier gate arms or other operator arm parts.
Why does exact fitment matter?
Incorrect length or pivot geometry can cause binding, poor travel, limit problems, and added stress on the operator drivetrain.
