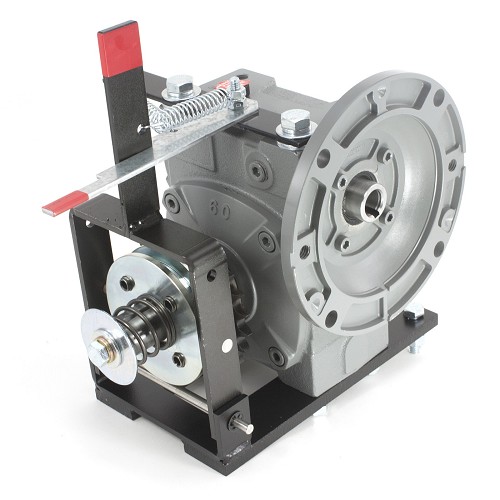

Linear 2110-788, Disconn/Reducer Assy GSLG 15:1
The Linear 2110-788 disconnect/reducer assembly is a heavy-duty drive service component used on select GSLG-A commercial slide gate operator applications that call for a 15:1 reducer setup. It combines gear reduction with the operator disconnect mechanism, helping convert motor output into controlled gate movement while allowing the gate to be released for service or manual operation when required.
This assembly sits in a high-load area of the operator. If it is worn, damaged, or mismatched, the gate may move roughly, bind, make drivetrain noise, or fail to release correctly through the disconnect. The 15:1 ratio is a major fitment detail. Similar Linear/OSCO reducer assemblies may appear close but are not interchangeable when the gear ratio, shaft arrangement, or operator family differs.
Compatible With
- Select Linear / OSCO GSLG-A slide gate operators that call for 2110-788
- GSLG-A commercial slide gate operator parts diagrams using a 15:1 gear reducer/disconnect assembly
- Drive train service areas involving the 15:1 gear reducer, shifter lever, disconnect collar, sprocket, and shaft hardware
- Applications where the original part is identified as Linear / OSCO 2110-788
- Not a direct substitute for 10:1 VS-GSLG reducer/disconnect assembly 2110-363
Features & Specifications
| Manufacturer | Linear / OSCO |
|---|
| Product Type | Disconnect / Gear Reducer Assembly |
|---|
| Part Number | 2110-788 |
|---|
| Application | GSLG-A commercial slide gate operator drive and manual disconnect system |
|---|
| Compatible Operator Type | Commercial slide gate operator |
|---|
| Gear Ratio | 15:1 |
|---|
| Operator Family | GSLG-A, when confirmed by parts diagram |
|---|
| Function | Gear reduction and manual disconnect interface |
|---|
| Notes | Verify the operator family and original part number before ordering. |
|---|
Also Known As / Related Part Numbers
- 2110-788
- 2110788
- LIN-2110-788
- LN-2110788
- Disconn/Reducer Assy GSLG 15:1
- Gear Reducer/Disconnect Assembly
- Related GSLG-A parts: 2200-920 gear reducer 15:1, 2120-132 shifter lever assembly, 2110-362 shifter lever fulcrum assembly, 2200-886 drive sprocket, 2210-004 sprocket
Technician Note
Confirm the 15:1 ratio and GSLG-A application before ordering. This is one of the most important details on this part because the wrong ratio can affect gate speed, torque, and drivetrain operation.
Before Ordering
- Confirm the operator is a GSLG-A series slide gate operator.
- Check the original parts diagram for 2110-788.
- Verify the ratio is 15:1.
- Inspect sprockets, chain, disconnect hardware, shifter linkage, keys, and collars at the same time.
- Use a qualified gate technician for drivetrain replacement and alignment.
Professional Advisory
This part is installed in a commercial slide gate drivetrain. Disconnect power, secure the gate, and do not work around a moving gate. High-voltage and heavy mechanical service should be performed by a qualified gate technician.
Important Ordering Warnings
- Do not confuse 2110-788 15:1 with 2110-363 10:1.
- GSLG-A and VS-GSLG reducer assemblies should be verified by parts diagram, not by appearance.
Product Questions & Answers
What operator is Linear 2110-788 used with?
Linear 2110-788 is commonly associated with GSLG-A slide gate operator parts diagrams that call for a 15:1 gear reducer/disconnect assembly.
Is 2110-788 interchangeable with 2110-363?
No. 2110-788 is identified as a 15:1 assembly, while 2110-363 is a 10:1 assembly for different applications.
What problems can a bad reducer/disconnect assembly cause?
It can cause grinding, binding, uneven gate movement, disconnect issues, or excess play in the operator drive train.
Should only the reducer be replaced?
The related chain, sprockets, keys, collars, and shifter hardware should be inspected because wear in one area can damage the new assembly.
Can this part change gate speed?
The reducer ratio is tied to gate speed and torque, so the replacement assembly must match the specified ratio for the operator.
