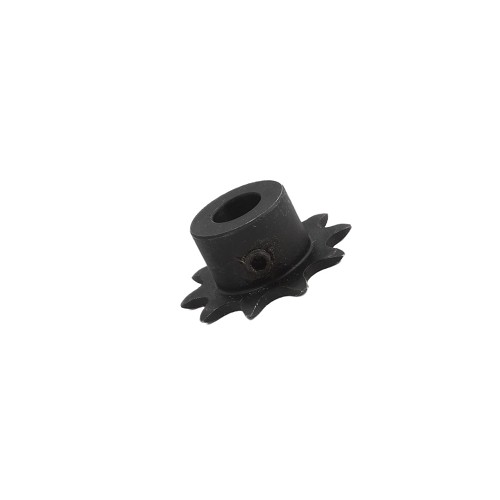

The Linear 2200-008 is a sprocket from Linear, an OEM replacement part for Linear and OSCO gate operator systems. #48 roller chain sprocket with 1/2" bore and single set screw for Linear/OSCO gate operators. Constructed from Steel. Specifications: 1/2" bore. This part ensures reliable operation when replacing worn or damaged components in compatible Linear/OSCO gate operators.
A: This sprocket is designed for #48 roller chain, which has a 3/4" pitch.
A: The 1SS designation indicates a single set screw configuration for securing the sprocket to the shaft.
A: The bore diameter is 1/2", which matches the drive shaft diameter in compatible Linear/OSCO gate operator assemblies.
A: The part number designation 48-B-10 means it is a Type B hub sprocket for #48 chain with 10 teeth.
A: No, this version does not carry the -UPS suffix; see part 2200-008-UPS for the UPS-shipped variant of this same sprocket.
