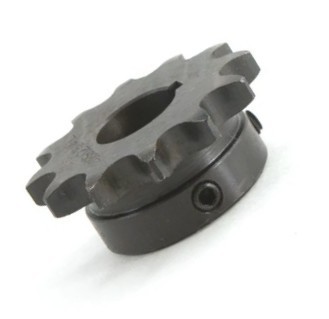

The Linear 2200-190 is a genuine OEM replacement drive sprocket for Linear and OSCO commercial gate operator systems. 12-Tooth Type-B Hub Sprocket for #40 Roller Chain with 3/4" Bore - Linear Swing Gate Operator Replacement Part. Key dimensions: 3/4" bore. Compatible with Linear SWR swing gate operator, Linear SWC swing gate operator, Linear SWD swing gate operator.
A: The 2200-190 is used in Linear SWR, SWC, and SWD series swing gate operators as a drive sprocket in the chain drive mechanism.
A: The 2200-190 uses standard #40 roller chain, which has a 1/2" pitch. Make sure to match the chain specification when replacing.
A: The bore diameter is 3/4". The hub style is Type B. Verify your shaft diameter is 3/4" before ordering.
A: Yes. A related variant, part number 2200-190-UPS, exists as an alternative version. Confirm which variant your operator requires before ordering.
A: The 2200-190 is listed as Part #18 in Linear swing gate operator parts diagrams. Refer to your operator service manual and locate item 18 in the drive assembly exploded view.
