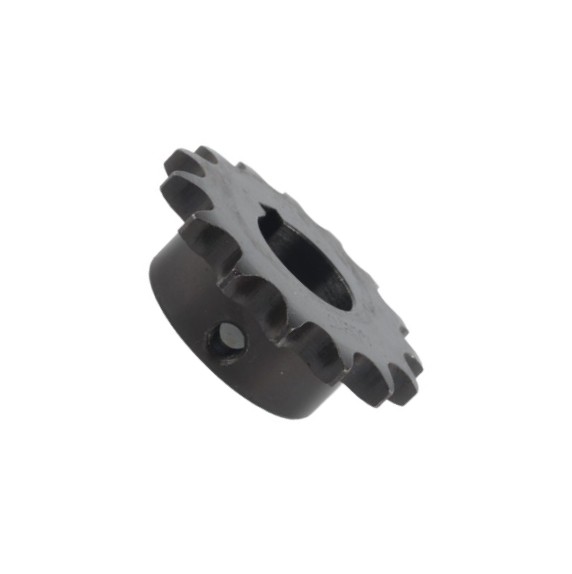

Linear 2200-952 is a sprocket manufactured by Linear/OSCO for use in their gate operator product line. ANSI 40 chain sprocket, 15-tooth, 1-inch bore, oxided finish for 1 HP Linear SL-series slide gate operators. Constructed from Oxided steel. 1 in bore, 15 teeth, ANSI 40 chain pitch (1/2 in pitch). 1 in bore, B-style hub.
A: The 40-B-15 designation indicates an ANSI No. 40 chain pitch (1/2-inch pitch), B-style hub, 15-tooth sprocket.
A: Oxided (also called blackened or oxide-coated) steel provides a mild corrosion and abrasion resistance layer suitable for the protected environment inside a gate operator enclosure.
A: No - this sprocket is rated for 1 HP Linear SL-series operators only. Use 2200-953 or 2200-953-UPS for 1/2 HP and 3/4 HP operators.
A: 2200-952 has been superseded by 2200-952-UPS, which is the current updated replacement part.
A: Inspect for tooth wear, chipping, or chain misalignment. Replace when teeth show visible wear or hooked profiles that indicate end-of-life.
