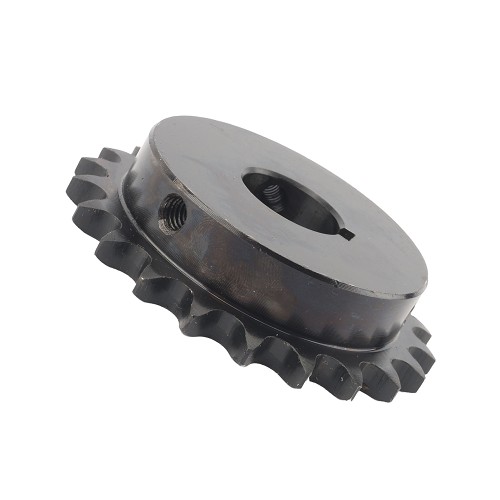

ANSI #40 chain sprocket, 22-tooth, 1-inch bore, oxide finish for Linear HSLG gate operators. The Linear 2200-968 is an OEM replacement sprocket designed for use with Linear and OSCO gate operator systems. This part is compatible with Linear HSLG gate operators, OSCO gate operators systems. Constructed from Steel with oxide finish, it delivers the durability required for reliable gate operation. Always verify compatibility with your specific operator model before installation.
A: This sprocket is designed for use with ANSI #40 roller chain. Using a different chain pitch will result in improper meshing and premature wear.
A: The 2200-968 is specifically listed for Linear HSLG series slide gate operators. Verify your operator model before ordering.
A: The oxide finish provides a basic level of corrosion resistance. For outdoor installations in harsh environments, periodic lubrication of both the sprocket and chain is recommended.
A: The 2200-968-UPS is a UPS variant of this sprocket, sharing the same ANSI #40, 22-tooth, 1-inch bore specification. The UPS suffix may indicate a packaging or supply-chain distinction; consult Linear for clarification.
A: The 1-inch bore is a standard dimension. When installing, ensure the shaft is within tolerance and use appropriate set screws or keyway hardware as specified for your operator model.
