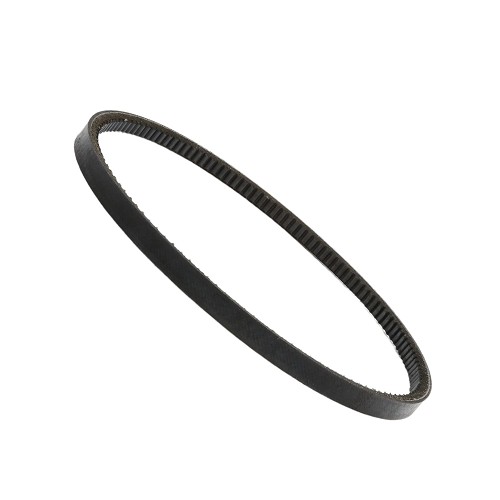

Linear 2200-975, V Belt 29 4L Style Cogged
4L cross-section cogged V-belt, 29-inch nominal length, for Linear gate operator high-speed drive configuration. The Linear 2200-975 is an OEM replacement v-belt designed for use with Linear and OSCO gate operator systems. This part is compatible with Linear gate operators - high-speed mod configuration, OSCO gate operators systems. Constructed from Rubber with fiber reinforcement, it delivers the durability required for reliable gate operation. Always verify compatibility with your specific operator model before installation.
Key Features
- 4L cross-section
- 29-inch nominal length
- Cogged design for reduced heat and improved flexibility
- High-speed mod drive configuration
- Direct replacement for Linear operators
- Standard industry 4L290 equivalent
Compatibility Guide
- Linear gate operators - high-speed mod configuration
- OSCO gate operators
| Feature | Specification |
|---|
| Model | Linear 2200-975 |
| Item Type | V-Belt |
| Materials | Rubber with fiber reinforcement |
| Dimensions | 4L cross-section, 29-inch nominal outside length |
| Alternate Part Numbers | 2200-975, 4L290 |
Frequently Asked Questions
Q: What are the specifications of the 2200-975 V-belt?
A: The 2200-975 is a 4L-style cross-section cogged V-belt with a 29-inch nominal length. The 4L cross-section measures approximately 1/2 inch wide and 5/16 inch deep.
Q: What is the advantage of a cogged V-belt over a standard V-belt?
A: A cogged belt has notches cut into the inner surface, which reduce bending stress, improve flexibility around smaller pulleys, and increase gripping surface area compared to a standard wrapped belt.
Q: Which Linear operator configurations use the 2200-975 belt?
A: The 2200-975 belt is listed for use in the high-speed modification configuration of Linear gate operators. Consult your operator's installation or service guide to confirm the correct belt for your specific configuration.
Q: How do I check and maintain the 2200-975 V-belt?
A: Check belt tension per the Linear service manual - typically 1/2-inch deflection under moderate thumb pressure for gate operator V-belts. Inspect for cracking, fraying, glazing, or missing cogs and replace if any of these signs are present.
Q: Can I substitute an aftermarket belt for the 2200-975?
A: The 2200-975 corresponds to an industry-standard 4L290 belt designation. Aftermarket equivalents with the same 4L cross-section and 29-inch nominal length may be substituted, but OEM parts are recommended for guaranteed fit.
