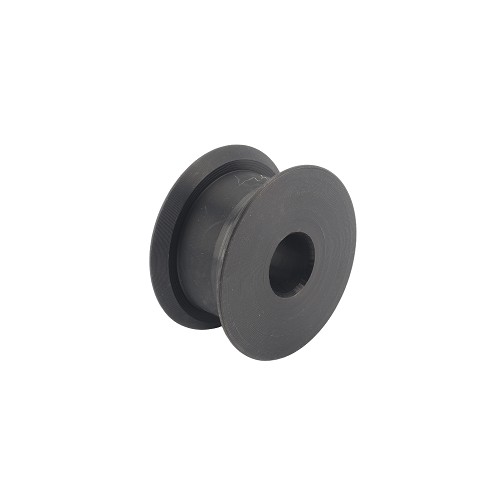

Linear 2300-697, Idler Wheel Uhmw
UHMW idler wheel for Linear slide gate operator drive chain assembly. The Linear 2300-697 is an OEM replacement part manufactured by Linear for use in access control gate systems. Constructed from UHMW (Ultra-High Molecular Weight polyethylene), this part ensures reliable performance in field installations. Compatible with Linear HSLG slide gate operators, Linear SLR slide gate operators, Linear SLC slide gate operators.
Key Features
- UHMW polyethylene construction for low friction and high abrasion resistance
- Designed for main drive chain assembly on HSLG slide gate operators
- Listed in Linear SLR/SLC/SLD installation guide parts list
- High impact strength suitable for continuous cycling
- Direct OEM replacement part
Compatibility Guide
- Linear HSLG slide gate operators
- Linear SLR slide gate operators
- Linear SLC slide gate operators
- Linear SLD slide gate operators
- OSCO slide gate operators
| Feature | Specification |
|---|
| Model | Linear 2300-697 |
| Item Type | Idler Wheel |
| Materials | UHMW (Ultra-High Molecular Weight polyethylene) |
| Alternate Part Numbers | Idler Assembly 2300-697 Idler Wheel UHMW |
Frequently Asked Questions
Q: What does UHMW mean and why is it used for this idler wheel?
A: UHMW stands for Ultra-High Molecular Weight polyethylene, a dense plastic with excellent abrasion resistance, low friction, and high impact strength - ideal for rolling and sliding applications in gate operators.
Q: Where is the 2300-697 idler wheel used in the gate operator?
A: The idler wheel is part of the main drive chain assembly on HSLG and related SLR/SLC/SLD slide gate operators, guiding and tensioning the drive chain.
Q: Is this part listed in the official Linear installation guide?
A: Yes, the 2300-697 is listed in the Linear SLR/SLC/SLD Slide Gate Operator Installation Guide as the specified replacement idler wheel for those models.
Q: Are any special tools needed to replace this idler wheel?
A: No special tools are typically required. Consult the Linear SLR/SLC/SLD installation guide for specific disassembly and reassembly procedures, and always disconnect power before servicing.
Q: Does the UHMW idler wheel require lubrication or special maintenance?
A: UHMW polyethylene requires minimal maintenance, but periodic inspection for wear, cracking, or deformation is recommended. Keep the drive chain properly lubricated per Linear's guidelines.
