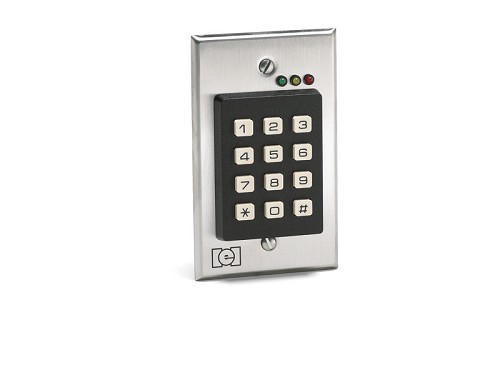

Linear 232i, 0-213111 12/24 VAC/VDC DCIndoor Flush-mount Keypad Auto-Adjusting
Affordable single door access control keypad designed to meet the indoor flush mount needs of lighter volume access control environments. There are three LED s to indicate operation status and provide the user with visual PIN entry confirmation. The i style keypad mounts to most standard single-gang electrical back boxes.
Features
- 120 users
- Single gang design
- 1 SPDT 2 amp relay and three 1 amp SPDT relays
- Door Position Monitoring
- Door ajar, forced door, alarm shunt outputs
- Indoor use only
- Functionality mode: 212, 232
Specifications
- Operating voltage: 12-24 VAC/VDC auto adjusting
- Dimensions: 2.75? W x 4.50? H x 1.3 D
- Current draw: 94 mA maximum (add 30 mA for each relay)
- Temperature tolerance: -20F to 130F
- Order number: 0-213111
