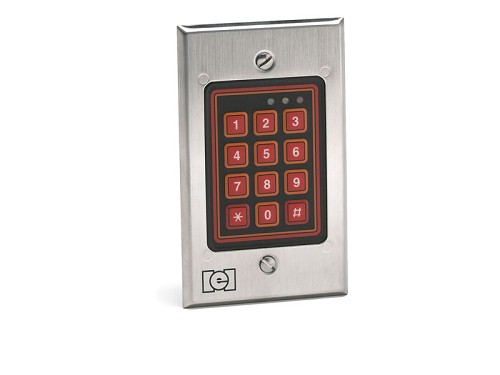

Linear 232w, 0-213222 Indoor / Outdoow Flush-mount Weather Resistant Keypad
The 232w style single door access control keypad is designed to meet the indoor/outdoor flush mount needs of lighter volume access control environments. The w style features a sealed membrane keypad that allows the keys to be cleaned and resist moisture. There are three LED s to indicate operation status and provide the user with visual PIN entry confirmation. The w style keypad mounts to most standard single-gang electrical back boxes.
Features
- 120 users
- Single-gang design
- 1 SPDT 2 amp relay and three 1 amp SPDT relays
- Door Position Monitoring
- Door ajar, Forced door, Alarm shunt outputs
- Indoor/outdoor use
- Functionality mode: 212, 232
Specifications
- Dimensions: 2.75? W x 4.50? H x 1.13? D
- Operating voltage: 12-24 VAC/DC auto adjusting
- Current draw: 94 mA maximum (add 30 mA for each additional relay)
- Temperature tolerance: -20F to 130F
- Order number: 213222
