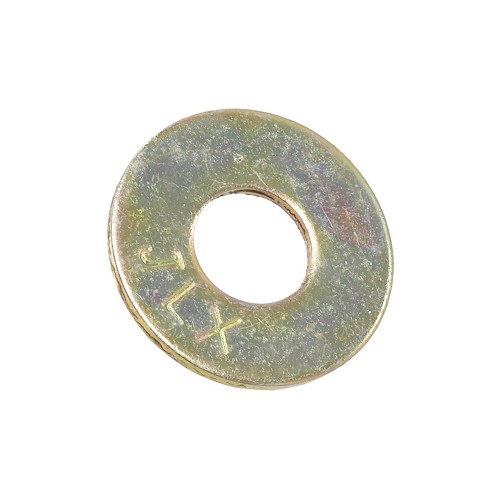

Linear 2400-506, Washer 1/2 Flat Gd8 Yellow
Linear 2400-506 is an OEM replacement flat washer from Linear (also sold under the OSCO, Nortek, and Linear PRO Access brand names). OEM Grade 8 yellow zinc flat washer 1/2 in for Linear gate operator structural hardware. Key attributes include OEM Grade 8 flat washer, 1/2 in nominal bore and Yellow zinc-chromate coating for corrosion resistance. Compatible with the Linear OSCO VS slide gate operator and Linear OSCO GSLG slide gate operator families.
Key Features
- OEM Grade 8 flat washer, 1/2 in nominal bore
- Yellow zinc-chromate coating for corrosion resistance
- High-strength Grade 8 rating for structural fastener joints
- Pairs with 2400-507 lock nut and 2400-512 hex head cap screw
- Purely mechanical hardware - no electrical function
Compatibility Guide
- Linear OSCO VS slide gate operator
- Linear OSCO GSLG slide gate operator
- Linear OSCO SWD swing gate operator
- Linear OSCO SLR slide gate operator
- Linear gate operator structural fastener assemblies (general)
| Feature | Specification |
|---|
| Model | Linear 2400-506 |
| Item Type | Flat Washer |
| Materials | Grade 8 steel with yellow zinc-chromate coating |
| Dimensions | 1/2 in nominal bore flat washer |
| Mounting | Used under bolt head or nut in 1/2 in fastener assembly |
| Alternate Part Numbers | 2400-506, LIN2400506, OSCO-2400-506 |
Frequently Asked Questions
Q: What is the Linear 2400-506 and where is it used?
A: Part 2400-506 is a Grade 8 flat washer with a 1/2 inch nominal bore, finished in yellow zinc-chromate coating, used in the structural fastener assemblies of Linear OSCO gate operators.
Q: What does Grade 8 mean for this washer?
A: Grade 8 is the highest common SAE grade for inch-series fasteners, indicating high tensile strength. It is used in high-stress structural joints where standard Grade 5 or Grade 2 hardware would be insufficient.
Q: Why is the washer coated in yellow zinc-chromate?
A: The yellow zinc-chromate finish provides corrosion resistance for outdoor gate operator installations, helping the hardware withstand moisture, UV exposure, and environmental contamination.
Q: Can I substitute a standard flat washer for the 2400-506?
A: While dimensionally similar washers may be available, replacing with a lower-grade washer in a high-load joint could lead to fastener loosening, joint failure, or structural damage to the operator. Use OEM Grade 8 hardware.
Q: What fasteners does the 2400-506 pair with?
A: The 2400-506 pairs with compatible 1/2-13 fasteners such as the 2400-507 nylon insert lock nut and 2400-512 hex head cap screw in Linear gate operator structural assemblies.
