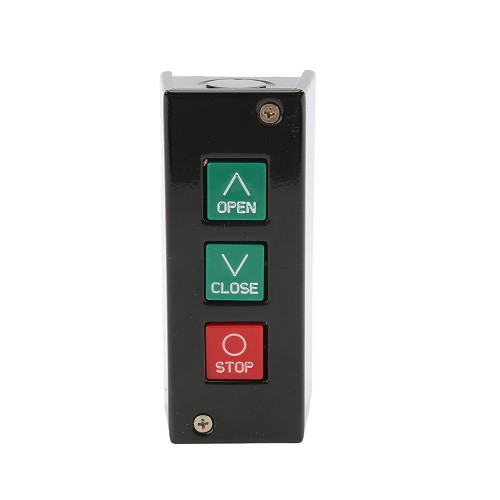

Linear 2500-033 is an OEM replacement control station from Linear (also sold under the OSCO, Nortek, and Linear PRO Access brand names). OEM 3-button OPEN-CLOSE-STOP interior control station NEMA 1 surface mount for Linear gate operators. Key attributes include 3-button OPEN-CLOSE-STOP layout and NEMA 1 indoor rated enclosure. Compatible with the Linear slide gate operators and Linear swing gate operators families.
A: The three buttons are labeled OPEN, CLOSE, and STOP, providing full manual directional control and an immediate stop command for the gate operator.
A: NEMA 1 is an indoor rating for enclosures that provides basic protection against contact with enclosed equipment. It is not rated for outdoor or wet locations.
A: No. The 2500-033 is a NEMA 1 interior-rated station only. For outdoor use, a NEMA 3R or NEMA 4 rated station must be selected instead.
A: The station uses surface mount installation, meaning it mounts directly to a flat wall or panel surface without a recessed box.
A: The 2500-033 is typically wired to the gate operator control board terminal strip per the wiring diagram in the Linear operator manual, with each button connecting to the corresponding OPEN, CLOSE, and STOP input terminals.
