Linear 2500-2245-UPS 1 HP 115V H-VS Motor Drive for Linear / OSCO Gate Operators

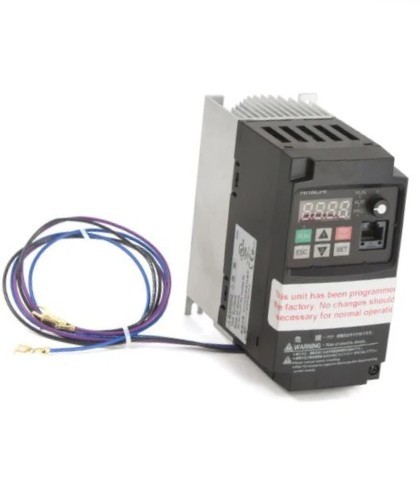

The Linear 2500-2245-UPS is a replacement H-VS style motor drive for select Linear / OSCO gate operator systems using a 1 horsepower, 115V drive package. In the field, this type of component is part of the motor-control side of the operator, helping the gate system manage motor output instead of simply switching power on and off. It may be considered when the existing drive is damaged, no longer powering the motor correctly, showing drive faults, or when the operator parts diagram identifies 2500-2245-UPS as the required service item. Correct fitment matters because similar Linear / OSCO operators can use different drive ratings, and installing the wrong drive can create motor, control-board, or safety-device issues. This part should be matched to the original label and the operator wiring diagram before replacement.
Compatible With
Use this section as a fitment guide, not a substitute for the operator parts diagram. Linear and OSCO service parts can vary by production date, voltage, phase, horsepower, enclosure, control package, and connector layout.
- Select Linear / OSCO commercial gate operators that specifically list 2500-2245-UPS in the parts diagram.
- Commonly associated with H-VS / variable-speed motor-drive service applications.
- Commonly found in Linear / OSCO SWG replacement parts references where the exact part number is shown.
- May be used with 1 HP, 115V drive systems only when the original operator configuration confirms this exact assembly.
- Verify operator model, input voltage, motor horsepower, phase, harness connections, and drive label before ordering.
Features & Specifications
| Manufacturer | Linear / OSCO |
|---|
| Product Type | Motor drive / variable-speed drive assembly |
|---|
| Part Number | 2500-2245-UPS |
|---|
| Application | Motor-control service part for select Linear / OSCO automatic gate operators |
|---|
| Horsepower | 1 HP |
|---|
| Voltage | 115V |
|---|
| Compatible Operator Type | Select commercial gate operators using the H-VS 1 HP 115V drive package |
|---|
| Notes | Match exact part number and operator wiring diagram before replacement |
|---|
Also Known As / Related Part Numbers
- 2500-2245-UPS
- LIN-2500-2245-UPS
- 25002245UPS
- 2500 2245 UPS
- MTR Drive-H VS 1HP 115V
- H-VS 1 HP 115V motor drive
- Related Linear / OSCO VS drive assemblies: 2510-527, 2510-528, 2510-529, 2510-530, 2510-534 - verify rating before substituting
Technician Note
For this style of drive, the part number and electrical rating are the fitment anchors. Do not select the drive by cabinet appearance alone; a similar SWG or VS operator may use a different horsepower or phase package.
Before Ordering
- Confirm the original drive label shows 2500-2245-UPS or a confirmed approved replacement.
- Confirm the operator supply voltage and motor rating are 115V and 1 HP where applicable.
- Compare harness plugs, terminal markings, and mounting points to the failed drive.
- Check for upstream causes of drive failure such as a binding gate, damaged motor, water intrusion, or shorted wiring.
- Verify monitored safety devices are installed and working after service.
Important Ordering Warnings
- Not a universal Linear / OSCO motor drive.
- Do not replace a different horsepower, voltage, or phase drive without confirming the parts diagram.
- High-voltage gate operator service should be handled by a qualified gate technician.
Professional Advisory
For any high-voltage motor, drive, timer, or hardwired intercom service, use a qualified gate or access-control technician. After replacement, the complete system should be tested for normal operation, safe stopping, proper limits, and active safety devices.
Product Questions and Answers
What does the Linear 2500-2245-UPS do?
It is a 1 HP, 115V motor drive used to manage motor output in select Linear / OSCO gate operator systems that call for this exact drive assembly.
Can I use this drive on any Linear gate operator?
No. It should only be used on select Linear / OSCO operators where the parts diagram, original drive label, and electrical rating match 2500-2245-UPS.
What should I compare before ordering this drive?
Compare the part number, horsepower, voltage, phase, harness connections, terminal layout, and mounting style against the original failed drive.
What symptoms may point to a failed motor drive?
Possible symptoms include the motor not running, inconsistent drive output, drive faults, or a gate that will not move even though control inputs are present. Other electrical or mechanical problems can cause similar symptoms.
Should a technician install this part?
Yes. This is a motor-control component in a powered gate operator. A qualified gate technician should diagnose the system and confirm safe operation after installation.
