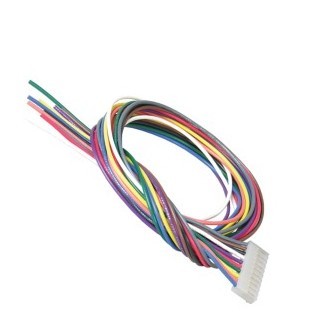

10-pin female wiring harness with diagram for APeX gate operator remote loop detector connections. The Linear 2500-2509 is a Wiring Harness designed for use with Linear gate operator systems. Contact configuration: 10-pin female connector.
A: It is a 10-pin female connector wiring harness with an included wiring diagram, used to connect remote loop detectors to the APeX gate operator controller.
A: It is specifically designed for the Linear APeX series gate operator controller when using non-plug-in style loop detectors.
A: The wiring diagram (DWG) included with the harness provides guidance on how to correctly wire the remote loop detector to the APeX controller's 10-pin connector.
A: Non-plug-in loop detectors require this harness to interface with the APeX controller's 10-pin connector port, as they do not connect directly via a plug-in module.
A: The harness also goes by the name APeX Remote Loop Detector Wiring Harness, reflecting its application in the APeX gate system.
