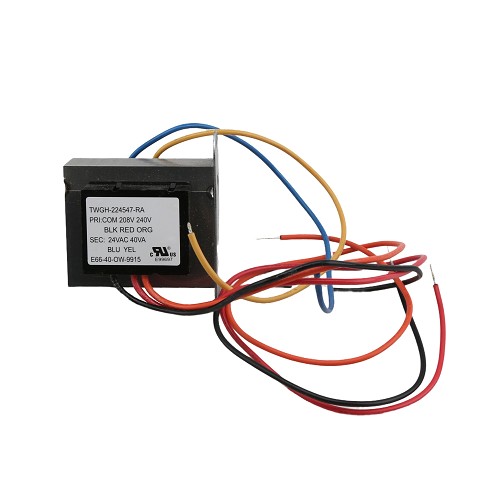

The Linear 2500-791 is a control transformer designed for use with Linear and OSCO gate operator systems. 208/240V to 24V 40VA control transformer for Linear/OSCO gate operators. It operates at 208V, 230V, 240V, 24V. This part is an authorized Linear/OSCO replacement component for professional gate operator maintenance and repair.
A: The 2500-791 accepts 208, 230, or 240 VAC input at 60 Hz, single phase, and outputs 24 VAC at 40 VA.
A: It is compatible with VS-GSWG, VS-GSLG, SLR, SLC, and SWC Linear/OSCO gate operators, among other compatible models.
A: Yes, the 2500-791 directly supersedes and replaces the earlier Linear part number 2500-767.
A: The transformer operates on single-phase, 60 Hz power only; it is not rated for 50 Hz applications unless confirmed by Linear technical support.
A: The 2500-791 provides low-voltage 24 VAC control power to the gate operator control board and associated accessories such as timers and relays.
