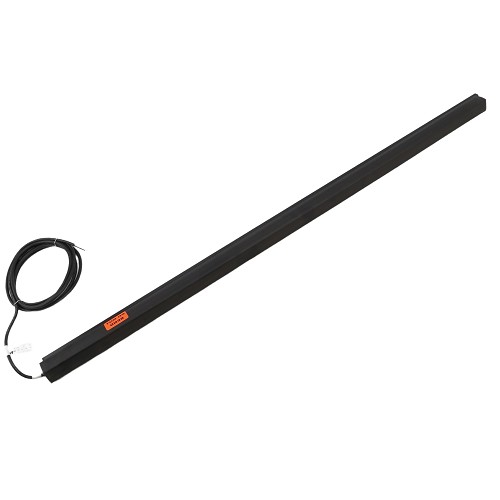

The Linear 2510-281 is a Safety Edge Assembly from Linear, described as a MGO20 4-foot safety edge with channel and mounting hardware for Linear gate operators prior to 2016. Operating voltage: 24V AC, 24V DC. Contact configuration: 2-wire normally open (N.O.). Compatible with Linear gate operators manufactured prior to 2016, Linear slide gate operators with MGO20 safety edge input, RSL-series operators.
A: The 2510-281 is a 4-foot MGO20 pneumatic-style safety edge assembly including the extruded channel and mounting hardware.
A: The safety edge accepts 24V AC or DC at a maximum of 1/2 amp.
A: The contact output is 2-wire normally open (N.O.), closing on contact activation.
A: This safety edge is designed for Linear gate operators manufactured prior to 2016; verify compatibility with your operator model and year.
A: Operating temperature range is -30 deg F to +155 deg F.
