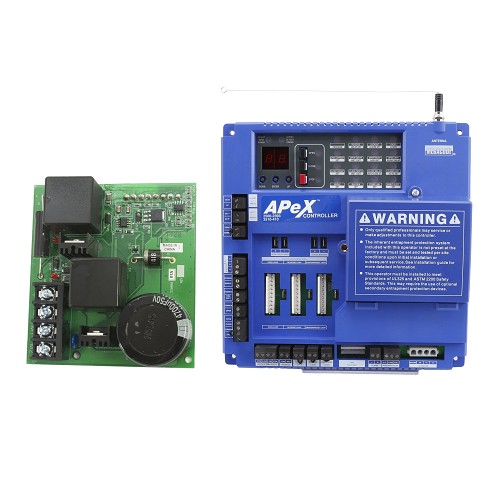

The Linear 2510-439 is a APeX Control Module and PWM DC Motor Board Assembly designed for use with Linear and OSCO APeX-equipped gate operators. This Control Board Assembly is an OEM-grade replacement part that ensures proper electrical connectivity and system reliability for Apex gate operator installations. Manufactured by Linear (Nortek), it provides direct OEM fit for compatible operator models.
A: This assembly combines the APeX logic control module with the PWM DC motor board, providing gate operator control, motor speed regulation, diagnostics, and safety compliance in a single unit.
A: The APeX module supports plug-in loop detector expansion, allowing vehicle detection loops to be integrated directly into the control system.
A: Yes, the assembly is UL325 compliant, meeting safety standards for residential and commercial gate operators.
A: The PWM (Pulse Width Modulation) motor board regulates DC motor speed using pulse width modulation, enabling soft-start and soft-stop operation for smooth gate movement.
A: Installation requires disconnecting power, removing the old module and motor board, and connecting the new assembly per the wiring diagram in the Linear APeX SWD series installation guide. Always follow local electrical codes.
