The Model AE-100 Commercial Telephone Entry System One Door is designed for use as a primary access control device for apartments, condominiums, and offices with up to 125 residents.
The system can be used in a lobby or outside. Surface, recessed, and pedestal mounting options are supported. The system utilizes hands-free, full duplex telephone communications between visitors and residents for granting access.

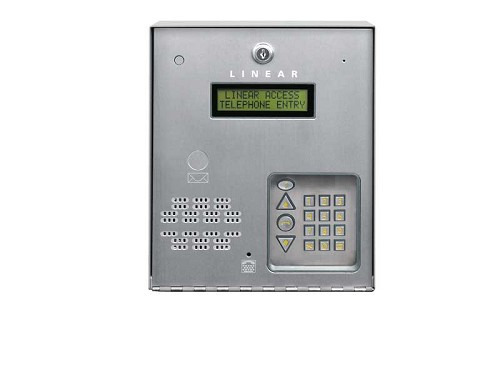

Housed in a locked, rugged stainless steel faced enclosure, the AE-100 features a lighted 12-key telephone style keypad and four operation buttons all with bright, easy-to-see graphics. The backlit two-line directory LCD display scrolls a programmable welcome message and shows the directory Names and Directory Codes.
The system contains a built-in microphone, tamper resistant speaker, and a TTY connector for the hearing impaired. The heavy duty access relay can control electric door strikes, magnetic locks, door & gate operators, or barrier gates.
Multi-lingual display programming prompts and voice help is available with a choice of English, Spanish, French-Canadian, or Portuguese language selection for the system. The system can be programmed locally using the keypad, or remotely with a touch tone telephone.
Up to four AE-100 units can be connected to the same dedicated telephone line to form a simple network. Connecting multiple units allows transferring programming data (either the directory entries only or the entire memory s contents) from the master unit to the other sub-units.
Optional features that the AE-100 supports are provisions for postal lock and color CCTV camera installation (Model CCM-1A).
The AE-100 is powered from a 16 VAC plug-in transformer and supports an internal rechargeable 1.2 amp/hour backup battery (not included). The battery charging circuit will support an external backup battery with up to 7 amp/hour capacity.
Applications
Small apartment buildings, condominiums, or gated communities
Features
- Many installation choices: surface, recessed, gooseneck
- Stainless steel front panel
- Telephone style keypad with lighting
- Accepts a total of 125 directory listings or stand-alone entry codes
- TTY jack for connection to text communication devices for the hearing impaired
- Simple network capability with up to four units allows transferring programming data from master unit to other sub-units
- Two-line-16-character LCD display
- Removable terminal blocks
- Form C access relay rated at 10 amps AC and 7 amps DC @ 30 volts
- Load shed circuitry protects backup battery
- 9.75? W x 11.75? H x 3.5? D
Order number: ACP00937
| AE-100 |
|---|
PROGRAMMING |
| Telephone Entry: | Over 30 programmable parameters, including directory code length, display messages, and languages |
OUTPUTS |
| Access Relay: | 10-amp AC/7-amp DC @30 Volts AC/DC ratings; normally open and normally closed contacts |
DISPLAY |
| Front Panel: | LCD technology, 2 lines by 16 characters, 0.3? height |
| Keypad Lighting: | Illuminated LED lighting for the front panel keypad |
ELECTRICAL |
| Input: | 16 VAC from supplied plug-in transformer |
| Current Consumption: | <200 mA idle, <500 MA operating |
| Back-up Battery: | Built-in charger with up to 7 A/H battery capacity |
| Dialing: | DTMF |
ENVIRONMENTAL |
| Temperature: | -22° to +149°F (-30° to +65°C) |
| Humidity: | 5% to 95% non-condensing |
| Memory: | 125 directory or personal entry codes; all data is stored in non-volatile memory |
| Connections | Wire connections via removable terminal blocks |
| Enclosure | 16-gauge powder coated steel cabinet; 22-gauge brushed stainless steel front panel |
STANDARD EQUIPMENT |
| AE-100 Telephone Entry System: | Integral keypad, display, speakers, and microphone; surface or flush mounting, indoors or outdoors |
DIMENSIONS |
| Case: | 9.75? W x 11.75? H x 3.5? D (248 x 298 x 89 mm) |
| Optional Trim Ring Mounting Hole Size: | 10? W x 12? H (254 x 305 mm) |
