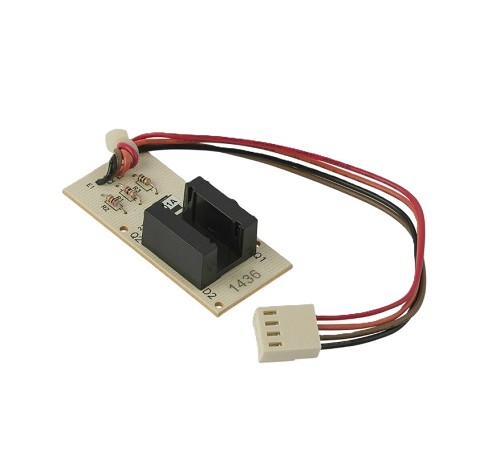

Linear HAE00058 LDCO Encoder Board (LDCO800)
Ensure precise travel limits and smooth operation for your garage door system with the Linear HAE00058 LDCO Encoder Board. This essential internal component is designed specifically for the LDCO800 series, serving as the "eyes" of the motor by tracking the exact position of the door throughout its cycle. By providing real-time feedback to the main control board, this encoder ensures that your door opens and closes to the correct points every time, preventing mechanical strain and ensuring safety.
If your operator is experiencing "short-travel" issues, failing to set limits, or reversing unexpectedly, a faulty encoder board is often the cause. This genuine Linear OEM replacement part allows you to restore factory-spec performance to your high-performance DC-powered operator without replacing the entire motor head assembly.
Technical Highlights
- Precision Tracking: Utilizes advanced optical or magnetic sensors to monitor motor revolutions, ensuring accurate limit settings for both the up and down travel.
- Direct OEM Replacement: An authentic factory part designed for a perfect physical and electrical fit within the LDCO800 motor housing.
- Smooth DC Operation: Optimized for Linear's quiet DC motors, assisting in the soft-start and soft-stop functionality that reduces wear on door hardware.
- Plug-and-Play Setup: Features a dedicated wire harness connector for a straightforward interface with the Linear R4722 Control Board or specific LDCO logic boards.
- Durable Construction: Built with high-quality circuitry to withstand the vibrations and temperature shifts common in garage environments.
Product Specifications
| Manufacturer | Linear / Nortek (Nice) |
| Model Number | HAE00058 |
| Component Type | Encoder / RPM Sensor Board |
| Compatible Motor | 800 Newtons (DC Powered) |
| Application | Garage Door Operator Maintenance |
Compatibility Guide
The HAE00058 is a specialized component primarily found in Linear's premium residential DC-powered belt and chain drive operators.
- Compatible Operator Models:
- Linear LDCO800: The primary 800 Newton DC-powered garage door operator.
- Linear LDCO850: Compatible with select versions of the 850 series (check your manual for part number HAE00058).
- Linear LDCO852: Utilized in specific dual-lamp DC-powered residential units.
Compatible Replacement Parts & Accessories:
- Logic Boards: Interfaces directly with the main Linear Logic/Control Board for the LDCO series.
- Safety Peripherals: Works in conjunction with Linear Photo-Eye Safety Sensors to ensure safe obstacle detection during the close cycle.
- Remotes: Fully compatible with systems utilizing Linear RB741 or standard MegaCode transmitters.
> Professional Advisory: As an e-commerce equipment distributor, we provide professional-grade parts strictly for business, contractor, and property management needs; we do not provide on-site service, repair, or installation labor. This encoder board is a sensitive electronic component that should be installed by a qualified technician. Upon delivery, please inspect the unit immediately. Claims for transit damage require clear photographic evidence of both the original packaging and the product.
