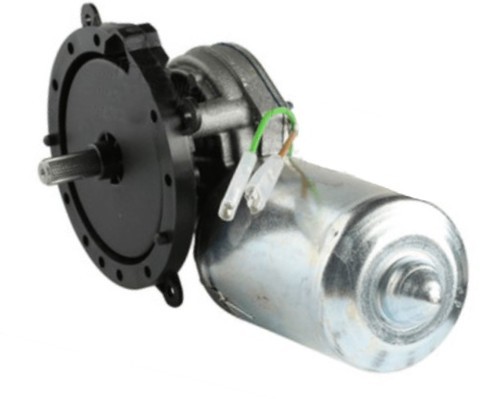

Marantec 73894, Gear Motor Assembly - M4500E / M4500EL / M4700E / M4700EL
The Marantec 73894 gear motor assembly is the drive motor replacement used in select M4500E and M4700E family openers. It provides the mechanical drive force that moves the trolley through the rail system under command from the opener electronics. In the field, this part is usually considered after a technician confirms that the garage door moves correctly by hand and the failure is inside the operator drive system rather than the door itself. Symptoms can include motor failure, excessive grinding, weak travel, stalled movement, or internal drive damage. Because M-Line openers have model-specific electronic and mechanical parts, this motor should be matched to the M4500E, M4500EL, M4700E, or M4700EL parts diagram before ordering.
Compatible With
- Marantec M4500E garage door openers
- Marantec M4500EL garage door openers
- Marantec M4700E garage door openers
- Marantec M4700EL garage door openers
- M-Line EOS operators where part 73894 is listed in the parts diagram
- Not assumed compatible with M4900E unless the parts diagram confirms 73894
- Not for Synergy, RV 8000, LC 1000, or Mac-Lift models
Features and Specifications
| Manufacturer | Marantec |
|---|
| Product Type | Gear motor assembly |
|---|
| Part Number | 73894 |
|---|
| Application | Replacement motor/gear drive assembly for select M-Line EOS openers |
|---|
| Compatible Operator Type | Marantec M4500E / M4700E family garage door openers |
|---|
| Notes | Door balance and rail condition should be checked before motor replacement |
|---|
Also Known As / Related Part Numbers
- 73894
- MAR-73894
- Marantec 73894 motor assembly
- Marantec 73894 gear motor assembly
- M4500E motor assembly
- M4500EL motor assembly
- M4700E motor assembly
- M4700EL motor assembly
Technician Note
A weak or stalled opener is often blamed on the motor, but a heavy door, broken spring, tight rollers, or damaged rail can overload a good motor. Always test the door manually before replacing the motor assembly.
Before Ordering
- Confirm the opener model is M4500E, M4500EL, M4700E, or M4700EL
- Verify part 73894 in the parts diagram or original service documentation
- Inspect the belt or chain rail, trolley, and carriage for binding
- Check the power board and harness for heat or motor-related damage
- Correct any door balance problem before operating the replacement motor
Important Ordering Warnings
- Do not use the opener to lift a door with a broken spring or serious balance problem
- This motor assembly is not a universal Marantec drive motor
Professional Advisory
Disconnect power before servicing a garage door opener. If the opener has damaged wiring, signs of heat, repeated fuse failure, unsafe door movement, or a door that will not balance by hand, have the system checked by a qualified garage door technician before replacing parts.
Product Questions and Answers
Which openers commonly use the 73894 motor assembly?
It is commonly listed for Marantec M4500E, M4500EL, M4700E, and M4700EL openers.
Will this motor fix a door that is hard to lift by hand?
No. A hard-to-lift door usually has a spring, roller, track, or balance problem that must be repaired before motor replacement.
Is this the same as a logic board?
No. The 73894 is a gear motor assembly. Logic board and power board repairs use different parts.
Can a bad motor damage the power board?
A motor or wiring fault can contribute to power board issues, so connected wiring and electronics should be inspected during repair.
Does this fit Synergy openers?
Do not assume Synergy compatibility. The 73894 is an M-Line EOS motor assembly reference and should be matched by parts diagram.
