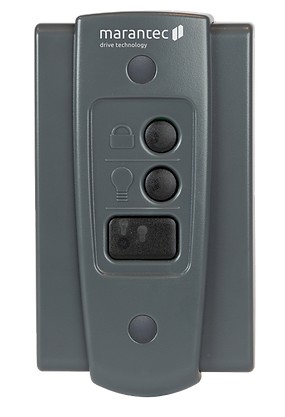

Marantec 89463, Wall Control Station 315MHz, Compatibel with all Marantec openers
The Marantec RC89463 / 89463 M3-543NL multi-function wall control panel is the inside-the-garage control station used on compatible Marantec residential garage door openers. Instead of only providing a basic door push button, this style of wall station supports the operator functions built into many Marantec units, including door activation, light control, and lock-out or vacation control when the opener supports those features.
Correct fitment matters because Marantec wall stations are tied to the opener control circuit and are not the same as a generic doorbell button or universal radio remote. This part is commonly used when the original wall station is damaged, missing, has worn buttons, or when a technician is restoring the proper Marantec interior control. Match the wall control by the opener model, old wall station number, and wiring terminals before ordering.
Compatible With
- Marantec M3-543NL and 89463 wall control applications
- EX-2005, EX-2007, LC1000, M4500, M4500e, M4500eI, M4700, M4700e, M4700eI, M4900e, M50, M55, Q7500, Q7700, Q7900, RV8000, Synergy 260, Synergy 270, Synergy 280, Synergy 360, Synergy 370, Synergy 380, Synergy LC, Synergy Solo, M-Line, Q-Line, and select Marantec garage door operators using the compatible wired wall-station connection.
- Marantec M3-543 / M3-503 related wired wall control families when confirmed by parts diagram
- Not for wireless-only wall station applications such as Command 133 / 165917
- Not for non-Marantec garage door openers unless a Marantec-compatible control interface is specifically installed
Features & Specifications
| Manufacturer | Marantec |
|---|
| Product Type | Wired multi-function wall control panel |
|---|
| Part Number | 89463 |
|---|
| Related Part Number | RC89463 / M3-543NL |
|---|
| Application | Interior wall station for compatible Marantec residential garage door openers |
|---|
| Functions | Door open/close, light control, and supported lock-out/vacation control depending on opener |
|---|
| Included Components | Wall control panel; wiring and hardware may vary by package |
|---|
| Notes | Match by opener model, original wall station, and wiring connection |
|---|
Also Known As / Related Part Numbers
- RC89463
- 89463
- M3-543NL
- M3-543
- ML-543
- Marantec wall control panel
- Marantec multi-function wall station
- Marantec 89463 wall station
Technician Note
A failed wall station can look like a bad opener if the buttons stick, the wiring is shorted, or the lock-out function is active. Check the wall-station wiring and the operator manual before replacing major control parts.
Before Ordering Checklist
- Confirm the opener is a compatible Marantec model
- Compare the old wall station part number or style
- Check the wall-control wiring for damage or shorts
- Confirm whether the customer needs wired wall control or wireless wall station
- Mount the control within sight of the door and away from moving parts
Professional Advisory
Low-voltage wall-control wiring is still part of a moving door system. Do not bypass safety features or mount the control where children can reach it. If the opener runs unexpectedly or the wiring is damaged, have a qualified garage door technician inspect the system.
Product Questions & Answers
Is RC89463 the same as Marantec 89463?
RC89463 is commonly used as a catalog or related reference for the Marantec 89463 / M3-543NL wired multi-function wall station family. Match the old wall station and wiring before ordering.
What functions does this wall station provide?
The M3-543NL style wall station is used for interior open/close control and supported operator functions such as light control and vacation or lock-out control on compatible Marantec openers.
Does this wall control work by radio frequency?
This is a wired interior wall control, not a handheld radio transmitter. The opener must have the compatible Marantec wall-control terminal connection.
Can more than one wall control be installed?
Multiple wall controls may be used on compatible Marantec systems when wired according to the opener instructions and local safety requirements.
Where should the wall control be mounted?
Install the control within sight of the garage door, away from moving parts, and high enough to prevent use by children. Follow the opener manual and local safety requirements.
