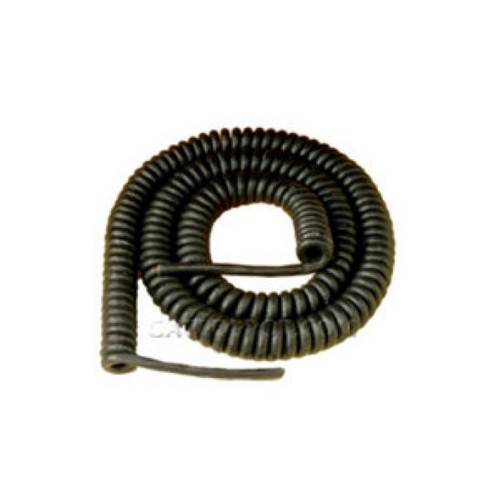

Miller Edge C183-24A Coil Cord 18 Gauge 3 Wire Conductor 24 ft. Expanded
The Miller Edge C183-24A Coil Cord 18 Gauge 3 Wire Conductor 24 ft. Expanded is a Miller Edge coil cord used to carry low-voltage sensing edge or control wiring across a moving door or gate point. This is not an operator logic board or a safety device by itself. It is the connection method between the moving edge assembly and the fixed control side of the system. Correct selection matters because a cord with the wrong conductor count, expanded length, jacket style, or monitoring configuration can create nuisance stops, open edge circuits, failed safety checks, or unsafe loose wiring during travel.
Compatibility and Application Notes
This item is compatible by wiring requirement, edge configuration, and installation layout rather than by one operator brand alone. It may be used with the following applications when the original system documentation supports the same conductor count, length, and connection style:
- Miller Edge sensing edge assemblies that require a moving-to-fixed wired connection
- Commercial sectional doors, rolling steel doors, coiling doors, and other motorized overhead door applications where the cord travel and conductor count match the installation
- Automated vehicular gate installations using a wired sensing edge where a flexible connection is required and the operator input is compatible with the edge circuit
- Miller Edge edge lead wires, junction boxes, and interface or operator input circuits when the wiring diagram calls for this conductor count
- 3-conductor sensing edge, switch, or control wiring layouts that specifically call for a C183 series coil cord
- Older or job-specific Miller Edge installations that need a third conductor for the edge/control circuit
- Commercial door and gate safety edge installations where the original cord is marked C183 or uses three active conductors
- Related 3-conductor reel applications such as RR183/RR163 style systems when the job requires a reel instead of a coil cord
- Replacement of an existing C183 coil cord with the same expanded length and termination requirements
Features & Specifications
| Manufacturer | Miller Edge |
| Product Type | Coil Cord |
| Part Number | C183-24A |
| Wire Gauge | 18 AWG |
| Conductors | 3-conductor |
| Expanded Length / Cable Travel | 24 ft. expanded |
| Application | flexible three-conductor connection for sensing edge and control wiring applications |
| Mounting / Use Style | Moving door or gate edge to fixed operator/control wiring |
| Jacket / Enclosure | Polyurethane jacket |
| Compatible Operator Type | Commercial motorized doors and automated vehicular gates using compatible Miller Edge sensing edge circuits |
| Monitoring / Circuit Note | For 3-conductor wiring layouts; do not substitute for 2-wire or 4-wire monitored circuits unless the diagram supports it. |
| Included Components | Coil cord only |
| Notes | Match conductor count, length, termination style, edge configuration, and operator/interface wiring diagram before replacing. |
Also Known As / Related Part Numbers
These numbers are included to help identify the correct Miller Edge cord or related service part. Related numbers are not always direct replacements.
Technician Note
Three-conductor Miller Edge cords are less universal than standard 2-wire cords. They should be matched to the original C183 cord or to a wiring diagram that clearly uses three active conductors. Do not leave an extra conductor unused unless the system documentation allows it.
Before Ordering Checklist
- Confirm the original Miller Edge part number or markings on the cord, reel, tag, invoice, or parts diagram.
- Match the conductor count exactly: this item is 18 AWG, 3-conductor.
- Confirm the required travel length: this item is listed as 24 ft. expanded.
- Inspect the edge configuration, operator input, and interface module before changing from 2-wire, 3-wire, or 4-wire wiring.
- Check the routing path so the cord or reel does not stretch tight, drag, rub on sharp edges, or get pinched during a full cycle.
- For monitored UL 325 style systems, keep the required monitored edge or photo eye protection in service and do not bypass safety devices.
Professional Advisory
Sensing edge wiring is part of the safety system. Do not bypass edge inputs, monitored safety devices, or photo eyes to make an operator run. If the door or gate moves unexpectedly, reverses incorrectly, shows an edge fault, or has damaged wiring, have the system inspected by a qualified gate or commercial door technician.
Product Q&A
What is the Miller Edge C183-24A coil cord used for?
The Miller Edge C183-24A is a 18 AWG, 3-conductor coil cord for sensing edge or control wiring layouts that require three conductors and a flexible connection on a moving door or gate assembly.
Can C183-24A replace a 2-wire coil cord?
Not as a simple swap. A 3-wire cord should be used when the original wiring or operator diagram calls for three conductors. Do not change the circuit design just to use an available cord.
Can C183-24A be used with Miller Edge monitored edges?
It may be used only on monitored or control circuits that specifically require three conductors. Many monitored edge systems are 2-wire resistor, diode-capacitor, or 4-wire designs instead.
How do I choose between C183-12A and C183-24A?
Choose by required expanded length. C183-12A is the 12 ft. version and C183-24A is the 24 ft. version, so door or gate travel and mounting location determine the correct length.
What should be checked before ordering C183-24A?
Confirm the original part number, active conductor count, expanded cord length, jacket style, termination method, and whether the operator uses a separate interface module for the sensing edge.
