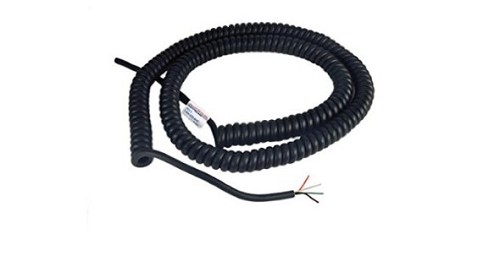

Miller Edge C184-24 Coil Cord 18 Gauge 4 Wire Conductor 24 ft. Expanded Neoprene
The Miller Edge C184-24 Coil Cord 18 Gauge 4 Wire Conductor 24 ft. Expanded Neoprene is a Miller Edge coil cord used to carry low-voltage sensing edge or control wiring across a moving door or gate point. This is not an operator logic board or a safety device by itself. It is the connection method between the moving edge assembly and the fixed control side of the system. Correct selection matters because a cord with the wrong conductor count, expanded length, jacket style, or monitoring configuration can create nuisance stops, open edge circuits, failed safety checks, or unsafe loose wiring during travel.
Compatibility and Application Notes
This item is compatible by wiring requirement, edge configuration, and installation layout rather than by one operator brand alone. It may be used with the following applications when the original system documentation supports the same conductor count, length, and connection style:
- Miller Edge sensing edge assemblies that require a moving-to-fixed wired connection
- Commercial sectional doors, rolling steel doors, coiling doors, and other motorized overhead door applications where the cord travel and conductor count match the installation
- Automated vehicular gate installations using a wired sensing edge where a flexible connection is required and the operator input is compatible with the edge circuit
- Miller Edge edge lead wires, junction boxes, and interface or operator input circuits when the wiring diagram calls for this conductor count
- 4-wire monitored Miller Edge sensing edge circuits when the operator/interface module requires a four-conductor edge connection
- Multi-conductor safety edge wiring where two separate low-voltage circuits are carried through one flexible cord
- Commercial door and gate installations using Miller Edge 4-wire electric sensing edges or monitored edge setups
- Applications where the original cord is marked C184 or has four active conductors
- Replacement of an existing C184 4-wire coil cord with the same expanded length and jacket/construction requirement
Features & Specifications
| Manufacturer | Miller Edge |
| Product Type | Coil Cord |
| Part Number | C184-24 |
| Wire Gauge | 18 AWG |
| Conductors | 4-conductor |
| Expanded Length / Cable Travel | 24 ft. expanded |
| Application | flexible four-conductor connection for monitored sensing edge and multi-conductor control wiring applications |
| Mounting / Use Style | Moving door or gate edge to fixed operator/control wiring |
| Jacket / Enclosure | Neoprene jacket per product listing |
| Compatible Operator Type | Commercial motorized doors and automated vehicular gates using compatible Miller Edge sensing edge circuits |
| Monitoring / Circuit Note | Commonly associated with 4-wire monitored or multi-circuit edge wiring where four conductors are required. |
| Included Components | Coil cord only |
| Notes | Match conductor count, length, termination style, edge configuration, and operator/interface wiring diagram before replacing. |
Also Known As / Related Part Numbers
These numbers are included to help identify the correct Miller Edge cord or related service part. Related numbers are not always direct replacements.
Technician Note
Four-conductor Miller Edge cords are commonly used where a monitored edge or multi-circuit wiring layout needs four conductors. Before replacing, confirm whether all four conductors are active and how they terminate at the edge, junction box, interface module, or operator.
Before Ordering Checklist
- Confirm the original Miller Edge part number or markings on the cord, reel, tag, invoice, or parts diagram.
- Match the conductor count exactly: this item is 18 AWG, 4-conductor.
- Confirm the required travel length: this item is listed as 24 ft. expanded.
- Inspect the edge configuration, operator input, and interface module before changing from 2-wire, 3-wire, or 4-wire wiring.
- This listing uses neoprene jacket wording. Some supplier copy for similar C184 24 ft. cords may describe polyurethane jacket material, so match the conductor count, expanded length, and jacket requirement for the job.
- Check the routing path so the cord or reel does not stretch tight, drag, rub on sharp edges, or get pinched during a full cycle.
- For monitored UL 325 style systems, keep the required monitored edge or photo eye protection in service and do not bypass safety devices.
Professional Advisory
Sensing edge wiring is part of the safety system. Do not bypass edge inputs, monitored safety devices, or photo eyes to make an operator run. If the door or gate moves unexpectedly, reverses incorrectly, shows an edge fault, or has damaged wiring, have the system inspected by a qualified gate or commercial door technician.
Product Q&A
What is the Miller Edge C184-24 coil cord used for?
The Miller Edge C184-24 is a 18 AWG, 4-conductor coil cord used where a compatible sensing edge or control circuit requires four conductors through a flexible moving connection.
Is C184-24 commonly used with monitored sensing edges?
Yes, C184 series cords are commonly associated with 4-wire monitored or multi-conductor sensing edge wiring when the operator or interface module requires four conductors.
Can C184-24 replace a 2-wire C182 cord?
No, not as a direct replacement. A 4-wire cord should only replace a 2-wire cord if the control circuit is being wired according to an approved diagram that actually requires four conductors.
How do I choose between 12 ft. and 24 ft. C184 cords?
Match the door or gate travel and mounting location. The cord should move freely through the full cycle without stretching tight, dragging, or getting caught in the opening.
What is the main compatibility concern with C184-24?
The main concern is conductor count and monitoring style. Match the original C184 part number, edge configuration, interface module, and operator input before replacing the cord.
