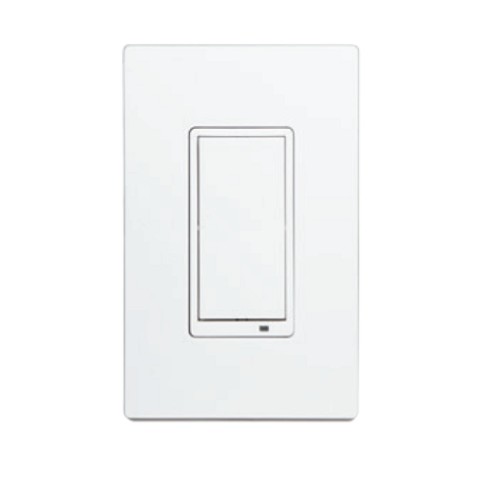

Nortek GoControl WT00Z5-1: Z-Wave Smart 3-Way Switch/Dimmer 908.42 MHz 100ft
The WT00Z5-1 is a GoControl / Nortek / Linear Z-Wave accessory dimmer switch designed for virtual 3-way control. Unlike a standard in-wall dimmer, it does not switch the lighting load directly. Instead, it communicates with an associated Z-Wave load-control device or hub. This is especially useful when a customer wants a second wall location for on/off or dimming control without installing a traveler wire between switches.
The most important product-page warning is that WT00Z5-1 is an accessory controller, not the main load dimmer. If the customer is replacing the actual load-bearing switch, they may need a compatible Z-Wave dimmer or switch such as a WD/WS-style device, not this accessory unit by itself. Z-Wave network compatibility should be confirmed with the hub, association group support, device generation, and local electrical code requirements.
Compatible With
Compatible Systems
- North American Z-Wave networks using 908.42 MHz
- Compatible Z-Wave controllers/hubs that support association or scene control
- Associated Z-Wave dimmers or switches capable of receiving commands from an accessory controller
- Virtual 3-way, 4-way, 5-way, 6-way, or 7-way lighting control applications when supported by the system
Related Device Families
- GoControl / Linear / Nortek Z-Wave lighting devices
- WD500Z5-1 and related Z-Wave dimmer references, verify system design
- WS15Z5-1 and related Z-Wave switch references, verify system design
Not For
- Direct load switching by itself
- Traditional hardwired 3-way traveler-only installations without Z-Wave association
- Non-North-American Z-Wave frequency systems
Features & Specifications
| Manufacturer | Nortek / GoControl / Linear |
|---|
| Product Type | Z-Wave accessory dimmer switch |
|---|
| Part Number | WT00Z5-1 |
|---|
| Frequency | 908.42 MHz North American Z-Wave |
|---|
| Application | Virtual 3-way or multi-way lighting control |
|---|
| Load Control | Does not directly control a load |
|---|
| Range | Up to 100 ft line of sight, site dependent |
|---|
| Associations | Commonly listed for association groups and multi-way control with compatible devices |
|---|
| Color | White wall-mount style, verify current package |
|---|
Also Known As / Related Part Numbers
- WT00Z5-1
- WT00Z51
- WT00Z5
- GoControl WT00Z5-1
- Linear WT00Z5-1
- Nortek WT00Z5-1
- Z-Wave accessory dimmer
- Z-Wave 3-way accessory switch
- Related: WD500Z5-1, WS15Z5-1, verify separately
Technician Note
Make sure the customer understands this is the accessory switch. It needs a compatible Z-Wave device or controller to control the actual lighting load.
Before Ordering
- Confirm the installation uses North American Z-Wave at 908.42 MHz.
- Confirm a compatible load-controlling Z-Wave dimmer/switch is already installed or being purchased.
- Verify the hub supports the needed association or scene-control setup.
- Do not use this as the only device in a lighting circuit that needs direct load control.
- Have line-voltage wiring handled according to local electrical code.
Professional Advisory
This product installs in an electrical wall box. Line-voltage wiring should be done by a qualified person following local code. Do not install it as a direct load switch unless the manufacturer instructions specifically support the circuit design.
Product Q&A
Does WT00Z5-1 directly control a light?
No. It is an accessory dimmer/switch that controls associated Z-Wave devices. It does not directly switch the lighting load.
What frequency does it use?
WT00Z5-1 uses the North American Z-Wave frequency of 908.42 MHz.
Can it create a virtual 3-way switch?
Yes, when paired and associated with compatible Z-Wave devices or supported by the hub/controller.
Does it need a traveler wire?
No traditional traveler wire is normally needed for the virtual 3-way function, but the device still requires proper power wiring in the wall box.
Will it work with every Z-Wave hub?
Not always. Basic inclusion may work, but association, scene control, and status behavior depend on the controller and device support.
