US Automatic 510220 Patriot RSL Gear Motor

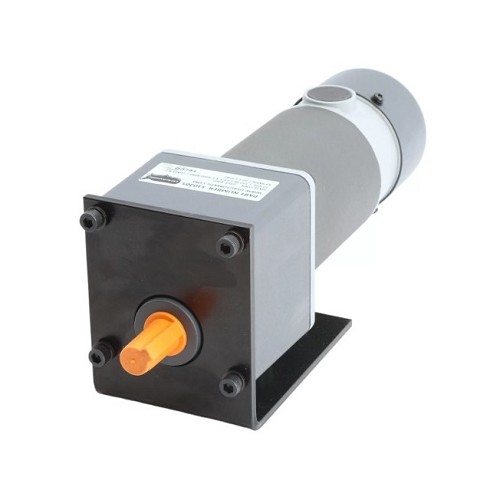

The US Automatic 510220 is a replacement gear motor assembly for the Patriot RSL residential slide gate operator family. In a Patriot RSL system, the gear motor drives the chain and sprocket arrangement that moves the sliding gate open and closed. This assembly is commonly replaced when the motor runs poorly, the gear train is noisy, the output drive is worn, or the operator can no longer move a properly rolling gate under normal load. It includes the bracket and 16 tooth output sprocket called out in common listings, but the separate motor sprocket part number 580030 is not included. Correct identification is important because Patriot RSL slide gate drive parts are different from Patriot swing actuator parts and similar sprockets or gear motors may not line up correctly.
Common replacement indicators include a non-driving Patriot RSL operator, motor noise without proper gate movement, worn output drive components, repeated chain drive issues after chain adjustment, or a confirmed failed gear motor after power and obstruction checks.
Compatible With
This gear motor is for select US Automatic Patriot RSL slide gate opener applications. Verify the original gear motor and parts diagram, especially if the existing unit is labeled 510201.
- US Automatic Patriot RSL slide gate operator
- Patriot RSL residential/light commercial slide gate systems
- Patriot RSL chain drive applications rated up to 32 ft and 1000 lb when operator model and configuration match
- Service replacement direction for earlier 510201 Patriot RSL gear motor references where confirmed
- Not for Patriot swing actuator operators, Ranger swing operators, or Sentry swing operators
Features and Specifications
| Manufacturer | US Automatic |
| Product Type | Slide gate gear motor assembly |
| Part Number | 510220 |
| Application | Patriot RSL slide gate drive motor service |
| Compatible Operator Type | Patriot RSL slide gate opener |
| Included Components | Gear motor, mounting bracket, 16 tooth output sprocket |
| Related Component | 580030 motor sprocket not included |
| Notes | Match chain, sprocket, and original parts diagram before ordering |
Also Known As / Related Part Numbers
The following numbers and phrases are commonly associated with this Patriot RSL gear motor or related service parts.
- 510220
- US-510220
- USA-510220
- US Automatic 510220
- USAutomatic 510220
- Patriot RSL gear motor
- Patriot RSL slide gate motor
- 510201 related earlier gear motor reference
- 580030 related motor sprocket, not included
- Patriot RSL 16 tooth output sprocket gear motor
Technician Note
If the Patriot RSL gate is hard to roll by hand, replacing the gear motor will not solve the root problem. Check the gate track, rollers, chain tension, idler roller, and sprockets before installing a new motor assembly.
Before Ordering Checklist
- Confirm the operator is a US Automatic Patriot RSL slide gate opener
- Compare the existing gear motor to 510220 or related 510201 references
- Inspect whether separate sprocket 580030 is needed
- Check #41 chain, idler roller, gate rollers, and chain alignment
- Verify battery and charging system condition before motor replacement
Professional Advisory
Slide gate drive service can create pinch and crush hazards. Disconnect power, secure the gate, and use a qualified gate technician if drive alignment, chain tension, or electrical testing is uncertain.
Important Ordering Warnings
Do not order this part for a Patriot swing gate actuator. Patriot RSL is the slide gate operator family and uses different drive components.
Product Questions and Answers
Does 510220 include the 580030 motor sprocket?
No. Common listings state that motor sprocket 580030 is not included. Inspect the existing sprocket and order it separately if needed.
Is 510220 related to 510201?
Yes. Some references list 510220 as a direct replacement direction for 510201 Patriot RSL gear motor applications. Confirm with the current parts diagram.
What operator does this gear motor fit?
It is for select US Automatic Patriot RSL slide gate operators, not Patriot swing, Ranger, or Sentry actuator systems.
Why should the gate be checked before replacing the motor?
A binding slide gate, bad rollers, tight chain, or worn sprocket can overload a new motor and cause repeat failure.
Does this part include the entire Patriot RSL operator?
No. It is a gear motor service assembly with bracket/output sprocket, not a complete slide gate operator package.
