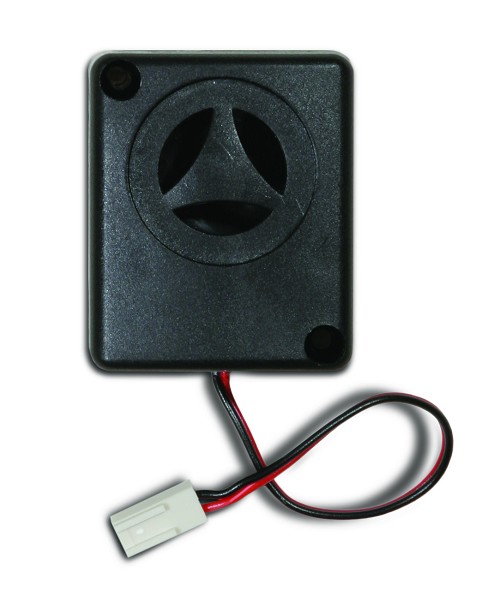

US Automatic 530015 12 VDC Siren
The US Automatic 530015 is a 12 VDC audible siren used as a warning or alarm device on compatible US Automatic gate opener installations. The siren provides a loud 105 dB output when energized by the appropriate low-voltage control circuit. In the field, this type of part may be used to replace a failed alarm sounder, add audible gate-system feedback where supported, or restore the original warning function on an operator that no longer produces sound. It is important to understand that the siren is an accessory warning device, not a safety sensor and not a control board. A siren that is constantly sounding can be caused by wiring, obstruction, entrapment input, control-board programming, or alarm logic issues rather than a bad siren.
Common replacement reasons include no audible alarm when the siren output is active, a physically damaged siren, water-damaged housing, broken leads, or weak/garbled sound after voltage has been confirmed.
Compatible With
This siren is commonly associated with US Automatic low-voltage gate opener warning circuits. Verify the operator manual and 12 VDC output before wiring.
- Select US Automatic Patriot swing gate opener applications
- Select US Automatic Patriot RSL slide gate operator warning/alarm applications where supported
- Select US Automatic Ranger and Sentry gate opener systems with compatible 12 VDC accessory/alarm output
- US Automatic operators calling for 530015 siren in the parts or accessories list
- Not a monitored safety device, photo eye, edge sensor, or obstruction detector
Features and Specifications
| Manufacturer | US Automatic |
| Product Type | Warning siren |
| Part Number | 530015 |
| Application | Audible alarm or warning output |
| Voltage | 12 VDC |
| Sound Output | 105 dB listed rating |
| Compatible Operator Type | Select US Automatic gate operators with compatible 12 VDC siren output |
| Included Components | Siren only |
Also Known As / Related Part Numbers
The following numbers and phrases are commonly associated with this siren.
- 530015
- US-530015
- USA-530015
- US Automatic 530015
- USAutomatic 530015
- 12 VDC siren
- 105 dB siren
- Patriot siren
- Gate opener warning siren
- US Automatic alarm siren
Technician Note
Before replacing a siren that sounds constantly, check the operator alarm condition, safety inputs, accessory wiring, and board output. The siren may only be reporting a problem elsewhere in the system.
Before Ordering Checklist
- Confirm the system uses a 12 VDC siren output
- Verify the siren is the failed item with voltage testing
- Check for damaged wiring or water intrusion
- Confirm the siren is not being used as a substitute for a required safety device
- Review operator alarm codes or troubleshooting before replacement
Professional Advisory
Do not connect this siren to high voltage. If the control board, safety inputs, or alarm outputs need diagnosis, use a qualified gate technician.
Important Ordering Warnings
A siren does not provide entrapment protection and must not be used to bypass or replace required monitored safety devices.
Product Questions and Answers
What voltage does the 530015 siren use?
It is a 12 VDC siren.
How loud is this siren?
It is commonly listed as a 105 dB siren.
Is this a safety device?
No. It is an audible warning or alarm device and does not replace monitored photo eyes, safety edges, or other required protection.
Can it be used on all US Automatic operators?
It is commonly listed for US Automatic operator applications, but the wiring output and operator manual should be verified.
Why does my siren keep sounding?
A constantly sounding siren may indicate an alarm condition, wiring fault, obstruction issue, safety input problem, or board output problem, not necessarily a failed siren.
