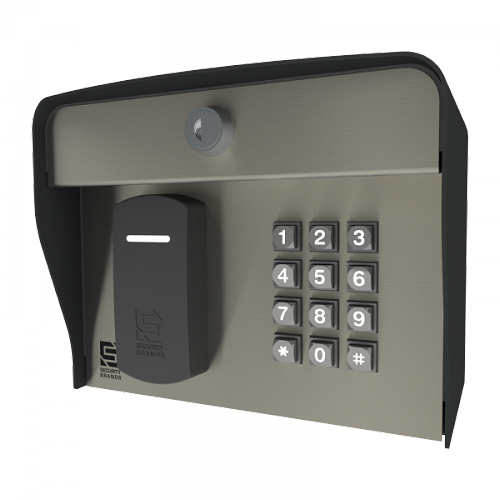

Security Brands 23-100KP RemotePro CR SecurePass Post Mount Card Reader with Keypad
The 23-100KP is the combination reader-and-keypad model in the Security Brands RemotePro CR family. It is useful on access points where customers want both prox-card convenience and keypad backup or code entry. The SecurePass CR reader side handles compatible card or fob credentials, while the keypad side allows code entry when the connected controller supports that use. Both are intended to interface with a Wiegand master controller rather than directly controlling the gate operator by themselves. This makes the unit a good match for managed access systems, multi-user sites, commercial gates, and controlled doors where credential control matters. Fitment must be verified by controller type, Wiegand format, credential technology, and physical post-mount requirements. Do not confuse this model with reader-only 23-100 or HID-reader variants.
Compatible With
Designed for compatible 26-bit Wiegand master controllers where both card reader and keypad input are needed.
- Security Brands Ascent Family controllers, select models
- Security Brands Edge Family controllers
- Other compatible 26-bit Wiegand master controllers
- Security Brands SecurePass credential systems where supported
- Gate access-control systems needing post-mounted card reader plus keypad
- Door or pedestrian access systems using a Wiegand reader/keypad input
- RemotePro CR family installations requiring reader and keypad in one station
Features & Specifications
| Manufacturer | Security Brands / American Access Systems |
|---|
| Product Type | Post-mount Wiegand card reader with keypad |
|---|
| Part Number | 23-100KP |
|---|
| Application | Combined credential reader and keypad station for access-control systems |
|---|
| Compatible System Type | 26-bit Wiegand access-control systems |
|---|
| Security / Output Technology | SecurePass CR1 reader and keypad, 26-bit Wiegand output |
|---|
| Power | Power from compatible access-control wiring/controller per instructions |
|---|
| Mounting | Post mount / pedestal style |
|---|
| Included Components | Reader/keypad station only unless specified by package |
|---|
| Notes | Requires compatible controller and supported credentials |
|---|
Also Known As / Related Part Numbers
Related references include reader/keypad, reader-only, and intercom variants. Verify the exact feature set before ordering.
- 23-100KP
- 23100KP
- 23-100-KP
- RemotePro CR with Keypad
- RemotePro CR SecurePass with keypad
- SecurePass CR1 reader with keypad
- Security Brands 23-100KP
- AAS 23-100KP
- 23-100 reader-only related item
- 23-100I intercom related item
- 40-CR1 related SecurePass reader technology
Technician Note
If either the reader or keypad function is not working, troubleshoot them separately. The keypad may require its own programming steps, while credential acceptance depends on the controller and card/fob format.
Before Ordering
- Confirm the controller supports the required Wiegand inputs and credential formats.
- Confirm the customer needs reader plus keypad, not reader-only.
- Verify SecurePass card/fob format and facility-code requirements.
- Check post-mount enclosure space, wire routing, and low-voltage power.
- Review controller programming before adding the reader/keypad station.
Important Ordering Warnings
- Do not assume HID, SecurePass, MIFARE, EM, or other credential formats are interchangeable without controller and reader confirmation.
- This product does not replace a master controller, gate safety device, or gate operator board.
Professional Advisory
Wiegand access-control wiring should be performed by a qualified installer familiar with the master controller, power supply, reader wiring, and site safety requirements. This product controls access credentials only and does not replace required gate or door safety devices.
Product Questions & Answers
What does the 23-100KP include?
It combines a SecurePass CR proximity reader with a keypad in a post-mounted RemotePro CR station.
Is the 23-100KP standalone?
No. It is designed to connect to a compatible Wiegand access-control master controller.
How is it different from 23-100?
23-100 is reader-only. 23-100KP includes both the card reader and keypad.
Can it work with Ascent or Edge controllers?
It is commonly associated with select Security Brands Ascent and Edge controllers and other compatible 26-bit Wiegand controllers.
What should be verified before ordering?
Verify controller compatibility, credential type, Wiegand format, mounting style, and whether reader-plus-keypad functionality is required.
