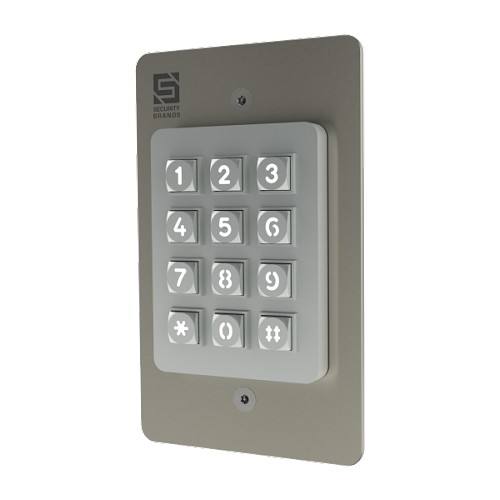

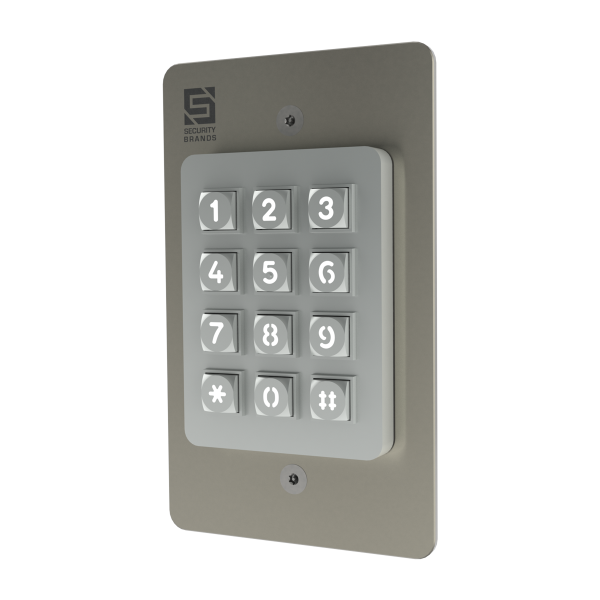

Security Brands 26-100SGL Advantage DKE 100-Code Single-Gang Keypad
The Security Brands 26-100SGL is the single-gang member of the Advantage DKE economy keypad family. Unlike the 26-500 post-mount keypad, this model is intended for single-gang mounting where a compact keypad is needed at a wall, column, pedestrian entry, or protected control point. It is a standalone keypad, so it does not require cloud software or a cellular subscription. Correct fitment matters because this single-gang model has a different physical format and lower code capacity than the 26-500 DKE and ADV-1000 DK keypads.
Common replacement reasons include worn keypad buttons, a failed relay output, damaged faceplate, adding keypad control to a pedestrian gate or door, or replacing an older 26-100SG / 26-100SGL installation where the same compact mount style is needed.
Compatible With
Compatibility depends on the exact model, wiring, access-control layout, and site configuration. Use the list below as a researched fitment guide and verify the original part number, product family, and installation requirements before ordering.
- Security Brands / AAS Advantage DKE 100-code single-gang keypad applications
- American Access Systems 26-100SG and 26-100SGL style installations when mounting and wiring match
- Gate operators and door controllers with dry-contact access input terminals
- Pedestrian gates, controlled doors, small residential gates, and protected access points needing 100-code keypad control
- Single-gang junction box installations where this model format is supported
- Not the same as 26-500 post-mount 500-code keypad or ADV-1000 1000-code keypad
Features and Specifications
| Manufacturer | Security Brands / American Access Systems |
|---|
| Product Type | Standalone economy digital keypad |
|---|
| Part Number | 26-100SGL |
|---|
| Related Model Reference | 26-100SG |
|---|
| Product Family | Advantage DKE |
|---|
| Mount Style | Single gang |
|---|
| Code Capacity | 100 four-digit codes |
|---|
| Controlled Points | Typically 1 gate/door |
|---|
| Input Power | 12-24 VAC or VDC |
|---|
| Output | N/O or N/C contact, adjustable relay time |
|---|
| Features | Personal master code, latch code, variable relay time, audible feedback, non-volatile memory |
|---|
| Faceplate / Enclosure | Stainless-steel faceplate / steel enclosure depending on package |
|---|
| Notes | Compact single-gang keypad; no intercom or cellular control |
|---|
Also Known As / Related Part Numbers
- 26-100SGL
- 26-100SG
- 26100SGL
- 26100SG
- 26-100 SGL
- Advantage DKE 100 Code Single Gang
- AAS 26-100SGL
- Security Brands 26-100SGL
- American Access Systems 26-100SG
- Related models: 26-500, ADV-1000, 19-100
Technician Note
Match the physical mounting first. A single-gang keypad will not drop into a post-mount enclosure without changing the installation hardware and wiring approach.
Before Ordering
- Confirm the site needs the single-gang style keypad.
- Confirm 100-code capacity is sufficient.
- Confirm 12-24 VAC/DC power is available.
- Confirm relay contact style needed by the operator or lock controller.
- Confirm the location is suitable for the keypad enclosure and exposure rating.
Important Ordering Warnings
- Do not assume a 26-100SGL can replace a 26-500 without changing mounting style and code capacity.
- Do not bypass required access-control or life-safety devices during installation.
- Use a qualified technician if door lock or gate operator wiring is unclear.
Professional Advisory
For access-control equipment tied into a powered gate operator, door operator, electric strike, or magnetic lock, installation and troubleshooting should be handled by a qualified access-control or gate technician. Do not bypass required safety devices, emergency-access requirements, or local code requirements during installation.
Product Questions and Answers
How many codes does the 26-100SGL hold?
The 26-100SGL is the 100-code single-gang Advantage DKE keypad.
Is 26-100SGL the same as 26-100SG?
They are commonly associated as single-gang Advantage DKE model references, but verify the exact label and package before ordering.
Can this replace a 26-500 keypad?
Usually not directly. The 26-500 is a 500-code post-mount keypad, while the 26-100SGL is a compact single-gang keypad.
Does it require internet or cellular service?
No. It is a standalone wired keypad.
What does the relay connect to?
The relay output normally connects to the gate operator, door controller, strike relay, or other access input that accepts a dry-contact trigger.
