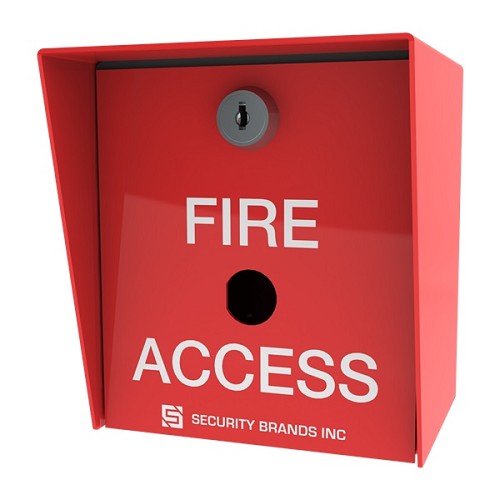

Security Brands 15-013 Fire Access Box for Knox Key Switch
The Security Brands 15-013 is a fire access box for sites that require a Knox key switch style emergency access station. It gives first responders a dedicated, easily visible red access point at the gate or entry location. In the field, fire access boxes are commonly required by the authority having jurisdiction so emergency personnel can enter without damaging the gate or waiting for a resident, guard, or property manager. The 15-013 is not a padlock model and not the cable-release model; it is the version designed around Knox key switch use. Because fire access rules are local, the exact switch, wiring method, mounting position, and approval process should be confirmed with the local fire department before installation.
Compatible With
- Security Brands / AAS 15 Series fire access box installations
- Knox key switch emergency access applications where the local fire department approves this style
- Post-mounted gate, community, commercial, and secured-entry emergency access stations
- Access-control systems or gate operators with a compatible fire access input when wired by a qualified installer
- Related 15 Series models including 15-011, 15-014, 15-015, 15-016, and 15-021 for different activation methods
- Not a padlock fire box and not a cable-release fire box
Features and Specifications
| Manufacturer | Security Brands / American Access Systems |
|---|
| Product Type | Fire access box |
|---|
| Part Number | 15-013 |
|---|
| Application | Knox key switch emergency access station |
|---|
| Mount Style | Post mount / standalone station |
|---|
| Material / Finish | 16-gauge bright-red powder-coated steel faceplate and enclosure |
|---|
| Dimensions | 5.25 in H x 4.75 in W x 4.50 in D |
|---|
| Shipping Weight | 4 lbs listed by manufacturer; specs area may show 5 lbs |
|---|
| Related Family | 15 Series fire access boxes |
|---|
| Notes | Confirm local fire department and AHJ requirements |
|---|
Also Known As / Related Part Numbers
- 15-013
- 15013
- Security Brands 15-013
- AAS 15-013
- American Access 15-013
- 50-013 search variation
- Fire Access Box for Knox Key Switch
- 15 Series fire access box
- 15-011 related Knox or padlock version
- 15-014 padlock version
- 15-015 cable release version
- 15-016 cable release repair kit
- 15-021 micro fire access box
Technician Note
Fire access boxes should be selected by the activation method required by the local fire department: Knox key switch, padlock, cable release, or another approved method. Do not substitute one 15 Series model for another without approval from the authority having jurisdiction.
Before Ordering
- Confirm the manufacturer part number and any old/new part number references.
- Match the product family and application, not just the brand name.
- Check voltage, frequency, activation method, receiver family, or battery type as applicable.
- Review the existing wiring, mounting location, and enclosure before replacing the part.
- For fire access or line-voltage work, confirm local code and use a qualified professional when required.
Important Ordering Warnings
- Uploaded product name references 50-013, but the manufacturer part number is 15-013. I used 15-013 as the primary manufacturer number and kept 50-013 as a search/reference variation.
Professional Advisory
Access-control and power-management parts should be installed in accordance with the gate operator, access controller, local code, and site safety requirements. For high-voltage wiring, fire department access, or unsafe gate movement, use a qualified gate technician or licensed professional where required.
Product Questions and Answers
Is the 15-013 the Knox key switch version?
Yes. The 15-013 is the Security Brands fire access box designed to be used with a Knox key switch.
Is this the same as the padlock model?
No. The padlock model is 15-014. The 15-013 is for Knox key switch use.
Does the local fire department need to be involved?
Yes. Fire access products should be approved by the local fire department or authority having jurisdiction before installation.
Can this be wired to a gate operator?
It may be wired to a compatible fire access input when the operator and local requirements support that method. A qualified installer should handle wiring.
What other 15 Series versions are related?
Related versions include 15-011, 15-014, 15-015, 15-016, and 15-021, but they use different activation or repair functions.
