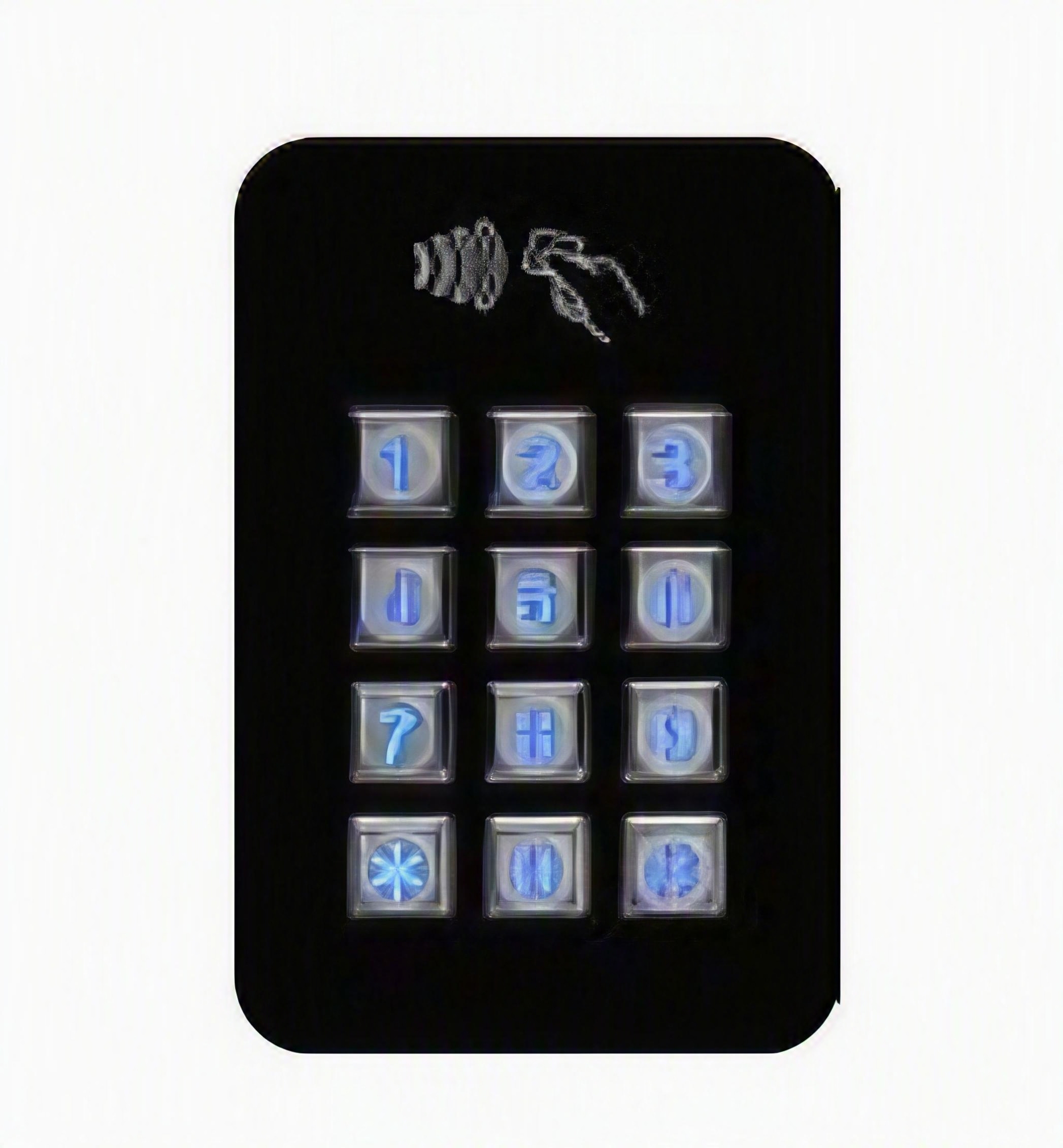

AES MOD-PRIME-PX-KP, Assembled Prime Keypad and 125KHz Prox Module for Prime Edge
The AES MOD-PRIME-PX-KP is an assembled Prime keypad and 125 kHz proximity module for select AES Global Prime Edge and modular access-control systems. It combines keypad entry and prox credential reading in one module, giving compatible AES installations a single accessory for PIN-code access and proximity-card or fob access.
This module is commonly described as a combined prox and keypad module for the AES CellcomPrime / modular range. It should be selected by part number, system series, panel layout, credential frequency, and wiring requirements. Do not treat it as a complete intercom or full access-control system by itself.
What This Keypad and Prox Module Does
The MOD-PRIME-PX-KP adds keypad and proximity-reader functionality to compatible AES modular access systems. Depending on the AES system and site programming, users may be able to enter a PIN code, present a compatible 125 kHz prox card or fob, or use the module as part of a controlled gate, door, or building-entry setup.
The module is typically used with an AES modular intercom or access-control panel where the main system handles call functions, control logic, relay operation, user management, and release commands. The keypad/prox module is one part of that larger system.
Compatible With
This keypad and prox module may be used with the following applications where the current AES documentation, panel layout, or installer plan confirms fitment:
- Select AES Prime Edge modular access-control installations
- Select AES CellcomPrime / modular range panel configurations where MOD-PRIME-PX-KP is listed
- AES modular intercom systems that support a combined keypad and proximity module
- Gate, door, building, and community-entry systems requiring both PIN entry and 125 kHz prox credential access
- Repairs or upgrades where the original module is marked, listed, or cross-referenced as MOD-PRIME-PX-KP
Important: Do not assume this module works with every AES intercom, every Prime unit, or every access-control panel. Confirm the exact AES system, module bay, wiring connection, software/app support, credential type, and panel layout before ordering.
Credential and Frequency Compatibility
The provided product description identifies this as a 125 kHz prox module. That frequency matters. A 125 kHz prox reader is not the same as a 13.56 MHz smart-card reader, MIFARE reader, DESFire reader, Bluetooth credential reader, or mobile-credential reader.
If a site already has existing cards or fobs, confirm the credential technology before ordering. Matching the frequency alone may not guarantee compatibility if the credential format, facility code, card number format, or AES programming requirements do not match the system.
Similar Parts That Are Not Interchangeable
AES modular parts can look similar from the front of the panel. Keypad-only modules, prox-only modules, combined keypad/prox modules, speaker modules, call-button modules, and blank modules serve different functions and should not be substituted without checking the AES parts documentation.
| Part / Component | Common Description | Interchangeability Note |
| MOD-PRIME-PX-KP | Combined Prime keypad and 125 kHz prox module | Use where the AES Prime / modular system calls for the assembled keypad and prox module |
| MOD-PRIME-KP | Prime keypad module | Keypad-only module; not the same as the combined keypad/prox version |
| MOD-PRIME-PX | Prime 125 kHz prox module | Prox-only module; not the same as the combined keypad/prox version |
| MOD-MULTI-PX-KP | Combined prox and keypad module for other AES modular configurations | Related combined module, but not automatically interchangeable with the Prime version |
| Prime Edge intercom / controller | Main access-control or intercom head unit | The MOD-PRIME-PX-KP is an accessory module, not the complete Prime Edge system |
Not Intended For
- Use as a complete intercom, cellular entry system, controller, or stand-alone access-control panel
- Replacing a Prime Edge speaker module, SIM/cellular module, call-button module, relay board, power supply, or enclosure
- Sites requiring 13.56 MHz smart-card, MIFARE, DESFire, Bluetooth, or mobile credential support unless the AES system specifically confirms compatibility
- Non-AES panels unless the installer confirms physical, electrical, and software compatibility
- Bypassing gate operator safety inputs, door release protections, fire access requirements, or required access-control safeguards
Important Compatibility Warning
The AES MOD-PRIME-PX-KP should be ordered only when the AES system and panel layout call for the combined Prime keypad and 125 kHz prox module. If the job only needs keypad entry, a keypad-only module may be more appropriate. If the job only needs card/fob access, a prox-only module may be the correct module instead.
For replacement work, match the part number on the existing module when possible. If the site uses existing prox credentials, confirm the credential frequency and format before ordering. A 125 kHz reader will not read 13.56 MHz smart credentials unless the manufacturer specifically supports that credential technology.
Features & Specifications
| Feature / Specification | Details |
| Manufacturer | AES Global |
| Part Number | MOD-PRIME-PX-KP |
| Product Type | Combined keypad and proximity reader module |
| Series / Range | AES Prime Edge / CellcomPrime / modular range where specified |
| Credential Frequency | 125 kHz prox, based on provided product description |
| Keypad Function | PIN-code entry where supported by the AES system |
| Input Voltage Note | Common listings show 24VDC; verify current AES wiring requirements before installation |
| Color / Finish | Common listings show black finish |
| Package Contents | Assembled keypad and prox module; confirm included cards, fobs, harnesses, mounting hardware, trim, and instructions before ordering |
Also Known As / Related Part Numbers
- MOD-PRIME-PX-KP
- MOD PRIME PX KP
- AES MOD-PRIME-PX-KP
- AES Global MOD-PRIME-PX-KP
- AES Combined Prox and Keypad Module
- AES Combined Proximity Card Reader and Keypad Module
- AES Prime Keypad and Prox Module
- AES Prime Edge Keypad and 125 kHz Prox Module
- AES CellcomPrime Combined Prox and Keypad Module
- MOD-PRIME-KP - related keypad-only module, not the same part
- MOD-PRIME-PX - related 125 kHz prox-only module, not the same part
- MOD-MULTI-PX-KP - related combined prox and keypad module for other AES modular configurations, not automatically interchangeable
Related Parts and Accessories
- MOD-PRIME-KP keypad-only module where PIN entry is needed without prox credentials
- MOD-PRIME-PX prox-only module where 125 kHz credential access is needed without a keypad
- AES Prime Edge / CellcomPrime speaker or controller module where the main intercom/access system is being built or repaired
- Compatible 125 kHz prox cards or fobs where credential access is being added
- Relay, strike, magnetic lock, gate operator input, or access-control wiring components required by the site design
- Mounting hardware, modular frame parts, trim, and enclosure components matched to the AES panel layout
Technician Note
Before replacing or adding the MOD-PRIME-PX-KP, confirm how the AES system is supposed to manage users. Some sites need keypad PIN entry, some need prox card/fob access, and some need both. The module should match the access method the property actually uses.
Do not overlook credential compatibility. A 125 kHz prox module is not the same as a smart-card reader. If the customer already has credentials, test or verify the card technology before ordering the module. If the system is being upgraded for better credential security, confirm whether the AES platform supports the desired reader technology.
Before Ordering, Confirm
- The required part number is MOD-PRIME-PX-KP.
- The system is a compatible AES Prime Edge / CellcomPrime / modular installation.
- The panel layout accepts the assembled combined keypad and prox module.
- The site needs both keypad entry and 125 kHz prox credential access.
- The existing cards or fobs are compatible with the 125 kHz prox reader and AES programming requirements.
- The module wiring, 24VDC power requirement where applicable, harness, and controller connection match the AES installation plan.
- The package contents are understood, including whether cards, fobs, mounting hardware, wiring, or instructions are included.
- The access-control relay, gate operator input, door strike, maglock, or controller programming is handled separately where needed.
Installation and Service Notes
- Disconnect power before installing or servicing the module.
- Confirm the module position and panel opening before mounting.
- Follow AES wiring instructions for power, communication, and any required module connections.
- Do not force the module into a non-matching panel opening or enclosure.
- Program users, PINs, and credentials according to the AES system instructions.
- Test keypad entry and prox credential entry separately after installation.
- Confirm relay output, gate or door release behavior, access logs where available, and any time-zone or access-level programming.
- Do not bypass gate safety devices, fire access requirements, door hardware protections, or operator safeguards during access-control testing.
Professional Advisory
The AES MOD-PRIME-PX-KP should be installed by a qualified access-control or gate technician familiar with AES Prime Edge / modular systems, low-voltage wiring, credential programming, gate operator inputs, door release circuits, and site security requirements.
For gated communities, commercial properties, and building entry systems, confirm the access sequence before putting the system into service. PIN entry, prox access, postal access, fire access, resident access, visitor calling, and gate or door release functions should all be tested without bypassing required safety or security devices.
Product Questions & Answers
What is the AES MOD-PRIME-PX-KP?
The AES MOD-PRIME-PX-KP is an assembled combined keypad and 125 kHz proximity module for select AES Prime Edge / CellcomPrime modular access-control systems.
Does MOD-PRIME-PX-KP include both keypad and prox functions?
Yes. MOD-PRIME-PX-KP combines keypad entry and proximity-reader access in one module for compatible AES modular systems.
Is MOD-PRIME-PX-KP a complete intercom system?
No. MOD-PRIME-PX-KP is an accessory module. It does not replace the main AES intercom, controller, speaker module, relay equipment, enclosure, or access-control programming.
What credential frequency does this module use?
The provided product description identifies this as a 125 kHz prox module. Existing cards or fobs should be verified for frequency and format before ordering.
Is MOD-PRIME-PX-KP the same as MOD-PRIME-KP?
No. MOD-PRIME-KP is a keypad-only module. MOD-PRIME-PX-KP is the combined keypad and prox module.
Is MOD-PRIME-PX-KP the same as MOD-PRIME-PX?
No. MOD-PRIME-PX is the prox-only module. MOD-PRIME-PX-KP combines the prox reader and keypad in one module.
Should a technician install the MOD-PRIME-PX-KP?
Yes. Installation may involve AES module wiring, panel fitment, credential setup, keypad programming, relay testing, and gate or door release verification, so it should be handled by a qualified access-control or gate technician.
