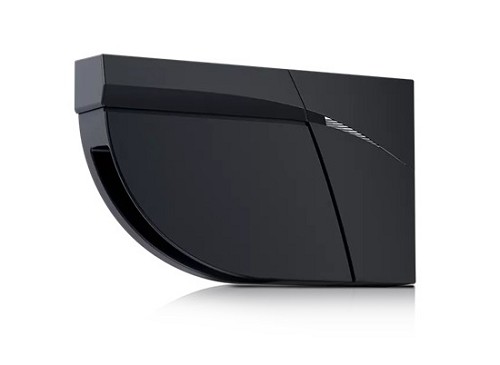

BEA 10LZRFLATSCAN-RB, LZR-FLATSCAN SW Right Black Sensor Only
The BEA 10LZRFLATSCAN-RB LZR-FLATSCAN SW sensor-only replacement is part of BEA's door-mounted laser safety sensor family for automatic pedestrian swing doors. This product is used where the door needs a compact sensor on the moving leaf to watch the door face and hinge area instead of relying on older multi-box swing-door safety layouts. The LZR-FLATSCAN SW platform uses laser Time-of-Flight presence detection and is commonly selected for low-energy pedestrian entrances, healthcare doors, education buildings, office entries, and other automatic swing-door openings where clean door-mounted protection is needed.
This specific part is a right black sensor-only replacement. It is normally used when the existing LZR-FLATSCAN SW installation already has the proper compatible harness, mounting base, spacer if required, power supply, and door controller interface. Because it is sensor-only, it should not be assumed to include every accessory found in a complete low-energy kit. Match the original sensor label, hand, finish, connector arrangement, and installation style before using it as a replacement.
Correct fitment matters on this product. LZR-FLATSCAN SW is for automatic pedestrian swing doors, not driveway gate photo eye service, vehicle loop detection, overhead door commercial motion sensing, or general access-control input use. Full-energy swing doors normally require sensors on both sides of the door, while certain low-energy applications may use a single sensor on the approach side. Any replacement should be tested after installation for detection field, teach-in, monitoring, relay behavior, inhibit/reactivation logic, and safe door operation.
BEA’s LZR®-FLATSCAN SW is a LASER-based Time-of-Flight presence sensor for use as a stand-alone safety sensor on automatic pedestrian swing doors. This solution can also be used as a reactivation sensor on the approach side of low energy doors.
This superior technology generates 170 detection points across a single curtain, which allows LZR®-FLATSCAN SW to cover the entire face of a single door leaf including the hinge area.
Finger Detection Technology™ utilizes 100 detection points within the hinge area of the door, protecting hands and fingers while the door is in motion.
The LZR®-FLATSCAN SW is capable of exceeding the 156.10 section 8.2.2.3 standard for detection area and meets section 8.1.4 for monitoring.
Leading Edge Safety
Leading edge safety extends the detection area beyond the leading edge of the door for enhanced safety
Hand Gesture Setup™
Easy door width programming using Hand Gesture Setup™ reduces configuration time
UL10B/C Listed
Fire rated for up to one hour
Reduced Components
Hub-less system offers fewer components for easier setup and installation
Reduced Uncovered Zone
LASER technology provides a reduced uncovered zone of down to 3/4 inch
Background Independence
LASER technology ensures independence of all types of flooring (pedi-mats, carpet, reflective flooring, wet surfaces, etc.) and the surrounding environment of the door (guiderails, walls, weather)
Technical Specifications
| Specification | Manufacturer Technical Data |
|---|
| Technology | LASER scanner, Time-of-Flight measurement |
|---|
| Detection Mode | Presence |
|---|
| Max. Detection Range | 13’ (diagonal) with reflectivity of 2% (e.g. at (W) × 5’ > max. (H) × 12’), see Page 15 of Users Guide |
|---|
| Detection Area | | Door Leaf Safety | Pinch Zone Safety |
|---|
| 90° | 16° |
|
|---|
| Angular Resolution | | Door Leaf Safety | Pinch Zone Safety |
|---|
| 1.3° | 0.2° |
|
|---|
| Typ. Min. Object Size | | Door Leaf Safety | Pinch Zone Safety |
|---|
| 4” @ 13’ (in proportion to object distance, DIP 2 = ON) | 3/4” @ 13’ (in proportion to object distance, DIP 2 = ON) |
|
|---|
| Emission Characteristics | IR LASER
Wavelength 905 nm; max. output pulse power 25 W; Class 1 |
|---|
| Supply Voltage | 12 – 24 VDC ±15% * |
|---|
| Power Consumption | = 2 W |
|---|
| Response Time | | Door Leaf Safety | Pinch Zone Safety |
|---|
| max. 50 ms | max. 90 ms |
|
|---|
| Test Input | 30 VDC (max. switching voltage)
low < 1 V
high > 10 V (voltage threshold) |
|---|
| Output | 2 electronic relays (galvanic isolation - polarity free) |
|---|
| Max. Switching Voltage | 42 VAC / VDC |
|---|
| Max. Switching Current | 100 mA |
|---|
| LED Signals | | LED | Indication |
|---|
| Red | Swing side detection | | Green | Approach side detection | | Yellow | Error |
|
|---|
| Dimensions | 5 1/2” (W) × 3 1/3” (H) × 1” (D) (mounting bracket adds 1/4”) |
|---|
| Material / Color | PC / ASA / black (white), or silver |
|---|
| Tilt Angles | 2 – 10° (without mounting bracket) |
|---|
| Degree of Protection | IP54 (EN 60529) |
|---|
| Temperature Range | -22 – 140 °F (if powered) |
|---|
| Humidity | 0 – 95% non-condensing |
|---|
| Vibrations | < 2 G |
|---|
| Min. Door Leaf Speed | 2° / s |
|---|
| Compliance | ISO 13849-1 PL “d” / CAT2; IEC 60825-1; IEC 60950-1; IEC 61000-6-2; IEC 61000-6-3; IEC 62061 SIL 2; UL 10B/C Fire-Rated 1 hour (file #R39071) - black material only |
|---|
Compatible With
This product is compatible by BEA LZR-FLATSCAN SW system type, door hand, finish, wiring, and door controller requirements. It is not selected by brand name alone.
- BEA LZR-FLATSCAN SW automatic swing door sensor systems where the same handed sensor is specified
- Existing LZR-FLATSCAN SW installations requiring a right-hand/right-mount sensor-only replacement
- Automatic pedestrian swing door controllers with compatible monitored safety or presence inputs
- Door-leaf safety and hinge/pinch-zone safety applications on compatible swing doors
- Approach-side low-energy static-mode applications when allowed by the door manufacturer and applicable standards
- Full-energy swing-door applications only as part of a properly configured paired-sensor installation where required
- Compatible BEA remote-control setup and configuration procedures where field adjustment is required
- Selected storefront, healthcare, school, office, public building, and commercial pedestrian swing-door entrances using BEA LZR-FLATSCAN SW hardware
Features & Specifications
| Manufacturer | BEA Sensors |
|---|
| Product Type | Door-mounted laser swing door safety/presence sensor |
|---|
| Part Number | 10LZRFLATSCAN-RB |
|---|
| Sensor Family | LZR-FLATSCAN SW |
|---|
| Hand / Mount Side | Right |
|---|
| Color / Finish | Black |
|---|
| Technology | Laser Time-of-Flight presence detection |
|---|
| Detection Use | Door leaf safety and hinge/pinch-zone safety on compatible automatic pedestrian swing doors |
|---|
| Typical Detection Range | Up to 13 ft diagonal under specified conditions |
|---|
| Power Requirement | 12-24 VDC +/- 15%; DC power only |
|---|
| Power Consumption | 2 W or less |
|---|
| Output | 2 electronic relay outputs, installation dependent |
|---|
| Protection Rating | IP54 |
|---|
| Dimensions | Approx. 5-1/2 in W x 3-1/3 in H x 1 in D; mounting bracket adds approximately 1/4 in |
|---|
| Important Note | Match hand, color, kit contents, controller input, power supply, and door type before ordering |
|---|
Also Known As / Related Part Numbers
- 10LZRFLATSCAN-LELB - low energy left black reference
- 10LZRFLATSCAN-LELS - low energy left silver reference
- 10LZRFLATSCAN-LELW - low energy left white reference
- 10LZRFLATSCAN-LERB - low energy right black reference
- 10LZRFLATSCAN-LERS - low energy right silver reference
- 10LZRFLATSCAN-LERW - low energy right white reference
- 10LZRFLATSCAN-LB / 10LZRFLATSCAN-LS / 10LZRFLATSCAN-LW - left sensor-only color references
- 10LZRFLATSCAN-RB / 10LZRFLATSCAN-RS / 10LZRFLATSCAN-RW - right sensor-only color references
- LZR-FLATSCAN SW, LZR FLATSCAN SW, 10LZRFLATSCAN SW - common search variations
- 10REMOTE - BEA universal remote control, related setup accessory
- 35.1329 - LZR-FLATSCAN SW primary/secondary harness, related accessory
- 20.5433 - LZR-FLATSCAN control harness, related accessory
- 70.5753 - LZR-FLATSCAN SW spacer, related accessory
- 10PS12-24, 10PS12-24D, 10PSMDR2024, 10PSST242, 10PSVR5T - related BEA power supply/accessory references where the installation calls for them
Technician Note
Before replacing a LZR-FLATSCAN SW sensor, confirm whether the door is low-energy or full-energy, which side of the door the sensor mounts on, the color of the housing, and whether the existing installation uses a complete kit or a sensor-only service part. A left sensor, right sensor, low-energy kit, and sensor-only replacement can look similar in a product search but may not solve the same field problem.
Before Ordering
- Match the original BEA part number on the installed sensor or service documentation.
- Confirm left-hand or right-hand mounting before ordering.
- Match the visible finish: black, silver, or white.
- Confirm the door is an automatic pedestrian swing door, not a gate, barrier arm, sliding door, or industrial overhead door application.
- Confirm the door controller supports the required monitored safety, presence, relay, inhibit, and setup functions.
- Confirm that the sensor will be powered from a correct DC power source.
- Check whether spacer, harness, remote-control setup, or power-supply accessories are required.
Professional Advisory
Automatic pedestrian door safety sensors should be installed, configured, and tested by a qualified automatic door technician. Do not bypass monitored safety inputs, remove required sensors, or substitute an unapproved sensor to keep a door running. After service, the door must be tested for detection coverage, approach-side behavior, swing-side behavior, pinch-zone protection, relay output, monitoring, and safe operation.
Product-Specific Q&A
Is 10LZRFLATSCAN-RB a complete LZR-FLATSCAN SW kit?
10LZRFLATSCAN-RB is described as a sensor-only replacement. It may not include every harness, mounting, power, or accessory component used in a complete low-energy or full-energy kit.
Why does the right mounting side matter?
The LZR-FLATSCAN SW sensor is handed. The replacement must match the original left or right sensor position so the detection field, teach-in, and wiring layout match the door installation.
Will this sensor work on both low-energy and full-energy swing doors?
It may be used only where the installed LZR-FLATSCAN SW system, door controller, and safety requirements call for that exact sensor. Full-energy installations typically require sensors on both sides of the door.
What should be checked if the door still does not operate correctly after replacing the sensor?
Check DC power, wiring, harness condition, DIP switch settings, teach-in procedure, controller monitoring input, relay configuration, door position signal, and obstruction field before assuming the new sensor is defective.
Can this replace a BEA LZR-FLATSCAN 3D SW, LZR-FLATSCAN S, or LZR-WIDESCAN sensor?
Do not assume interchangeability. LZR-FLATSCAN SW, 3D SW, S, and WIDESCAN products serve different door or industrial applications and must be matched by the exact sensor family and part number.
