EMX LD-11 11-Pin Loop Detector Socket Compatibility and Installation Details

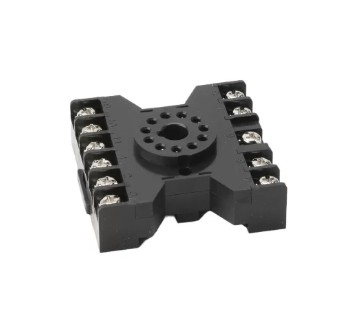

The EMX LD-11 is a black, wide-profile 11-pin socket base used to mount and wire compatible plug-in EMX vehicle detectors. The base is designed for DIN rail mounting and provides the termination point for field wiring while allowing the detector module to plug into the socket for installation, replacement, and service.
EMX lists the LD-11 as an accessory for several of its 11-pin vehicle loop detector models. Because different 11-pin devices can use different pin assignments, power requirements, and relay configurations, physical fit alone should never be used to determine electrical compatibility.
Compatible With
- EMX MVP D-TEK multi-voltage vehicle loop detector
- EMX LP D-TEK low-power vehicle loop detector
- EMX ULT-MVP / ULTRA-MVP vehicle loop detector
- EMX ULT-MVP-2 / ULTRA-MVP-2 dual-channel vehicle loop detector
- Select other EMX equipment using the appropriate 11-pin male connection when specifically shown in current EMX documentation
EMX also shows the LD-11 as an available accessory on the CarSense 101 product page. However, the CarSense 101 is currently shown with the narrower LD-11B socket included. If servicing a CarSense installation, confirm available panel space, original socket style, detector connector, and wiring before substituting the wider LD-11.
What the LD-11 Does
The LD-11 does not detect vehicles by itself. It is the plug-in socket and wiring base for a compatible detector. Installer wiring for power, loop input, relay outputs, ground, and other detector functions terminates at the appropriate socket positions according to the wiring diagram for the specific detector being used.
Once properly wired, the compatible 11-pin detector plugs into the LD-11. This arrangement allows the detector module to be removed or replaced without treating the detector itself as a permanent field-wiring termination device.
Features and Specifications
| Specification | Details |
| Manufacturer | EMX Industries |
| Part Number | LD-11 |
| Product Type | Plug-in detector socket base |
| Pin Configuration | 11 pin |
| Profile | Wide profile |
| Color | Black per current EMX accessory listing |
| Mounting Style | DIN rail mount |
| Primary Application | Compatible plug-in EMX vehicle detectors |
| Detector Included | No |
| Wire Harness Included | No - HAR-11 is a separate harness option |
| Induction Loop Included | No |
LD-11 vs LD-11B
The EMX LD-11 and LD-11B are both 11-pin DIN rail socket bases, but they are not the same physical configuration.
- LD-11: Black, wide-profile 11-pin socket base for DIN rail mounting.
- LD-11B: Black, narrow-profile 11-pin socket base for DIN rail mounting.
The narrow LD-11B may be preferable where control-panel space is limited or where the original installation specifically used the narrow base. Confirm the existing socket and available mounting space before substituting one style for the other.
LD-11 vs HAR-11
The LD-11 should also not be confused with the EMX HAR-11. The LD-11 is a DIN rail socket base. The HAR-11 is an 11-position wire harness with approximately 3 ft of wire. Both may be associated with compatible EMX detectors, but they provide different mounting and wiring arrangements.
Important Pinout and Voltage Warning
An 11-pin socket should not be wired by matching pin numbers from an unrelated detector or from memory. Compatible EMX detectors can have different power ranges, relay functions, loop connections, ground requirements, and output configurations.
Always use the wiring diagram for the exact detector model installed in the LD-11. Some compatible detector families can operate from line-voltage power sources. Disconnect power before service and have high-voltage or unclear control-panel wiring handled by a qualified gate, door, access-control, or electrical technician.
Similar Parts That Should Not Be Automatically Substituted
- EMX LD-11B narrow-profile 11-pin DIN rail socket
- EMX HAR-11 11-position wired harness
- 7-pin loop detector sockets
- Terminal-block style detector connections
- Other generic 11-pin relay sockets with unverified terminal layout or mechanical fit
A generic socket may appear similar but should not be assumed to provide the same mounting, terminal arrangement, mechanical fit, or suitability for the intended EMX detector.
Package Contents
- One EMX LD-11 11-pin wide-profile socket base
The vehicle detector, DIN rail, loop wire or preformed loop, HAR-11 harness, enclosure, and other installation hardware are not automatically included.
Technician Note
If replacing a damaged detector socket, identify why the original socket failed before installing the replacement. Burned terminals, melted plastic, corrosion, loose conductors, incorrect supply voltage, damaged loop wiring, or a shorted external load may indicate a problem elsewhere in the system.
Replacing the socket without correcting the underlying wiring or electrical fault can damage the new socket or detector.
Before Ordering Checklist
- Confirm the part number is EMX LD-11.
- Confirm the detector uses an 11-pin male plug-in connection.
- Verify the detector is specifically compatible with an LD-11 socket.
- Confirm the wide-profile base fits the available DIN rail and enclosure space.
- Do not confuse LD-11 with the narrower LD-11B.
- Do not confuse LD-11 with the HAR-11 wired harness.
- Verify detector power requirements and pin assignments from the correct wiring diagram.
- Confirm whether a DIN rail or other mounting hardware is already present.
Installation and Service Notes
Mount the socket securely on the appropriate DIN rail and follow the exact wiring diagram supplied for the detector being installed. Verify conductor placement before applying power. Proper grounding and surge-protection connections should be maintained where required by the detector manufacturer.
If the existing socket shows signs of heat damage, arcing, water intrusion, or incorrect wiring, inspect the detector, power source, loop circuit, relay loads, and field wiring before installing the replacement.
Professional Advisory
The LD-11 is a wiring and mounting component and does not provide gate safety or vehicle detection by itself. Do not alter or bypass required gate operator safety devices, entrapment-protection circuits, photo eyes, safety edges, or other monitored safety equipment while servicing a detector system.
If the installation includes line voltage or the existing wiring cannot be positively identified, service should be performed by a qualified technician.
Product Questions and Answers
What is the EMX LD-11 used for?
The EMX LD-11 is a wide-profile 11-pin DIN rail socket base used to mount and wire compatible plug-in EMX vehicle detectors. It is the socket only and does not detect vehicles by itself.
Which EMX loop detectors are compatible with the LD-11?
EMX currently lists the LD-11 with select 11-pin detectors including MVP D-TEK, LP D-TEK, ULT-MVP, and ULT-MVP-2. Verify the exact detector model and current EMX wiring documentation before installation.
What is the difference between EMX LD-11 and LD-11B?
The LD-11 is the wide-profile 11-pin DIN rail socket base, while the LD-11B is the narrow-profile version. Both are 11-pin bases, but available panel space and the original installation should be checked before substituting one for the other.
Is the EMX HAR-11 the same as the LD-11?
No. The LD-11 is a DIN rail socket base. The HAR-11 is a separate 11-position harness with approximately 3 ft of wire. Confirm which wiring method is required before ordering.
Does the LD-11 include the vehicle loop detector?
No. The LD-11 is the socket base only. The detector, induction loop, DIN rail, harness, and other system components are not automatically included.
Can any 11-pin loop detector be plugged into the LD-11?
Do not assume so. A detector may physically use 11 pins but have different pin assignments, voltage requirements, relay functions, or mechanical requirements. Verify the exact detector model and wiring diagram before connecting it to the LD-11.
Can the LD-11 be used with an EMX CarSense 101?
EMX lists the LD-11 as an accessory on the CarSense 101 product page, but the current CarSense 101 listing shows the narrower LD-11B as the included socket. Confirm the existing socket style, available space, connector, and wiring before changing socket types.
What should I check before replacing a damaged LD-11 socket?
Inspect for loose or burned terminals, corrosion, water intrusion, incorrect supply voltage, damaged detector wiring, shorted external loads, and other causes of socket damage. If line voltage or the existing wiring is unclear, have the system checked by a qualified technician before applying power.
