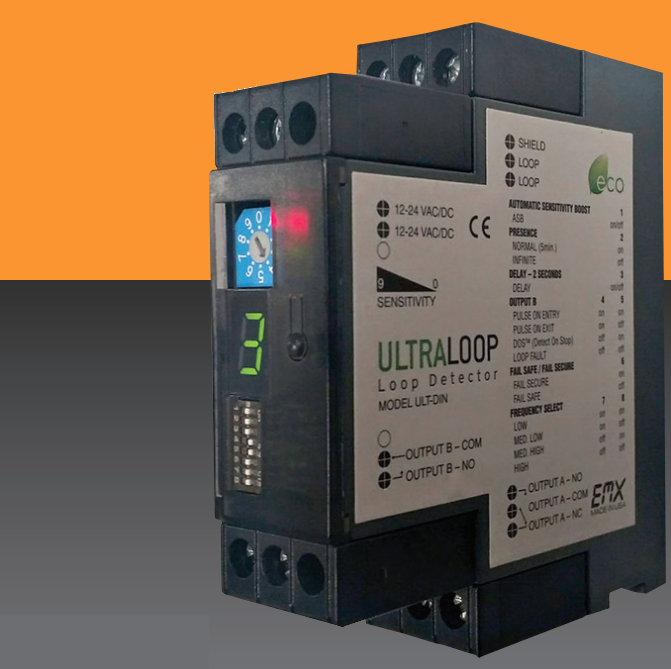

EMX ULTRA-DIN DIN RAIL MOUNT VEHICLE LOOP DETECTOR ULT-DIN EXIT SAFETY DETECTION

Write a Review

PRICE $104.95

The EMX ULTRA-DIN is a compact DIN rail vehicle loop detector for gate, parking, barrier, and access-control cabinets where space and clean mounting matter. It connects to a properly installed inductive loop and provides relay outputs for vehicle presence or loop control functions depending on the wiring. The DIN rail format is useful for control panels and operator enclosures that already use modular rail-mounted components. Features such as ULTRAMETER setup, Detect-On-Stop, automatic sensitivity boost, four loop frequencies, fail-safe/fail-secure selection, delay, and normal or infinite presence make it flexible for tight drive lanes and multi-loop sites. Confirm DIN rail space, voltage, loop wiring, and output requirements before replacing another detector.

Part Number: EMX-ULT-DIN

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

Description

EMX ULTRA-DIN DIN RAIL MOUNT VEHICLE LOOP DETECTOR ULT-DIN EXIT SAFETY DETECTION

The EMX ULTRA-DIN packages a full-featured loop detector into a narrow DIN rail module. It is especially useful in modern gate control panels, access-control cabinets, and parking equipment where components are organized on DIN rail instead of loose-mounted in the enclosure. Like other loop detectors, it watches the inductive field around a buried loop wire and changes relay output when a vehicle is detected. The Detect-On-Stop function is valuable where vehicles may pass close to a loop without needing to trigger the gate or barrier. This part should be selected when the cabinet needs DIN rail mounting and low-voltage operation; it is not the same as a plug-in, 11-pin, or terminal-block detector unless the wiring is intentionally changed.

Compatible With

This compatibility list is written for common field use and product-family matching. Always verify the operator manual, control-board input, socket, wiring, voltage, and installed part number before ordering.

Control panels and operator cabinets with 35 mm DIN rail space
Gate, parking, barrier, and access-control systems accepting relay output from a loop detector
Exit loop, safety loop, center loop, shadow loop, and presence loop applications when wired to the correct input
12-24 VAC/DC low-voltage accessory power circuits
Multi-loop applications where frequency selection and Detect-On-Stop can reduce crosstalk or cross-traffic detection
Not a direct replacement for ULTRA-PLG, ULTRA-II, DTEK-MVP, DTEK-LP, or ULTRA-MVP without rewiring and mounting changes

Features and Specifications

Manufacturer	EMX Industries
Product Type	DIN rail vehicle loop detector
Part Number	ULT-DIN
Mounting	35 mm DIN rail
Power	12-24 VAC/DC
Sensitivity	10 levels with ULTRAMETER display
Frequency Settings	4 selectable frequencies
Loop Range	20-2000 uH, Q factor greater than 5
Features	Detect-On-Stop, ASB, delay, fail-safe/fail-secure, normal or infinite presence
Dimensions	About 80 x 23 x 84 mm

Also Known As / Related Part Numbers

ULT-DIN
ULTRA-DIN
EMX-2600-1
EMX Ultra DIN loop detector
DIN rail loop detector
ULTRALOOP DIN
Related: ULTRA-PLG, ULTRA-II, ULTRA-MVP, ULTRA-MVP-2, PR-XX EMX Lite loop

Technician Note

Loop detector problems are often caused by the loop circuit, pavement damage, moisture intrusion, incorrect socket wiring, or wrong output mode. Test the loop and verify the control input before assuming the detector alone is bad.

Before Ordering

Confirm detector form factor: plug-in, terminal block, DIN rail, or 11-pin socket.
Confirm supply voltage and AC/DC requirements.
Check loop resistance, inductance, and insulation condition.
Match output mode to the operator input: pulse, presence, safety, exit, or directional logic.
Verify whether the site also requires monitored entrapment protection devices.

Professional Advisory

Vehicle loop detectors are control accessories and are not a substitute for required monitored safety photoeyes or safety edges. For high-voltage cabinets, unsafe gate movement, or unknown wiring, use a qualified gate technician.

Product Questions and Answers

Why choose ULTRA-DIN?

Choose ULTRA-DIN when the operator or control panel is built around DIN rail mounting and needs a compact loop detector.

Does ULTRA-DIN use Detect-On-Stop?

Yes, it includes Detect-On-Stop, which can help ignore cross traffic until a vehicle comes to a stop on the loop.

Can this replace an 11-pin loop detector?

Not directly. An 11-pin detector uses a different mounting and connection style. Rewiring may be required and should match the operator input requirements.

What voltage does this detector use?

It is commonly used on 12-24 VAC/DC low-voltage circuits. Always confirm the available power in the cabinet before installation.

What should be checked before ordering?

Check DIN rail space, power supply, loop condition, relay output wiring, desired presence or pulse behavior, and whether the site requires separate monitored safety sensors.
