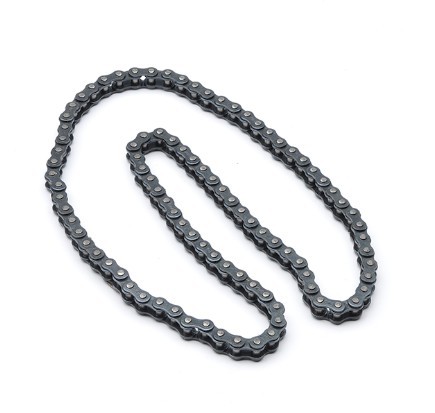

GENIE 086565.1031.S, CHAIN,RLR,#25 X 92P,LOOP
The Genie 086565.1031.S is a Genie OEM Roller Chain - Endless Loop designed for use in Genie chain-drive door and gate operator systems. It conforms to ANSI roller chain standards with the following specifications: Pitch: 0.250 in (1/4"), Roller width: 0.125 in, Roller diameter: 0.130 in, Pin diameter: 0.091 in, Pitch count: 92P, Assembled loop length: 23.00 in (1.92 ft). This chain is manufactured from Carbon steel, ensuring durable performance under typical drive-system loads. This part is a ANSI #25 Endless Loop Roller Chain, 92 Pitches, 23.00 in. Compatible applications include Genie commercial door operators, Genie residential door operators, Genie 086565 series chain drive systems.
Key Features
- ANSI #25 standard roller chain with 1/4" (0.250 in) pitch
- 92-pitch endless loop configuration, 23.00 in (1.92 ft) total length
- Pre-joined closed-loop design for direct drop-in installation with no master link required
- Carbon steel construction with rated tensile strength of 875 to 930 lbs
- Roller diameter 0.130 in and roller width 0.125 in per ANSI #25 specification
- Genie 086565 series part designed for Genie chain drive door operator systems
Compatibility Guide
- Genie commercial door operators
- Genie residential door operators
- Genie 086565 series chain drive systems
- Any ANSI #25 chain drive application requiring a 92-pitch endless loop configuration
Professional Specs
| Feature | Specification |
|---|
| Model | Genie 086565.1031.S |
| Item Type | Roller Chain - Endless Loop |
| Materials | Carbon steel |
| Dimensions | Pitch: 0.250 in (1/4"); Roller width: 0.125 in; Roller diameter: 0.130 in; Pin diameter: 0.091 in; Pitch count: 92P; Assembled loop length: 23.00 in (1.92 ft) |
| Mounting | Endless loop - no master link required; installs directly onto compatible sprockets in Genie chain drive door operators |
Frequently Asked Questions
Q: What ANSI chain standard does this part conform to?
A: This part uses ANSI #25 chain, which has a 1/4" (0.250 in) pitch, a roller diameter of 0.130 in, and a roller width of 0.125 in. It is a lighter-duty chain than the ANSI #35 used in the Genie 109xxx and 110877 series.
Q: What does 'loop' or 'endless' mean for this chain?
A: This chain is supplied as an endless loop - also called a closed loop or pre-joined loop - with 92 pitches, giving a total assembled length of 23.00 in (1.92 ft). No master link installation is required.
Q: Does the .1031 suffix indicate the number of pitches?
A: The suffix .1031 is an internal Genie catalog designator and does NOT encode the pitch count. The pitch count of 92P is explicitly stated in the product title and must be used when selecting a replacement to ensure the correct loop length.
Q: What is the tensile strength of ANSI #25 chain?
A: ANSI #25 chain has a rated tensile strength of approximately 875 to 930 lbs. This is significantly lower than ANSI #35 chain, which is rated at approximately 2,320 lbs, so the two chain standards are not interchangeable.
Q: What material is this chain made from?
A: Carbon steel is the standard base material for ANSI #25 roller chain. This chain does not carry a nickel-plated designation, distinguishing it from any corrosion-resistant variants that may be available in other Genie series.
