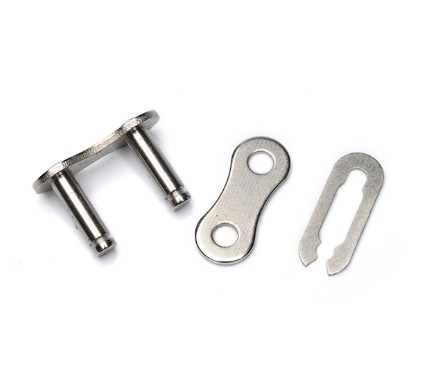

Genie 108928.0001.S is a #41 NP Connecting Link manufactured by Genie for use in commercial door operator drive systems. Constructed from Carbon steel, nickel plated. Dimensions: Pitch: 0.500 in, roller dia. 0.306 in - per ANSI #41 chain spec. Compatible with Genie ChainGlide commercial door operators using #41 NP chain.
A: This link is designed for use with ANSI #41 nickel plated chain, such as the Genie 111623 series NP chain used in ChainGlide commercial operators.
A: The nickel plating on this link matches the corrosion resistance of the #41 NP chain it joins, ensuring a consistent protection level across the entire chain assembly.
A: No. This link is sized for ANSI #41 chain (0.500 in pitch, 0.306 in roller dia.). It will not fit #25, #50, or #65 chain.
A: Inspect the connecting link clip and plate for wear, deformation, or corrosion at every scheduled maintenance interval. Replace if any damage is found.
A: 080884.0003.S is the standard (non-NP) #41 connecting link. This part, 108928.0001.S, is the nickel plated variant for use with NP chain.
