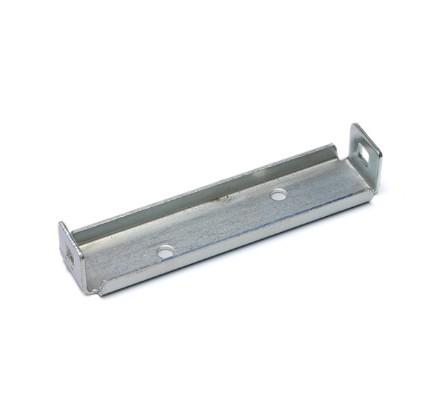

GENIE 110627.0001.S, BRACE,SUPPORT,SX
The Genie Genie 110627.0001.S is a genuine OEM replacement structural component - support brace designed for Genie commercial door operator systems. Support Brace for the Genie SX operator family, providing structural reinforcement to the operator mounting assembly. Not interchangeable with the MX series support brace 110803.0001.S.. Constructed from Steel, finish not confirmed - refer to Genie documentation, this part meets Genie factory specifications for durability and performance. Dimensions: Not confirmed - SX-series specific geometry; refer to Genie SX parts documentation. Compatible with Genie SX series commercial door operators, SX operator family mounting configurations.
Key Features
- Provides structural reinforcement to the SX operator mounting assembly
- SX-family specific geometry - not interchangeable with MX brace 110803.0001.S
- Reduces vibration and mounting stress during high-cycle commercial operation
- Maintains operator body alignment for consistent and safe door travel
- Direct Genie factory replacement part for SX series
- Steel construction suited to commercial duty environments
Compatibility Guide
- Genie SX series commercial door operators
- SX operator family mounting configurations
Professional Specs
| Feature | Specification |
|---|
| Model | Genie 110627.0001.S |
| Item Type | Structural Component - Support Brace |
| Materials | Steel, finish not confirmed - refer to Genie documentation |
| Dimensions | Not confirmed - SX-series specific geometry; refer to Genie SX parts documentation |
| Mounting | Bolted mounting per SX series operator mounting configuration |
Frequently Asked Questions
Q: Can the SX support brace be used on an MX series operator?
A: No. The SX support brace 110627.0001.S is designed specifically for the SX operator family mounting geometry and hole pattern. The MX brace 110803.0001.S is a separate part and must not be substituted.
Q: What structural function does the SX support brace serve?
A: The support brace reinforces the SX operator mounting structure, reducing vibration, deflection, and mechanical stress at the mounting interface during door cycling. This is critical for maintaining alignment in commercial high-cycle installations.
Q: How do I verify I am ordering the correct brace for my operator?
A: Check the operator model identification plate. SX series units require 110627.0001.S. MX series units require 110803.0001.S. Do not interchange these braces even if they appear similar.
Q: What should I check on the support brace during preventive maintenance?
A: Inspect the brace for cracks, elongated mounting holes, deformation, or any looseness at the mounting interface. Replace immediately if structural compromise is found.
Q: Is the SX support brace a field-replaceable part?
A: Yes, field replacement is generally possible without full operator removal, but the door should be secured and the operator disengaged before performing any structural hardware service.
