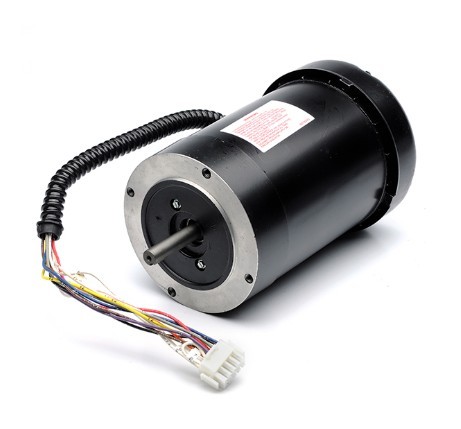

GENIE 111695.0002.S, MOTOR,1HP,3PH,TEFC,HX
The Genie 111695.0002.S is a genuine Genie OEM replacement 1HP 3PH TEFC HX Motor designed for use in Genie commercial door and gate operators. Rated at 208V/230V/460V with TEFC (Totally Enclosed Fan Cooled) enclosure construction, this motor delivers reliable performance in commercial access-control applications. Compatible with Genie HX Series Commercial Operators and Genie HX high-cycle parking garage operators and related Genie commercial operator families. Install this motor as a direct factory replacement to restore full operator function and maintain manufacturer-specified duty-cycle and performance standards. Built to Genie OEM specifications, it pairs with the motor of the same SKU base family at alternate horsepower or phase ratings for complete motor matrix coverage.
Key Features
- 1HP three-phase motor rated for 208/230/460V multi-voltage field-selectable operation
- TEFC (Totally Enclosed Fan Cooled) enclosure suitable for indoor and outdoor use in demanding environments
- HX designation matched to Genie HX high-cycle commercial operator series for parking garages and loading docks
- NEMA 56 frame with thermal overload protection for reliable high-frequency cycling applications
- Three-phase design provides smooth torque delivery and reduced current draw versus single-phase equivalent
- Approximate full load amperage: 4A at 208/230V, 3A at 460V
Compatibility Guide
- Genie HX Series Commercial Operators
- Genie HX high-cycle parking garage operators
- Genie HX loading dock operators
Professional Specs
| Feature | Specification |
|---|
| Model | Genie 111695.0002.S |
| Item Type | 1HP 3PH TEFC HX Motor |
| Voltage | 208V, 230V, 460V |
| Enclosure Rating | TEFC (Totally Enclosed Fan Cooled) |
| Dimensions | NEMA 56 frame |
| Mounting | NEMA 56 frame mount |
Frequently Asked Questions
Q: What does TEFC mean and why does it matter for this motor?
A: TEFC stands for Totally Enclosed Fan Cooled. The motor housing is sealed against dust and moisture ingress, and an external fan mounted on the shaft provides cooling airflow over the exterior of the enclosure. This makes it suitable for both indoor and outdoor installations, including environments with dust, debris, or occasional moisture exposure.
Q: What does the HX designation mean for this motor?
A: The HX suffix designates this motor as matched for Genie HX series high-cycle commercial operators, which are designed for high-frequency applications such as parking garages and loading docks. While the core electrical specifications are consistent with standard Genie 1HP 3PH TEFC motors, the HX variant is dimensionally and mechanically matched to HX operator mounting requirements and duty cycle demands.
Q: What voltages does this motor support and what are the full load amperage ratings?
A: This motor is rated for 208/230/460V three-phase power, which is field-selectable via internal wiring connections. At 208V or 230V the full load amperage is approximately 4A, and at 460V it is approximately 3A. Always verify the available supply voltage before wiring and configure the motor leads accordingly per the wiring diagram on the motor nameplate.
Q: What frame size does this motor use?
A: This motor uses a NEMA 56 frame, which is the standard frame size for 1HP commercial motors in the Genie product line. The NEMA 56 frame defines the shaft height, bolt pattern, and shaft diameter, ensuring dimensional compatibility with Genie HX operator mounting configurations.
Q: What is the difference between this motor and 111308.0003.S?
A: The closest non-HX equivalent is 111308.0003.S, which is a 1HP 3PH TEFC motor for standard Genie commercial operators. The HX-specific counterpart for 1/2HP 3PH TEFC is 111695.0001.S, and the 1HP 1PH TEFC HX equivalent is 111694.0002.S. Use 111695.0002.S only when replacing the original HX-designated motor to ensure proper fit and duty rating.
