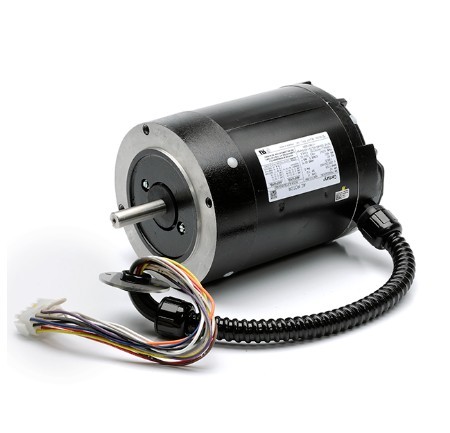

1/2HP 3PH NEMA 4 Watertight Right Hand Shaft Replacement Motor for Genie GCL Series Commercial Operators. NEMA 4 Watertight Enclosed 3-Phase Replacement Motor - Right Hand Shaft Orientation - Genie 111697.0003.S. Enclosure: NEMA 4 Watertight Totally Enclosed - suitable for indoor and outdoor installations, rated for wash-down and weather exposure. Rated voltage: 208V AC 3PH, 230V AC 3PH, 460V AC 3PH. Contact configuration: 3-phase motor winding configuration, 208/230/460V AC multi-volt. 1/2HP 3-phase motor rated for 208/230/460V AC multi-volt 3PH electrical service.
A: This motor features a NEMA 4 watertight enclosure, making it suitable for both indoor and outdoor installations including environments exposed to rain, splashing water, or wash-down conditions. NEMA 4 provides a higher level of protection than standard ODP or TEFC enclosures.
A: Right Hand (RH) shaft orientation means the drive shaft faces to the right when the motor is viewed from the drive end. This is a critical specification - using the wrong shaft orientation will result in improper installation. Verify your operator requires an RH shaft before ordering.
A: This motor part number 111697.0003.S is a 3-phase (3PH) unit operating on 208/230/460V AC multi-volt. The related part 111697.0001.S is the single-phase (1PH) equivalent. Verify your operator's phase requirement before ordering as these are not interchangeable.
A: Part number 111131.0004.S is a 3-phase NEMA 4 motor of standard shaft orientation, while 111697.0003.S is the Right Hand (RH) shaft orientation version. Both are 3PH NEMA 4, but shaft direction differs. Confirm your operator's required shaft orientation before substituting.
A: This motor operates on 3-phase 208/230/460V AC multi-volt power. It is not compatible with single-phase electrical service. Verify your facility provides 3-phase power and that your GCL series operator is configured for 3-phase operation before installation.
