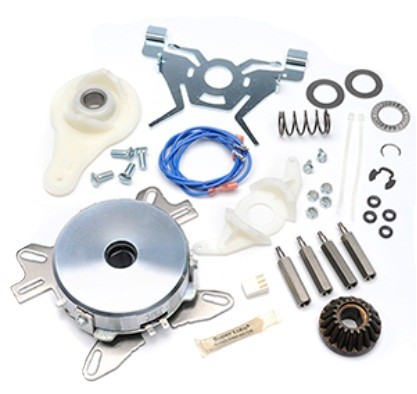

The Genie 111861.0001.S is a factory brake kit for the Genie GCL-GH commercial heavy-duty gear head hoist operator, covering 1 or 3-phase motor configurations at 1/2 to 1 HP. The GH is designed for high-cycle applications including rolling steel doors and sectional doors up to 24 feet, rated for 60 cycles per hour. This kit provides a 24VDC disc brake with progressive braking and up to 45 inch-pounds of torque at motor speed. Note: the HP range "1/2-1HP" was inferred from the pattern established by the parallel GT brake kit (111857.0001.S) after the original source title was truncated; this inference should be verified against Genie documentation before installation. For 3 HP GH applications, use the separate 111862.0001.S kit.
A: This brake kit is designed for the Genie GCL-GH heavy-duty gear head hoist operator series handling rolling steel and sectional doors up to 24 feet.
A: The GH operator supports single phase (115, 208, or 230VAC) and three phase (208, 230, or 460VAC) configurations.
A: WARNING - The HP range of 1/2-1HP has been inferred by pattern-matching with a parallel GT series part number (111857.0001.S) and has NOT been independently confirmed from primary source documentation. Verify with Genie technical support before ordering.
A: The GH operator uses a 24VDC disc brake system with progressive braking action to provide controlled stopping of the door.
A: The GH operator is rated for up to 60 cycles per hour, making it suitable for high-traffic commercial door applications.
