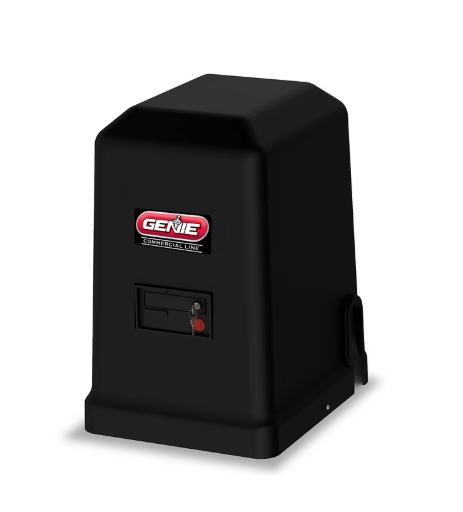

Genie GCSL36V Commercial Slide Gate Operator
The Genie GCSL36V is a commercial vehicular slide gate operator built for select commercial slide gate applications that require continuous-duty capability. It is designed for higher-use properties where the gate size, gate weight, track condition, roller condition, chain alignment, power supply, safety-device layout, and accessory requirements are within Genie specifications.
This is a commercial slide gate operator, not a swing gate operator, residential slide operator, garage door opener, barrier gate, access control keypad, loop detector, or safety device. The GCSL36V must be matched to the gate, site conditions, required entrapment protection, electrical service, and access control system before ordering.
Primary Use
- Commercial vehicular slide gate automation for select slide gate installations
- Applications requiring continuous-duty slide gate operation where the gate and site conditions are within Genie specifications
- Commercial gates up to 40 ft wide and 1500 lb where the gate rolls freely and the installation meets Genie requirements
- Sites requiring monitored safety inputs, battery backup, solar-ready charging, loop detector rack, auxiliary relays, and Genie Intellicode receiver support
- Primary/secondary slide gate applications where the proper additional operator, communication method, and setup are confirmed
- Commercial access points such as gated communities, business entrances, industrial yards, controlled parking areas, and service drives where the gate is properly sized for the operator
Compatible With
Use the Genie GCSL36V only where the slide gate and installation site match the operator specifications. A published gate rating does not guarantee proper operation if the gate is dragging, binding, leaning, wind-loaded, poorly supported, or installed with worn rollers, damaged track, incorrect chain height, or poor guide alignment.
- Select commercial vehicular slide gates up to 40 ft wide or 1500 lb where Genie installation requirements are met
- Commercial slide gate applications requiring 100% continuous-duty capability
- Applications using compatible Genie 315/390 MHz Intellicode transmitters where programmed to the onboard receiver
- Installations requiring monitored photo eyes, monitored safety edges, or other approved UL325 entrapment-protection devices
- Applications using pluggable loop detectors where the detector type and rack compatibility are confirmed
- Solar-capable installations where the solar panel, battery capacity, accessory draw, sun exposure, and daily cycles are properly matched
- Aladdin Connect applications where the optional compatible Wi-Fi board is added and the site has suitable network coverage
- Dual slide gate applications only where the primary/secondary setup is supported and installed according to Genie documentation
Features and Specifications
| Specification | Details |
| Brand | Genie |
| Model | GCSL36V |
| Product Type | Commercial vehicular slide gate operator |
| Gate Type | Commercial slide gate |
| Maximum Gate Rating | Up to 40 ft wide and 1500 lb where the gate and installation conditions meet Genie specifications |
| Duty Cycle | 100% continuous duty |
| Motor | 36V brushless DC motor |
| Drive Design | Direct drive motor to worm gear in oil-bath reduction |
| Primary Power | 115VAC, field adjustable to 230VAC where installed according to Genie documentation |
| Battery Backup | Battery backup supported; two 12V 7Ah batteries are listed with the operator |
| Battery Backup Cycles | Up to 150 cycles on fully charged batteries, depending on gate condition, accessory load, temperature, and battery condition |
| Optional Battery Upgrade | 33Ah batteries may be supported as an option where installed according to Genie documentation |
| Solar Support | Solar ready with onboard solar charge controller; solar panel and sizing should be confirmed separately |
| Radio Receiver | Advanced 315/390 MHz Genie Intellicode receiver with storage for up to 250 transmitters |
| Accessory Power | 24VDC switched and constant accessory power, up to 800mA combined where specified |
| Safety Inputs | Four monitored safety inputs for approved entrapment-protection devices |
| Loop Detector Support | Rack for pluggable loop detectors where compatible detectors are used |
| Auxiliary Relays | Two auxiliary relays, configurable from the LCD interface where supported |
| Control Interface | Dual-line backlit LCD display with adjustable settings |
| Speed Control | Adjustable speed where configured through the operator controls |
| Limit System | Electro-mechanical limits designed to stay synced through power loss |
| Timed Functions | Timer-to-close and built-in 7-day timer where configured |
| Dual Gate Function | Primary/secondary control for supported dual slide gate applications |
| Smart Control | Aladdin Connect ready with optional compatible Wi-Fi board |
| Manual Release | Keyed release lever disconnects drive for manual operation |
| Temperature Range | -20 degrees C to +60 degrees C; optional heater may support down to -40 degrees C where specified |
| UL Listing | UL325 listed for Class I, II, III, and IV applications where installed as required |
| Warranty | 5 year warranty listed by Genie; confirm warranty terms for the specific sales channel |
Typical Package Content Notes
Package contents can vary by supplier SKU and production version. Confirm the current package before ordering, especially if the installation needs monitored safety devices, chain, mounting hardware, loop detectors, remotes, solar equipment, heater kit, vehicle detection, or access control accessories.
- Commercial slide gate operator chassis and cover assembly, where included by the supplier package
- 36V operator drive system and factory control electronics, where factory-installed
- Two 12V 7Ah batteries are listed with the operator
- Remote transmitters, monitored photo eyes, monitored safety edges, chain, mounting hardware, loop detectors, warning signs, and installation hardware should be confirmed before ordering
- Optional heater kit, solar panel kits, 33Ah batteries, wireless primary/secondary link, post mounting kit, and Aladdin Connect Wi-Fi board are not assumed included unless specifically listed
Important Comparison With Similar Genie Gate Operators
Genie commercial and residential gate operators may share similar control features, but the duty rating, motor system, gate capacity, and intended application can be different. Confirm the exact gate type and operator model before ordering.
- GCSL36V: Commercial vehicular slide gate operator for select commercial slide gates up to 40 ft and 1500 lb where specifications are met.
- GRSL24V: Residential slide gate operator rated for lighter residential applications. This is not the same as the commercial GCSL36V.
- GCSW36V: Commercial vehicular swing gate operator. This is for swing gates, not slide gates.
- GLA24V: Residential linear actuator swing gate operator. This is not a slide gate operator.
- GRSW24V: Residential articulated-arm swing gate operator. This is not the same as the GCSL36V commercial slide operator.
- Dual GCSL36V setup: Primary/secondary control may be supported, but a dual slide gate job may require a second operator and the correct communication method. Do not assume one operator moves two independent sliding gates.
- Aladdin Connect Wi-Fi board: Optional accessory for smart control readiness. It is not included unless the package specifically lists it.
- Safety photo eyes and edges: Required monitored entrapment-protection devices are separate safety components unless specifically included in the package.
Also Known As / Related Part Numbers
- GCSL36V
- Genie GCSL36V
- Genie GCSL36V commercial slide gate operator
- Genie commercial vehicular slide gate operator
- Genie 36V commercial slide gate operator
- Genie 36V brushless DC slide gate operator
- Genie continuous-duty slide gate operator
- Commercial Slide Gate Operator
- Commercial Vehicular Slide Gate Operator
- OPGCSL36V - supplier-style item number commonly associated with Genie GCSL36V packages; verify before cross-referencing
- GCSW36V - related Genie commercial swing gate operator, not for slide gates
- GRSL24V - related Genie residential slide gate operator, not the same commercial model
- GLA24V - related Genie residential swing gate operator, not for slide gates
- GRSW24V - related Genie residential swing gate operator, not for slide gates
Technician Notes
- Check the slide gate before selecting the operator. A gate that drags, leans, binds, rolls hard, or has damaged track can overload even a commercial operator.
- Inspect the V-track, wheels, guide rollers, chain path, chain brackets, idlers, end stops, catch post, tail space, and gate frame before installation.
- Confirm the gate weight and gate length together. Do not size the operator only by weight if the gate is long, solid-panel, wind-loaded, or poorly supported.
- Plan monitored entrapment protection before installation. Commercial slide gates can have multiple open and close direction entrapment zones that require proper monitored photo eyes and safety edges.
- Confirm loop detector needs before ordering. The operator includes a rack for pluggable loop detectors, but detector modules, loops, and loop wire should be confirmed separately.
- Battery backup performance depends on gate condition, battery age, accessory load, temperature, and the number of cycles during an outage.
- For solar installations, size solar panels and batteries based on daily traffic, accessory current draw, sun exposure, shade, and recovery time. The onboard solar charge controller does not make every commercial site suitable for solar by itself.
- For primary/secondary slide gates, confirm whether the job requires a second operator, wireless primary/secondary link, wired communication, and proper programming.
- Do not bypass monitored safety devices, loop detector logic, fuses, grounding, limits, or operator protections to force the gate to run.
Before Ordering Checklist
- Confirm the exact model is Genie GCSL36V.
- Confirm the application is a commercial slide gate, not a swing gate or residential slide gate.
- Confirm the gate is within the 40 ft and 1500 lb rating and rolls freely by hand.
- Inspect track condition, wheels, guide rollers, chain alignment, stops, catch post, tail space, and operator pad location.
- Confirm the installation requires continuous-duty commercial performance.
- Confirm line voltage requirements, including 115VAC or field-adjusted 230VAC setup by a qualified installer.
- Confirm required monitored photo eyes, safety edges, warning signs, and other UL325 safety devices for the complete slide gate layout.
- Confirm whether the package includes batteries, remotes, chain, monitored safety devices, loop detectors, mounting hardware, keys, warning signs, and installation hardware.
- Confirm whether optional items such as Aladdin Connect Wi-Fi, solar panel kits, heater kit, 33Ah batteries, wireless primary/secondary link, post mounting kit, keypad, receiver, exit loop, or vehicle detector are needed.
- Confirm whether a primary/secondary dual-slide setup requires a second operator and additional wiring or accessories.
Professional Advisory
A commercial slide gate operator installation involves a heavy moving gate, pinch points, monitored safety devices, high-voltage line power, low-voltage controls, batteries, solar charging, loop detectors, chain alignment, limit setup, radio programming, and possible access control or fire access wiring. Installation should be performed by a qualified gate operator technician, especially where the gate is heavy, high-cycle, wind-loaded, dual-slide, damaged, or connected to access control, vehicle detection, fire access, or safety equipment. Do not bypass monitored photo eyes, safety edges, inherent entrapment protection, warning devices, loop detector protections, fuses, grounding, or operator control safeguards.
Product Q&A
What type of gate is the Genie GCSL36V made for?
The Genie GCSL36V is made for select commercial vehicular slide gates. It should be installed only where the gate length, gate weight, track condition, roller condition, chain setup, and safety-device layout match Genie specifications.
What size gate can the Genie GCSL36V operate?
The GCSL36V is rated for slide gates up to 40 ft wide and 1500 lb where the gate is properly built, aligned, and free-rolling. Track damage, worn rollers, wind load, poor alignment, and chain issues can reduce real-world performance.
Is the Genie GCSL36V the same as the Genie GRSL24V?
No. GCSL36V is the commercial 36V slide gate operator, while GRSL24V is the residential 24V slide gate operator. The correct model depends on gate size, duty requirement, site use, and installation specifications.
Does the Genie GCSL36V include battery backup?
Yes. The GCSL36V supports battery backup and is listed with two 12V 7Ah batteries. Backup performance depends on battery condition, gate condition, accessory load, temperature, and the number of cycles during an outage.
Is the Genie GCSL36V solar compatible?
The GCSL36V is solar ready with an onboard solar charge controller, but solar panels and battery sizing must be matched to the site. Shade, accessory draw, gate load, daily cycles, and weather can affect solar performance.
Does the Genie GCSL36V work with Aladdin Connect?
The GCSL36V is Aladdin Connect ready when the compatible optional Wi-Fi board is added. Do not assume Wi-Fi control is included with the operator unless the package contents specifically list the Wi-Fi board.
What safety devices are needed with the Genie GCSL36V?
The GCSL36V has four monitored safety inputs and must be installed with the required entrapment-protection devices for the slide gate layout. Photo eyes, safety edges, warning signs, and other required safety devices should not be bypassed or omitted.
