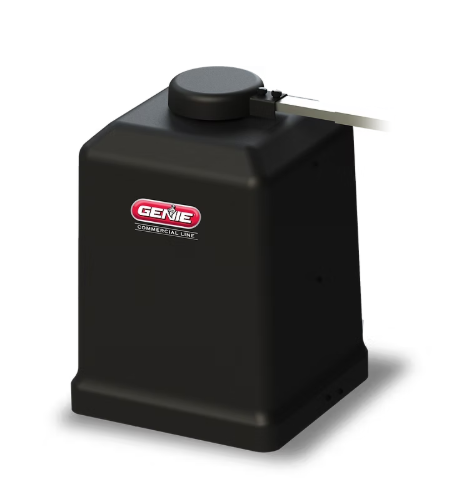

Commercial Swing Gate Operator Details for Genie GCSW36V
The Genie GCSW36V is a commercial vehicular swing gate operator built for select high-use swing gate applications that require continuous-duty capability. It is designed for commercial entrances where the gate size, gate weight, hinge condition, post strength, arm geometry, power supply, safety-device layout, and access control requirements are within Genie specifications.
This is a commercial swing gate operator, not a slide gate operator, residential gate operator, garage door opener, barrier arm, keypad, loop detector, or safety device. The GCSW36V must be matched to the gate, site conditions, required entrapment protection, electrical service, arm clearance, and access control system before ordering.
Primary Use
- Commercial vehicular swing gate automation for select swing gate installations
- Applications requiring continuous-duty swing gate operation where the gate and site conditions are within Genie specifications
- Commercial gates up to 18 ft wide or 1500 lb where the gate weight and length chart confirms the application
- Sites requiring monitored safety inputs, battery backup, solar charge control, loop detector rack, auxiliary relays, and Genie Intellicode receiver support
- Primary/secondary dual swing gate applications where the second operator, communication method, and setup are confirmed
- Commercial access points such as gated communities, business entrances, industrial yards, controlled parking areas, and service drives where the gate is properly sized for the operator
Compatible With
Use the Genie GCSW36V only where the swing gate and installation site match the operator specifications. A published gate rating does not guarantee proper operation if the gate is sagging, dragging, binding, wind-loaded, poorly hinged, or installed with incorrect arm geometry.
- Select commercial vehicular swing gates up to 18 ft wide or 1500 lb where Genie installation requirements are met
- Commercial swing gate applications requiring 100% continuous-duty capability
- Applications using compatible Genie 315/390 MHz Intellicode transmitters where programmed to the onboard receiver
- Installations requiring monitored photo eyes, monitored safety edges, or other approved UL325 entrapment-protection devices
- Applications using pluggable loop detectors where the detector type and rack compatibility are confirmed
- Solar-capable installations where the solar panel, battery capacity, accessory draw, sun exposure, and daily cycles are properly matched
- Aladdin Connect applications where the optional compatible Wi-Fi board is added and the site has suitable network coverage
- Dual swing gate applications only where the primary/secondary setup is supported and installed according to Genie documentation
Features and Specifications
| Specification | Details |
| Brand | Genie |
| Model | GCSW36V |
| Product Type | Commercial vehicular swing gate operator |
| Gate Type | Commercial swing gate |
| Operator Style | Commercial articulated-arm swing gate operator |
| Maximum Gate Rating | Up to 18 ft wide or 1500 lb where the gate and installation conditions meet Genie specifications |
| Gate Weight / Length Chart | 1500 lb at 10 ft, 1200 lb at 12 ft, 1000 lb at 14 ft, 800 lb at 16 ft, and 600 lb at 18 ft where site conditions allow |
| Duty Cycle | 100% continuous duty |
| Motor | 36V brushless DC motor |
| Drive Design | Direct drive motor to dual gearboxes with worm-in-oil-bath reduction |
| Primary Power | 115VAC, field adjustable to 230VAC where installed according to Genie documentation |
| Battery Backup | Battery backup supported; two 12V 7Ah batteries are listed with the operator |
| Battery Backup Cycles | Up to 150 cycles on fully charged batteries, depending on gate condition, accessory load, temperature, and battery condition |
| Optional Battery Upgrade | 33Ah batteries may be supported as an option where installed according to Genie documentation |
| Solar Support | Onboard solar charge controller; solar panel and sizing should be confirmed separately |
| Radio Receiver | Advanced 315/390 MHz Genie Intellicode receiver with storage for up to 250 transmitters |
| Accessory Power | 24VDC switched and constant accessory power, up to 800mA combined where specified |
| Safety Inputs | Four monitored safety inputs for approved entrapment-protection devices |
| Loop Detector Support | Rack for pluggable loop detectors where compatible detectors are used |
| Auxiliary Relays | Two auxiliary relays, configurable from the LCD interface where supported |
| Control Interface | Dual-line backlit LCD display with adjustable settings |
| Speed Control | Adjustable speed where configured through the operator controls |
| Limit System | Electro-mechanical limits designed to stay synced through power loss |
| Manual Release | Adjustable clutch hub with manual release lever |
| Service Access | Split cover allows access to the operator without removing the arm |
| Timed Functions | Timer-to-close and built-in 7-day timer where configured |
| Dual Gate Function | Primary/secondary control for supported dual swing gate applications |
| Smart Control | Aladdin Connect ready with optional compatible Wi-Fi board |
| Temperature Range | -20 degrees C to +60 degrees C; optional heater may support down to -40 degrees C where specified |
| UL Listing | UL325 listed for Class I, II, III, and IV applications where installed as required |
| Warranty | 5 year warranty listed by Genie; confirm warranty terms for the specific sales channel |

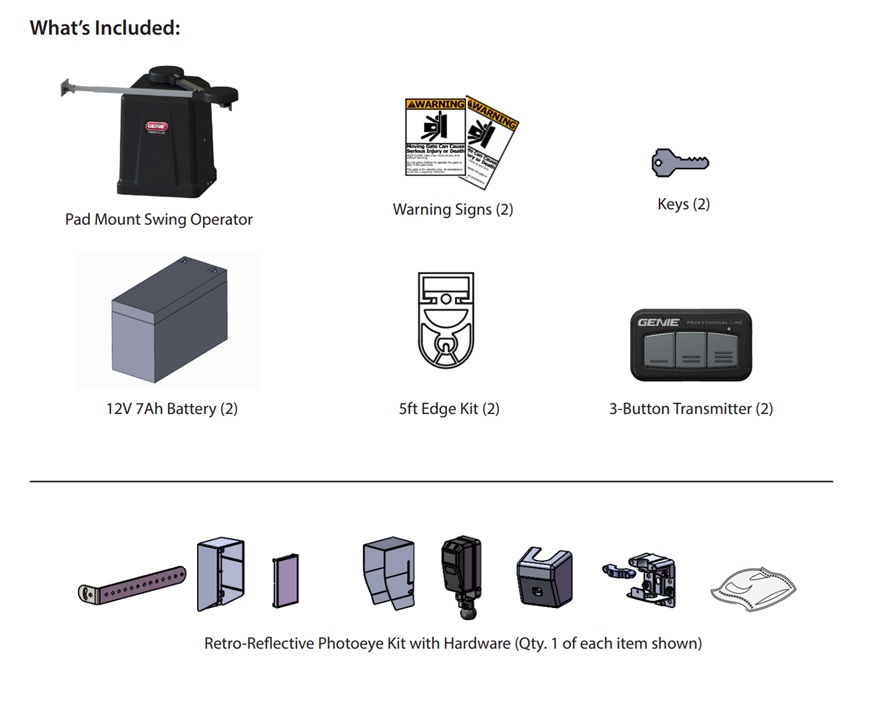

Typical Package Content Notes
Package contents can vary by supplier SKU and production version. Confirm the current package before ordering, especially if the installation needs monitored safety devices, loop detectors, remotes, arm components, post mounting hardware, solar equipment, heater kit, vehicle detection, or access control accessories.
- Commercial swing gate operator chassis and cover assembly, where included by the supplier package
- 36V operator drive system and factory control electronics, where factory-installed
- Operator arm components, where included by the supplier package
- Two 12V 7Ah batteries are listed with the operator
- Remote transmitters, monitored photo eyes, monitored safety edges, loop detectors, post mounting kit, warning signs, and installation hardware should be confirmed before ordering
- Optional heater kit, solar panel kits, 33Ah batteries, wireless primary/secondary link, post mounting kit, and Aladdin Connect Wi-Fi board are not assumed included unless specifically listed
Important Comparison With Similar Genie Gate Operators
Genie commercial and residential gate operators may share similar control features, but the duty rating, motor system, gate capacity, and intended application can be different. Confirm the exact gate type and operator model before ordering.
- GCSW36V: Commercial vehicular swing gate operator for select commercial swing gates up to 18 ft or 1500 lb where specifications are met.
- GCSL36V: Commercial vehicular slide gate operator. This is for slide gates, not swing gates.
- GRSW24V: Residential swing gate operator rated for lighter residential applications. This is not the same as the commercial GCSW36V.
- GLA24V: Residential linear actuator swing gate operator. This is a different swing gate operator style and not the same commercial model.
- GRSL24V: Residential slide gate operator. This is not for swing gates.
- Dual GCSW36V setup: Primary/secondary control may be supported, but a dual swing gate job may require a second operator and the correct communication method. Do not assume one operator moves two independent gate leaves.
- Aladdin Connect Wi-Fi board: Optional accessory for smart control readiness. It is not included unless the package specifically lists it.
- Safety photo eyes and edges: Required monitored entrapment-protection devices are separate safety components unless specifically included in the package.
Also Known As / Related Part Numbers
- GCSW36V
- Genie GCSW36V
- Genie GCSW36V commercial swing gate operator
- Genie commercial vehicular swing gate operator
- Genie 36V commercial swing gate operator
- Genie 36V brushless DC swing gate operator
- Genie continuous-duty swing gate operator
- Commercial Swing Gate Operator
- Commercial Vehicular Swing Gate Operator
- OPGCSW36V - supplier-style item number commonly associated with Genie GCSW36V packages; verify before cross-referencing
- GCSL36V - related Genie commercial slide gate operator, not for swing gates
- GRSW24V - related Genie residential swing gate operator, not the same commercial model
- GLA24V - related Genie residential swing gate operator, not the same commercial model
- GRSL24V - related Genie residential slide gate operator, not for swing gates
Technician Notes
- Check the swing gate before selecting the operator. A gate that sags, drags, binds, flexes, or has worn hinges can overload even a commercial operator.
- Use the gate weight and length chart instead of only the maximum 1500 lb rating. Longer gates have lower allowable weight ratings.
- Inspect hinge condition, gate stops, post strength, arm clearance, mounting surface, opening angle, and gate frame condition before installation.
- Do not overlook wind load. A solid-panel swing gate can be harder on the operator than an open-frame gate of similar weight.
- Plan monitored entrapment protection before installation. Commercial swing gates can create open and close direction entrapment zones that require proper monitored photo eyes and safety edges.
- Confirm loop detector needs before ordering. The operator includes a rack for pluggable loop detectors, but detector modules, loops, and loop wire should be confirmed separately.
- Battery backup performance depends on gate condition, battery age, accessory load, temperature, and the number of cycles during an outage.
- For solar installations, size solar panels and batteries based on daily traffic, accessory current draw, sun exposure, shade, and recovery time. The onboard solar charge controller does not make every commercial site suitable for solar by itself.
- For primary/secondary swing gates, confirm whether the job requires a second operator, wireless primary/secondary link, wired communication, and proper programming.
- Do not bypass monitored safety devices, loop detector logic, fuses, grounding, limits, clutch settings, or operator protections to force the gate to run.
Before Ordering Checklist
- Confirm the exact model is Genie GCSW36V.
- Confirm the application is a commercial swing gate, not a slide gate or residential swing gate.
- Confirm the gate is within the 18 ft and 1500 lb maximum rating and within the proper weight and length chart.
- Confirm the gate swings freely by hand and is not dragging, binding, sagging, or wind-loaded beyond the operator rating.
- Inspect hinge condition, gate stops, post strength, opening angle, arm clearance, mounting surface, and operator pad or post mounting requirements.
- Confirm the installation requires continuous-duty commercial performance.
- Confirm line voltage requirements, including 115VAC or field-adjusted 230VAC setup by a qualified installer.
- Confirm required monitored photo eyes, safety edges, warning signs, and other UL325 safety devices for the complete swing gate layout.
- Confirm whether the package includes batteries, remotes, arm components, post mounting kit, monitored safety devices, loop detectors, keys, warning signs, and installation hardware.
- Confirm whether optional items such as Aladdin Connect Wi-Fi, solar panel kits, heater kit, 33Ah batteries, wireless primary/secondary link, post mounting kit, keypad, receiver, exit loop, or vehicle detector are needed.
- Confirm whether a primary/secondary dual-swing setup requires a second operator and additional wiring or accessories.
Professional Advisory
A commercial swing gate operator installation involves a heavy moving gate, pinch points, monitored safety devices, high-voltage line power, low-voltage controls, batteries, solar charging, loop detectors, arm geometry, limit setup, clutch adjustment, radio programming, and possible access control or fire access wiring. Installation should be performed by a qualified gate operator technician, especially where the gate is heavy, high-cycle, wind-loaded, dual-swing, damaged, or connected to access control, vehicle detection, fire access, or safety equipment. Do not bypass monitored photo eyes, safety edges, inherent entrapment protection, warning devices, loop detector protections, fuses, grounding, limits, or operator control safeguards.
Product Q&A
What type of gate is the Genie GCSW36V made for?
The Genie GCSW36V is made for select commercial vehicular swing gates. It should be installed only where the gate length, gate weight, hinge condition, post strength, arm geometry, and safety-device layout match Genie specifications.
What size gate can the Genie GCSW36V operate?
The GCSW36V is rated for swing gates up to 18 ft wide or 1500 lb where the gate is properly built, hinged, and free-moving. The allowed weight drops as gate length increases, so the weight and length chart should be checked before ordering.
Is the Genie GCSW36V the same as the Genie GRSW24V?
No. GCSW36V is the commercial 36V swing gate operator, while GRSW24V is the residential 24V swing gate operator. The correct model depends on gate size, duty requirement, site use, and installation specifications.
Is the Genie GCSW36V for slide gates?
No. The GCSW36V is a swing gate operator. For Genie commercial slide gate applications, compare against the GCSL36V where the gate type, weight, length, and duty requirement match.
Does the Genie GCSW36V include battery backup?
Yes. The GCSW36V supports battery backup and is listed with two 12V 7Ah batteries. Backup performance depends on battery condition, gate condition, accessory load, temperature, and the number of cycles during an outage.
Does the Genie GCSW36V work with Aladdin Connect?
The GCSW36V is Aladdin Connect ready when the compatible optional Wi-Fi board is added. Do not assume Wi-Fi control is included with the operator unless the package contents specifically list the Wi-Fi board.
What safety devices are needed with the Genie GCSW36V?
The GCSW36V has four monitored safety inputs and must be installed with the required entrapment-protection devices for the swing gate layout. Photo eyes, safety edges, warning signs, and other required safety devices should not be bypassed or omitted.
