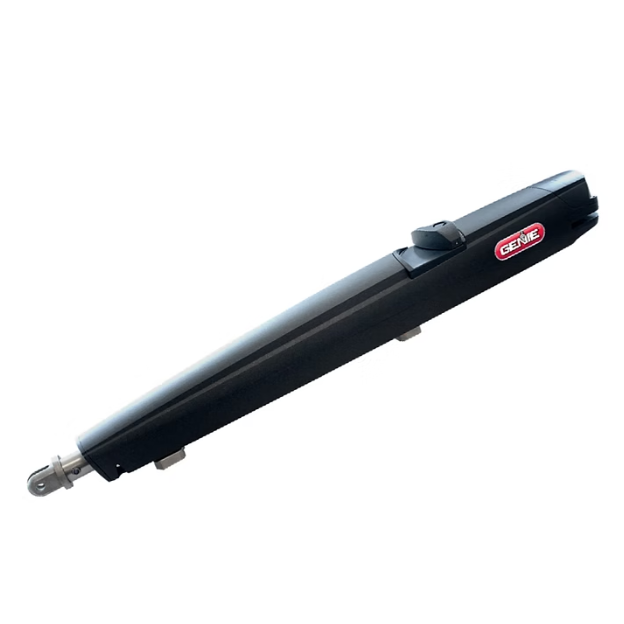

Genie GLA24V Residential Linear Actuator Swing Gate Operator Single Kit
The Genie GLA24V is a residential vehicular swing gate operator designed around a linear actuator arm for single swing gate applications. It is used on select residential gates where the gate leaf, hinge condition, post layout, duty cycle, and safety-device setup are within Genie installation specifications.
This is a swing gate operator kit, not a universal actuator for every residential gate. The GLA24V must be matched to the gate size, gate weight, gate swing direction, mounting geometry, power source, safety requirements, and accessory needs before ordering. For dual swing gate installations, confirm whether a secondary arm and dual-gate setup components are required.
Primary Use
- Residential vehicular swing gate automation for single gate leaf applications
- Linear actuator style operation for select pull-to-open installations where mounting geometry allows
- Residential gates up to 16 ft wide or 850 lb where the gate condition and installation measurements meet Genie specifications
- Applications requiring battery backup, monitored safety inputs, onboard solar charge controller, and Genie Intellicode radio control
- Installations where a future secondary arm may be added, where Genie documentation supports the configuration
Compatible With
Use the Genie GLA24V only where the gate and installation site match the operator specifications. Gate length and weight ratings do not guarantee proper operation if the gate is dragging, poorly balanced, misaligned, binding, wind-loaded, or installed with the wrong geometry.
- Select residential swing gates up to 16 ft wide or 850 lb where Genie installation dimensions confirm fitment
- Single swing gate applications where one linear actuator arm is required
- Residential vehicular gate applications with up to 150 cycles per day where the duty cycle is within specification
- Installations using compatible Genie 315/390 MHz Intellicode transmitters where programmed to the onboard receiver
- Applications requiring monitored safety photo eyes, monitored safety edges, or other approved UL325 entrapment-protection devices
- Solar-capable installations where the solar panel, battery capacity, sun exposure, and accessory load are properly matched
- Aladdin Connect applications where the optional compatible Wi-Fi board is added and the site has suitable network coverage
Features and Specifications
| Specification | Details |
| Brand | Genie |
| Model | GLA24V |
| Product Type | Residential vehicular swing gate operator single kit |
| Operator Style | Linear actuator swing gate operator |
| Gate Type | Residential vehicular swing gate |
| Maximum Gate Rating | Up to 16 ft wide or 850 lb where the gate and installation conditions meet Genie specifications |
| Daily Cycle Rating | Up to 150 cycles per day |
| Duty Cycle | 50% |
| Motor | 24VDC motor |
| Primary Power | 115VAC, field adjustable to 230VAC where installed according to Genie documentation |
| Battery Backup | Battery backup supported; two 12V 7Ah batteries are commonly listed with the kit |
| Battery Backup Cycles | Up to 250 cycles on fully charged batteries, depending on gate condition, accessory load, temperature, and battery condition |
| Solar Support | Onboard solar charge controller; solar panel and sizing should be confirmed separately |
| Radio Receiver | Advanced 315/390 MHz Genie Intellicode receiver with storage for up to 250 transmitters |
| Accessory Power | 24VDC switched and constant accessory power, up to 800mA combined where specified |
| Safety Inputs | Four monitored safety inputs for approved entrapment-protection devices |
| Auxiliary Relays | Two auxiliary relays, configurable from the LCD interface where supported |
| Control Interface | Dual-line backlit LCD display with adjustable settings |
| Timed Functions | Timer-to-close, built-in 7-day timer, and adjustable bi-parting delay where configured |
| Smart Control | Aladdin Connect ready with optional compatible Wi-Fi board |
| Construction | Cast aluminum upper and lower body with stainless steel extension tube |
| Manual Release | Keyed release lever for manual operation |
| Temperature Range | -20 degrees C to +60 degrees C where specified |
| UL Listing | UL325 listed for Class I, II, and III applications where installed as required |
Typical Single Kit Contents
Package contents can vary by supplier SKU and production version. Confirm the current kit contents before ordering, especially if the installation needs additional safety devices, brackets, wire, solar equipment, or secondary gate hardware.
- Control box, where included with the single kit
- One gate actuator arm, where included with the single kit
- Gate bracket and post bracket, where included
- Two 12V 7Ah batteries, commonly listed with the GLA24V kit
- Two remote transmitters, where included by the supplier package
- Warning signs, keys, and actuator mounting hardware, where included
- Retro-reflective photo eye kit may be included with some single kit listings; verify package contents before publishing or ordering
Important Comparison With Similar Genie Gate Operators
Genie offers more than one 24V residential gate operator. Match the gate type and operator style before ordering.
- GLA24V: Linear actuator residential swing gate operator. This is the model for select residential swing gates where an actuator-arm setup is required.
- GRSW24V: Residential swing gate operator in a different arm/operator style. It should not be treated as the same as the GLA24V linear actuator.
- GRSL24V: Residential slide gate operator. This is for slide gates, not swing gates.
- Dual GLA24V setup: A dual swing gate installation requires additional operator/secondary-arm components and correct primary/secondary programming. Do not assume a single kit operates two leaves.
- Aladdin Connect Wi-Fi board: Optional accessory for smart control readiness. It is not the same as the gate operator kit unless specifically included.
- Solar panel kit: The operator has an onboard solar charge controller, but the solar panel and sizing should be confirmed separately.
- Safety photo eyes and edges: Required monitored entrapment protection devices are separate safety components unless specifically included in the kit.
Also Known As / Related Part Numbers
- GLA24V
- Genie GLA24V
- Genie GLA24V single kit
- Genie GLA24V residential swing gate operator
- Genie residential vehicular swing gate operator
- Genie linear actuator gate operator
- Genie 24VDC swing gate actuator operator
- Genie GLA24V linear actuator swing gate opener
- Residential Swing Gate Operator - Single Kit
- GEN-OPGLA24VPKG1 - supplier-style SKU sometimes used for a Genie GLA24V package, verify before cross-referencing
- GRSW24V - related Genie residential swing gate operator, not the same linear actuator model
- GRSL24V - related Genie residential slide gate operator, not for swing gates
Technician Notes
- Check the gate before sizing the operator. A gate that drags, sags, binds, flexes, or has worn hinges can overload an operator even when it is under the published weight rating.
- Confirm the gate length, gate weight, hinge offset, post position, opening angle, and actuator mounting dimensions before ordering.
- Confirm pull-to-open versus push-to-open requirements. Some applications may require a separate push-open bracket or different geometry.
- Do not overlook wind load. A light gate with solid panels can be harder on an actuator than a heavier open-frame gate.
- Confirm monitored safety devices before installation. UL325 swing gate installations require proper entrapment protection based on the gate layout and risk zones.
- Battery backup performance depends on battery age, charge level, accessory load, temperature, gate condition, and cycle frequency.
- For solar installations, size the solar panel and batteries based on daily cycles, accessory draw, shade, local weather, and recovery time. Do not assume the onboard solar charge controller alone makes every installation solar-ready.
- For dual gates, confirm the secondary actuator, motor cable, and primary/secondary setup before ordering. A single kit should not be assumed to run both gate leaves.
Before Ordering Checklist
- Confirm the exact model is Genie GLA24V.
- Confirm the application is a residential swing gate, not a slide gate.
- Confirm the gate leaf is within the 16 ft or 850 lb rating and that the gate moves freely by hand.
- Confirm the daily cycle requirement is within the 150 cycles per day rating.
- Confirm the installation geometry, hinge offset, post type, opening angle, and actuator mounting points match Genie requirements.
- Confirm whether the gate is pull-to-open or push-to-open and whether an additional bracket is needed.
- Confirm line voltage requirements, including 115VAC or field-adjusted 230VAC setup by a qualified installer.
- Confirm required monitored photo eyes, safety edges, warning signs, and other UL325 safety devices for the specific gate layout.
- Confirm whether the kit includes batteries, remotes, photo eye kit, brackets, keys, signs, and installation hardware.
- Confirm whether optional items such as Aladdin Connect Wi-Fi, solar panel, keypad, exit loop, vehicle sensor, receiver, or secondary arm are needed.
Professional Advisory
A swing gate operator installation involves moving gate panels, pinch points, monitored safety devices, high-voltage line power, low-voltage controls, batteries, solar charging, radio programming, and possible access control wiring. Installation should be performed by a qualified gate operator technician, especially where the gate is heavy, wind-loaded, dual-leaf, damaged, or connected to access control, fire access, vehicle detection, or safety equipment. Do not bypass monitored photo eyes, safety edges, inherent entrapment protection, warning devices, fuses, grounding, or operator control protections.
Product Q&A
What type of gate is the Genie GLA24V made for?
The Genie GLA24V is made for select residential vehicular swing gates. It uses a linear actuator arm and should be installed only where the gate size, gate weight, hinge condition, mounting geometry, and safety-device layout match Genie specifications.
What size gate can the Genie GLA24V operate?
The GLA24V is rated for swing gate leaves up to 16 ft wide or 850 lb where the gate is properly built, balanced, and free-moving. Wind load, hinge drag, poor alignment, and incorrect geometry can reduce real-world performance.
Is this Genie GLA24V listing for a single gate or dual gate?
This listing is for a single kit. It should be treated as a one-leaf swing gate operator package unless the supplier specifically states that dual-gate components are included. Dual gates require the proper secondary actuator setup.
Does the Genie GLA24V include battery backup?
Yes. The GLA24V supports battery backup and is commonly listed with two 12V 7Ah batteries. Battery backup runtime depends on battery condition, gate condition, accessory load, temperature, and the number of cycles during an outage.
Is the Genie GLA24V solar compatible?
The GLA24V includes an onboard solar charge controller, but the solar panel and battery sizing must be matched to the site. Shade, accessory load, daily cycles, and local weather can affect solar performance.
Does the Genie GLA24V work with Aladdin Connect?
The GLA24V is Aladdin Connect ready when the compatible optional Wi-Fi board is added. Do not assume Wi-Fi control is included with the base operator kit unless the package contents specifically list the Wi-Fi board.
What safety devices are needed with the Genie GLA24V?
The GLA24V has monitored safety inputs and must be installed with the required entrapment-protection devices for the gate layout. Photo eyes, safety edges, warning signs, and other safety devices should not be bypassed or omitted.
